DPA 4166-OC-F-C03-LE

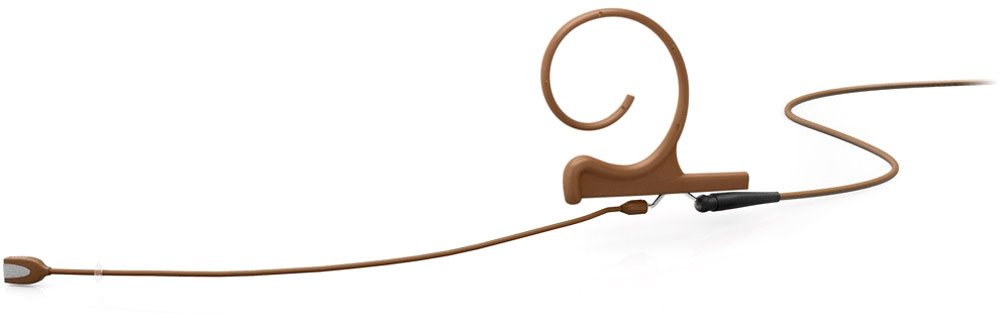

d:fine CORE 4166 Slim Omni Flex Earset Mic, 110 mm Boom, Brown, 3-pin LEMO
The 4166 Omnidirectional Headset Microphone combines the legendary sound of the 4066 Omnidirectional Capsule with a lightweight, flexible headset system.
Features
Pristine audio qualityLightweight and flexibleEasy mounting to the left or rightMinimal visual impactResistant to humidityFlexible adapter system fits most professional wireless systems
Specifications
4166 Omnidirectional Flex Headsets and EarsetsDirectional pattern: OmnidirectionalPrinciple of operation: PressureCartridge type: Pre-polarized condenserFrequency response: 20 Hz - 20 kHzEffective frequency range ±2 dB: 40 Hz - 20 kHz with 3 dB soft boost at 8 - 15 kHzSensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/PaEquivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)Distortion, THD < 1%: 134 dB SPL RMS, 137 dB SPL peakDynamic range: Typ. 111 dBMax. SPL, THD 10%: 144 dB SPL peakRated output impedance: From MicroDot: 30 - 40 ?. From DAD6001-BC: 100 ?Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR AdapterOutput balance principle: Signal balanced with DAD6001-BC XLR AdapterCommon mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR AdapterPower supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapterWith DAD6001-BC: P48 (Phantom Power). Will work from 12 VCurrent consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR AdapterConnector: 3-pin LEMOWeight: Microphone boom: 0.8 g (0.03 oz). Earhook: 1.1 g (0.04 oz). Cable: 6.6 g (0.23 oz). Total: 8.5 g (0.30 oz)Microphone diameter: 5.4 mm (0.21 in)Microphone length: Boom length: Normal: 120 mm (4.7 in), Medium: 100 mm (3.9 in)Cable length: 1.3 m (4.3 ft)Cable diameter: 1.6 mm (0.06 in)Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pinElectromagnetic compatibility (EMC): Fully compatibleTemperature range: -40C to 45C (-40F to 113F)Relative humidity (RH): Up to 90%Colors: Brown
