DPA 4166-OC-F-F34-LH

$977.00

Free shipping in Canada. Conditions

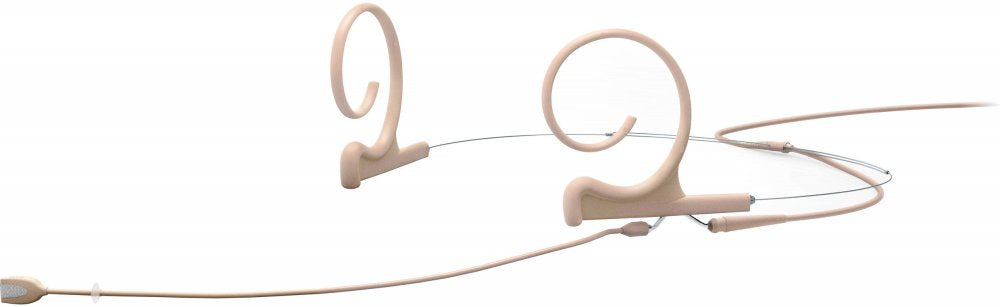

The d:fine Flex 4166 Omnidirectional Headset Microphone offers clean and transparent sound quality with lots of headroom. Beige, Mini-Jack included.



The 4166 combines the legendary sound of the 4066 headset microphone with a lightweight and flexible headset system, this condenser mic is easy and fast to adjust and offers clean and transparent sound quality with lots of headroom.

Features

  • Resistant to humidity
  • Double-vent protection system
  • Available in three colors and three sizes
  • Modular adapter system fits most professional wireless systems
  • Boom length is 110 mm (4.3 in) (the standard choice for most users)
  • Specifications

    Directional pattern: Omnidirectional
    Boom Length: Long (110 mm)
    Principle of operation: Pressure
    Cartridge type: Pre-polarized condenser
    Frequency range: 20 Hz - 20 kHz

    Frequency range, ±2 dB
    Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz.
    High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz

    Sensitivity, nominal, ±3 dB at 1 kHz:: 6 mV/Pa; -44 dB re. 1 V/Pa
    Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
    Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
    S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
    Total harmonic distortion (THD) - Legacy: < 1% THD up to 123 dB SPL peak, < 1% THD up to 120 dB SPL RMS sine
    Total harmonic distortion (THD) - CORE: < 1% THD up to 137 dB SPL peak
    Dynamic range - Legacy: Typ. 97 dB
    Dynamic range - CORE: Typ. 111 dB
    Max. SPL, peak before clipping: 144 dB
    Output impedance: 30 - 40
    Cable drive capability: Up to 300 m (984 ft)

    Power supply (for full performance)
    For wireless systems: Min. 5 V - max. 50 V through DPA adapter.
    With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance

    Connector: Mini-Jack
    Color: Beige
    Weight: 14 g (0.5 oz) incl. Cable and Connector
    Microphone diameter: 5.4 mm (0.21 in)
    Cable length: 1.2 m (3.9 ft)
    Cable diameter: 1.6 mm (0.06 in)
    Polarity Positively: increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range: -40°C to 45°C (-40°F to 113°F)
    Relative humidity: (RH) Up to 90%
    Manufacturer Part Number : 4066-OC-F-B34-LH
