DPA 4166-OP-F-B10-LE
4166 CORE+ Omni Flex Earset Mic, 110 mm Boom, Black, TA4F Mini-XLR

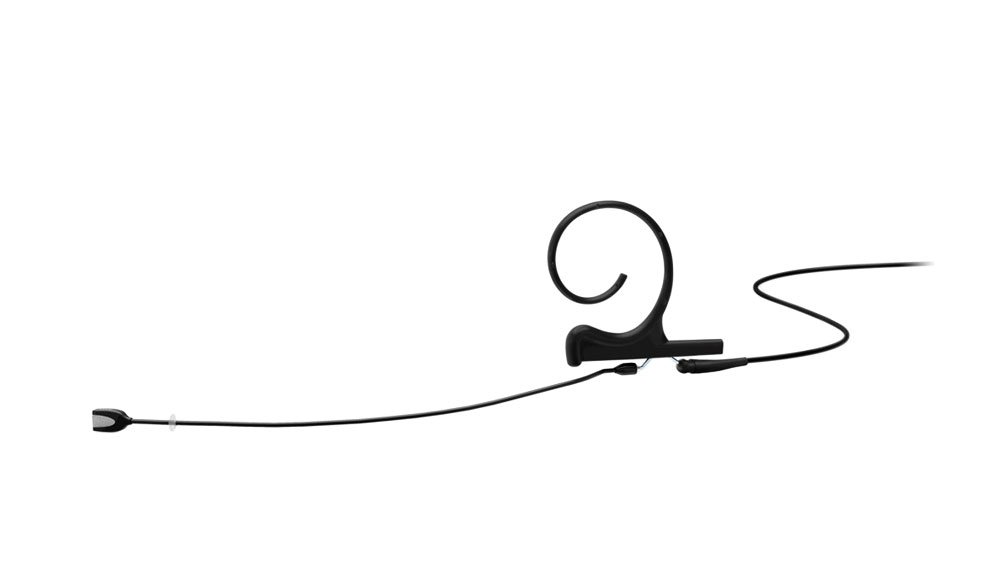

The DPA 4166 CORE+ Omnidirectional Flex Earset Microphone in black, with a 110 mm boom and TA4F Mini-XLR connector, is engineered for professionals who need discreet, reliable, and high-quality voice capture. Ideal for conferences, theater, worship services, and broadcast, this earset combines DPA's renowned 4060 capsule with a sleek, one-ear design that's lightweight, comfortable, and nearly invisible on stage or on camera.
Enhanced with CORE+ technology, the microphone offers ultra-low distortion and exceptional clarity across its full dynamic range. The omnidirectional pattern ensures natural and consistent voice pickup, even with movement, while the black finish provides a clean, unobtrusive look. The TA4F Mini-XLR connector ensures compatibility with a wide range of wireless systems, making this headset a flexible and professional-grade solution for demanding live environments.
Features
Omnidirectional Pickup Pattern: Delivers clear, natural voice capture from all directions, ideal for speech and vocals.CORE+ Audio Technology: Provides distortion-free sound with exceptional clarity and detail across all levels.Integrated 4060 Capsule: Shares the trusted sonic performance of DPA's legendary miniature condenser microphone.110 mm Boom Arm: Standard boom length ensures precise mic placement and stable positioning near the mouth.Sleek Black Finish: Discreet and professional appearance suitable for any stage or broadcast setting.TA4F Mini-XLR Connector: Compatible with wireless systems that use 4-pin Mini-XLR inputs.Lightweight and Flexible Design: Ergonomically shaped for comfort and adjustable to fit either ear securely.Quick Setup for Fast Applications: Ideal for conferences, live events, or any scenario needing rapid mic placement.Moisture and Sweat Resistant: Engineered for durability in active and high-humidity environments.Swappable Cable and Connector: Easily replace or adapt cables to suit different systems and user needs.
Specifications
General Specifications
Model: 4166 CORE PlusType: Omnidirectional Flex Earset MicrophoneBoom Length: 110 mmColor: BlackMounting Style: Single-ear Flex EarsetConnector: TA4F Mini-XLRCapsule Type: 4060 omnidirectional capsule
Audio Performance
Directional Pattern: OmnidirectionalPrinciple of Operation: PressureCartridge Type: Pre-polarized condenserFrequency Response: 20 Hz to 20 kHzEffective Frequency Range +/-2 dB: 40 Hz to 20 kHz with 3 dB soft boost at 8 to 15 kHzSensitivity: 6 mV/Pa, -44 dB re 1 V/PaEquivalent Noise Level A-weighted: Typically 26 dB(A), maximum 28 dB(A)Equivalent Noise Level ITU-R BS468-4: Typically 38 dB, maximum 40 dBDistortion THD less than 1 percent: 134 dB SPL RMS, 137 dB SPL peakMaximum SPL THD 10 percent: 144 dB SPL peakDynamic Range: Typically 111 dB
Electrical Characteristics
Output Impedance from MicroDot: 30 to 40 ohmsOutput Impedance with DAD6001-BC: 100 ohmsCable Drive Capability: Up to 300 meters with DAD6001-BC XLR adapterOutput Balance Principle: Signal balanced with DAD6001-BC XLR adapterCommon Mode Rejection Ratio: Greater than 60 dB from 50 Hz to 15 kHz with DAD6001-BCPower Supply via Adapter: Minimum 5 V, maximum 10 VPower Supply with DAD6001-BC: P48 phantom power, operational from 12 VCurrent Consumption: Typically 1.5 mA microphone only, 3.5 mA with DAD6001-BC
CORE Plus Technology
Distortion Reduction: Minimizes nonlinearities in membrane and electronicsAudio Fidelity: Enhanced clarity and sonic transparencyTHD Benchmark: Less than 0.5 percentCompatibility: Seamless integration with other DPA models
Physical Characteristics
Microphone Boom Weight: 0.8 gramsEarhook Weight: 1.1 gramsCable Weight: 6.6 gramsTotal Weight: 8.5 gramsMicrophone Diameter: 5.4 mmCable Length: 1.3 metersCable Diameter: 1.6 mm
Environmental
Operating Temperature Range: Minus 40 to 45 degrees CelsiusRelative Humidity: Up to 90 percentElectromagnetic Compatibility: Fully compliant
Application Suitability
Optimized for speech, presentations, broadcast, and theaterErgonomic, secure fit for single-ear mounting on left or right earClean visual profile with clear, natural soundCompatible with wireless systems using TA4F Mini-XLR connector
