DPA 4166-OP-F-B34-LE

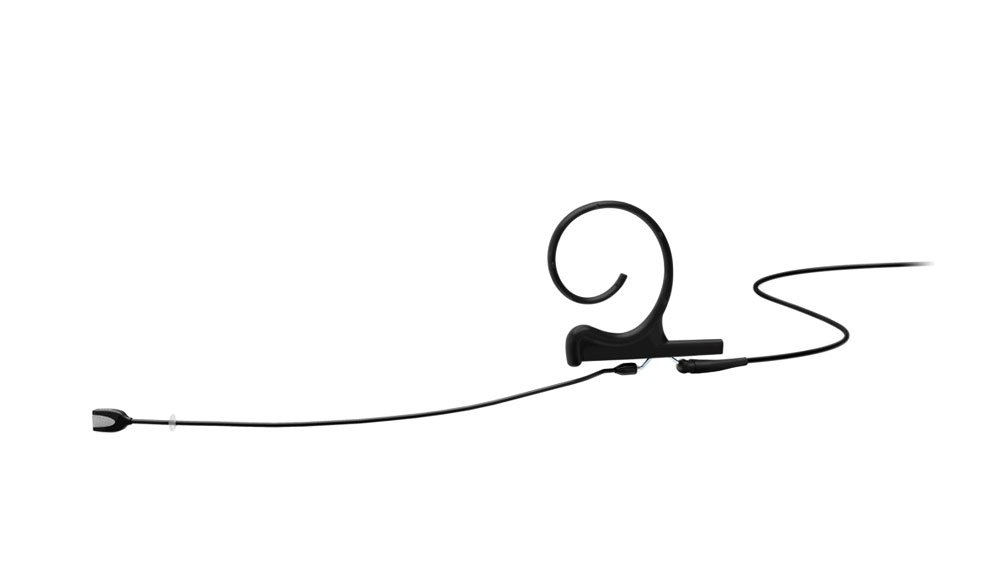

4166 CORE+ Omni Flex Earset Mic, 110 mm Boom, Black, Mini-Jack
The DPA 4166 CORE+ Omnidirectional Flex Earset Microphone in black, featuring a 110 mm boom and Mini-Jack connector, delivers pristine sound quality in a minimalist, one-ear design. Ideal for presentations, performances, and broadcast applications, it offers quick and secure fitting with a flexible, lightweight build that ensures long-wear comfort and subtle appearance on stage or on camera.
At its core is DPA's legendary 4060 capsule, now enhanced with CORE+ technology for even lower distortion and greater sonic accuracy. The omnidirectional pickup pattern provides smooth, natural voice reproduction with consistent capture, even during movement. The Mini-Jack connector offers broad compatibility with popular wireless systems, making this headset a practical, professional-grade solution for those who require dependable performance in a compact and unobtrusive form.
Features
Omnidirectional Sound Capture: Picks up voice naturally from all directions for clear, open audio.CORE+ Technology: Provides ultra-clean, low-distortion sound with excellent detail and transparency.4060 Capsule Integration: Delivers the trusted sonic quality of DPA's iconic miniature condenser mic.110 mm Boom Arm: Offers standard reach for consistent mic placement and clear sound pickup.Professional Black Finish: Discreet look suitable for live events, stage, and video use.Mini-Jack Connector: Compatible with wireless systems using locking 3.5 mm connectors.Comfortable and Flexible Fit: Lightweight earset adapts easily to either ear and different head sizes.Quick and Secure Setup: Designed for fast fitting in high-paced environments like conferences or theater.Resistant to Humidity: Built to perform reliably under sweat or moisture conditions.Modular Cable Design: Allows quick swapping of connectors or cables as needed.
Specifications
General Specifications
Model: 4166 CORE PlusType: Omnidirectional Flex Earset MicrophoneBoom Length: 110 mmColor: BlackMounting Style: Single-ear Flex EarsetConnector: Mini-JackCapsule Type: 4060 omnidirectional capsule
Audio Performance
Directional Pattern: OmnidirectionalPrinciple of Operation: PressureCartridge Type: Pre-polarized condenserFrequency Response: 20 Hz to 20 kHzEffective Frequency Range ±2 dB: 40 Hz to 20 kHz with 3 dB soft boost at 8 to 15 kHzSensitivity: 6 mV/Pa, -44 dB re 1 V/PaEquivalent Noise Level A-weighted: Typically 26 dB(A), maximum 28 dB(A)Equivalent Noise Level ITU-R BS468-4: Typically 38 dB, maximum 40 dBDistortion THD less than 1 percent: 134 dB SPL RMS, 137 dB SPL peakMaximum SPL THD 10 percent: 144 dB SPL peakDynamic Range: Typically 111 dB
Electrical Characteristics
Output Impedance from MicroDot: 30 to 40 ohmsOutput Impedance with DAD6001-BC: 100 ohmsCable Drive Capability: Up to 300 meters with DAD6001-BC XLR adapterOutput Balance Principle: Signal balanced with DAD6001-BC XLR adapterCommon Mode Rejection Ratio: Greater than 60 dB from 50 Hz to 15 kHz with DAD6001-BCPower Supply via Adapter: Minimum 5 V, maximum 10 VPower Supply with DAD6001-BC: P48 phantom power, operational from 12 VCurrent Consumption: Typically 1.5 mA microphone only, 3.5 mA with DAD6001-BC
CORE Plus Technology
Distortion Reduction: Eliminates nonlinearities in capsule and circuitryAudio Fidelity: Enhanced sonic transparency across dynamic rangeTHD Benchmark: Less than 0.5 percentCompatibility: Seamlessly integrates with existing DPA microphone systems
Physical Characteristics
Microphone Boom Weight: 0.8 gramsEarhook Weight: 1.1 gramsCable Weight: 6.6 gramsTotal Weight: 8.5 gramsMicrophone Diameter: 5.4 mmCable Length: 1.3 metersCable Diameter: 1.6 mm
Environmental
Operating Temperature Range: Minus 40 to 45 degrees CelsiusRelative Humidity: Up to 90 percentElectromagnetic Compatibility: Fully compliant
Application Suitability
Suitable for speech, broadcast, theater, and presentation useErgonomic design for secure left or right ear mountingMinimal visual footprint with superior clarityCompatible with wireless systems using mini-jack connectors
