DPA 4166-OP-F-C90-ME

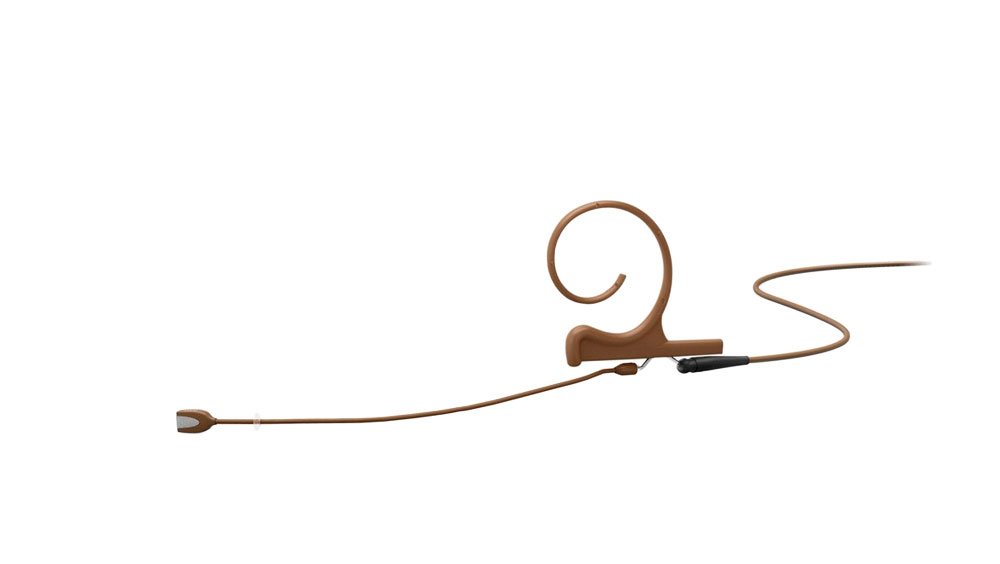

DPA Microphones 4166 CORE+ Slim Omnidirectional Flex Earset Microphone with 90mm Boom and MicroLock Connector (Brown)
The DPA 4166 CORE+ Slim Omnidirectional Flex Earset Microphone in brown, with a 90 mm boom and the innovative MicroLock connector, is a discreet, high-fidelity solution designed for professional spoken word and performance environments. Whether on stage, in broadcast, or at live events, this one-ear mic offers secure comfort and a natural visual blend against lighter skin tones.
Outfitted with DPA's trusted 4060 capsule and enhanced by CORE+ technology, the 4166 delivers low-distortion, crystal-clear audio with exceptional detail across the entire dynamic range. The 90 mm boom is ideal for smaller faces or closer miking needs, while the MicroLock connector ensures a reliable, secure fit with improved durability and full backward compatibility with MicroDot-based systems. Lightweight, humidity-resistant, and ergonomically designed, this mic is a go-to for professionals who require consistent, natural sound in a low-profile and robust format.
Features
Omnidirectional Pickup Pattern: Captures sound naturally from all directions for clear, open vocal reproduction.CORE+ Audio Technology: Provides clean, distortion-free sound with high detail and clarity at all volume levels.Slim 4060 Capsule Design: Trusted DPA sound in a compact, discreet housing for low-profile use.90 mm Boom Arm: Shorter boom ideal for tighter mic placement and smaller faces-subtle and precise.Brown Finish for Discreet Use: Blends naturally with skin tones, perfect for on-camera and stage visibility.MicroLock Connector: Compact and secure with a reliable locking system-backward compatible with MicroDot.Comfortable and Flexible Fit: Ergonomic earset design adjusts easily to fit either ear securely and comfortably.Sweat and Moisture Resistant: Engineered for reliable performance in active, high-humidity environments.Modular and Swappable Components: Cable and connector can be quickly changed for different wireless systems.Quick to Apply: Great for fast setups in live events, conferences, theater, and worship settings.
Specifications
General Specifications
Model: 4166 CORE PlusType: Slim Omnidirectional Flex Earset MicrophoneBoom Length: 90 mmColor: BrownMounting Style: Single-ear Flex EarsetConnector: MicroLockCapsule Type: 4060 omnidirectional capsule
Audio Performance
Directional Pattern: OmnidirectionalPrinciple of Operation: PressureCartridge Type: Pre-polarized condenserFrequency Response: 20 Hz to 20 kHzEffective Frequency Range +/-2 dB: 40 Hz to 20 kHz with 3 dB soft boost at 8 to 15 kHzSensitivity: 6 mV/Pa, -44 dB re 1 V/PaEquivalent Noise Level A-weighted: Typically 26 dB(A), maximum 28 dB(A)Equivalent Noise Level ITU-R BS468-4: Typically 38 dB, maximum 40 dBDistortion THD less than 1 percent: 134 dB SPL RMS, 137 dB SPL peakMaximum SPL THD 10 percent: 144 dB SPL peakDynamic Range: Typically 111 dB
Electrical Characteristics
Rated Output Impedance: 30 to 40 ohmsCable Drive Capability: Up to 300 meters with DAD6001-BC XLR adapterOutput Balance Principle: Signal balanced with DAD6001-BC XLR adapterCommon Mode Rejection Ratio: Greater than 60 dB from 50 Hz to 15 kHz with DAD6001-BCPower Supply via Adapter: Minimum 5 V, maximum 10 VPower Supply with DAD6001-BC: P48 phantom power, operational from 12 VCurrent Consumption: Typically 1.5 mA microphone only, 3.5 mA with DAD6001-BC
CORE Plus Technology
Distortion Elimination: Suppresses nonlinearities in capsule and electronicsAudio Fidelity: Improved clarity and sound detail across full dynamic rangeTHD Benchmark: Less than 0.5 percentCompatibility: Backward-compatible with legacy DPA equipment
MicroLock Connector
Locking Mechanism: Enhanced quick-lock systemMaterial: Rugged metal constructionSignal Performance: Optimized for robust and stable transmissionCompatibility: Fully compatible with existing MicroDot adapters
Physical Characteristics
Microphone Boom Weight: 0.8 gramsEarhook Weight: 1.1 gramsCable Weight: 6.6 gramsTotal Weight: 8.5 gramsMicrophone Diameter: 5.4 mmCable Length: 1.3 metersCable Diameter: 1.6 mm
Environmental
Operating Temperature Range: Minus 40 to 45 degrees CelsiusRelative Humidity: Up to 90 percentElectromagnetic Compatibility: Fully compliant
Application Suitability
Optimized for presentations, broadcast, theater, and worship environmentsLightweight and discreet with adjustable fit for either earDesigned for durability, reliability, and pristine vocal captureMicroLock connector ensures a secure and flexible interface for professional use
