DPA 4166-OP-F-F10-LE

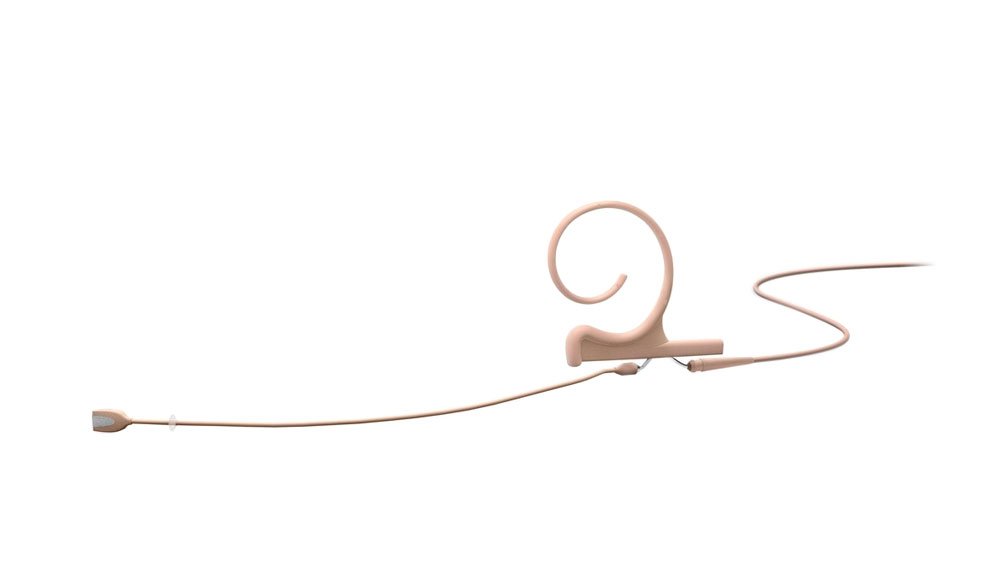

4166 CORE+ Omni Flex Earset Mic, 110 mm Boom, Beige, TA4F Mini-XLR
The DPA 4166 CORE+ Omnidirectional Flex Earset Microphone in beige, with a 110 mm boom and TA4F Mini-XLR connector, is a discreet, high-performance solution for professionals in live sound, broadcast, and theater. Designed for quick application and all-day comfort, its lightweight one-ear structure offers a secure fit with a natural, skin-toned finish for low visual impact on stage or camera.
Featuring DPA's trusted 4060 capsule and enhanced by CORE+ technology, this mic delivers remarkably low distortion and pristine clarity across its full dynamic range. The omnidirectional pattern ensures smooth, consistent voice pickup regardless of movement, making it ideal for dynamic speaking or performing. The TA4F Mini-XLR connector supports seamless integration with a wide range of wireless systems, offering reliability and versatility in even the most demanding environments.
Features
Omnidirectional Sound Pickup: Captures voice clearly and evenly from all directions for natural, open audio.CORE+ Technology: Delivers ultra-low distortion and crystal-clear sound with detailed fidelity.Renowned 4060 Capsule: Ensures high-quality audio performance trusted in professional environments.110 mm Boom Arm: Provides optimal mic positioning near the mouth for consistent clarity.Discreet Beige Finish: Designed to blend with skin tones for low visual impact on stage or camera.TA4F Mini-XLR Connector: Compatible with popular wireless systems using 4-pin Mini-XLR connections.Lightweight and Adjustable Fit: Flexible one-ear design fits securely and comfortably on either ear.Quick and Easy to Use: Ideal for fast setup in conferences, performances, and live productions.Moisture and Sweat Resistant: Built for reliability in high-humidity or active environments.Modular Cable System: Allows for quick swapping of cables and connectors as needed.
Specifications
General Specifications
Model: 4166 CORE PlusType: Omnidirectional Flex Earset MicrophoneBoom Length: 110 mmColor: BeigeMounting Style: Single-ear Flex EarsetConnector: TA4F Mini-XLRCapsule Type: 4060 omnidirectional capsule
Audio Performance
Directional Pattern: OmnidirectionalPrinciple of Operation: PressureCartridge Type: Pre-polarized condenserFrequency Response: 20 Hz to 20 kHzEffective Frequency Range +/-2 dB: 40 Hz to 20 kHz with 3 dB soft boost at 8 to 15 kHzSensitivity: 6 mV/Pa, -44 dB re 1 V/PaEquivalent Noise Level A-weighted: Typically 26 dB(A), maximum 28 dB(A)Equivalent Noise Level ITU-R BS468-4: Typically 38 dB, maximum 40 dBDistortion THD less than 1 percent: 134 dB SPL RMS, 137 dB SPL peakMaximum SPL THD 10 percent: 144 dB SPL peakDynamic Range: Typically 111 dB
Electrical Characteristics
Output Impedance from MicroDot: 30 to 40 ohmsOutput Impedance with DAD6001-BC: 100 ohmsCable Drive Capability: Up to 300 meters with DAD6001-BC XLR adapterOutput Balance Principle: Signal balanced with DAD6001-BC XLR adapterCommon Mode Rejection Ratio: Greater than 60 dB from 50 Hz to 15 kHz with DAD6001-BCPower Supply via Adapter: Minimum 5 V, maximum 10 VPower Supply with DAD6001-BC: P48 phantom power, operational from 12 VCurrent Consumption: Typically 1.5 mA microphone only, 3.5 mA with DAD6001-BC
CORE Plus Technology
Distortion Reduction: Minimizes nonlinearities in the capsule and electronicsAudio Fidelity: Superior clarity and transparency across the dynamic rangeTHD Benchmark: Less than 0.5 percentCompatibility: Seamless integration with legacy DPA models
Physical Characteristics
Microphone Boom Weight: 0.8 gramsEarhook Weight: 1.1 gramsCable Weight: 6.6 gramsTotal Weight: 8.5 gramsMicrophone Diameter: 5.4 mmCable Length: 1.3 metersCable Diameter: 1.6 mm
Environmental
Operating Temperature Range: Minus 40 to 45 degrees CelsiusRelative Humidity: Up to 90 percentElectromagnetic Compatibility: Fully compliant
Application Suitability
Optimized for broadcast, theater, presentations, and live speechSecure ergonomic fit for either earLow-profile design with clear, detailed audio captureCompatible with wireless systems using TA4F Mini-XLR connectors
