DPA 4188-DP-F-B03-LH
MPN #4188-DP-F-B03-LH
Cardioid headset mic with 120mm boom, dual-ear frame, CORE plus clarity, high SPL handling, IP58 moisture resistance, LEMO 3-pin, black finish

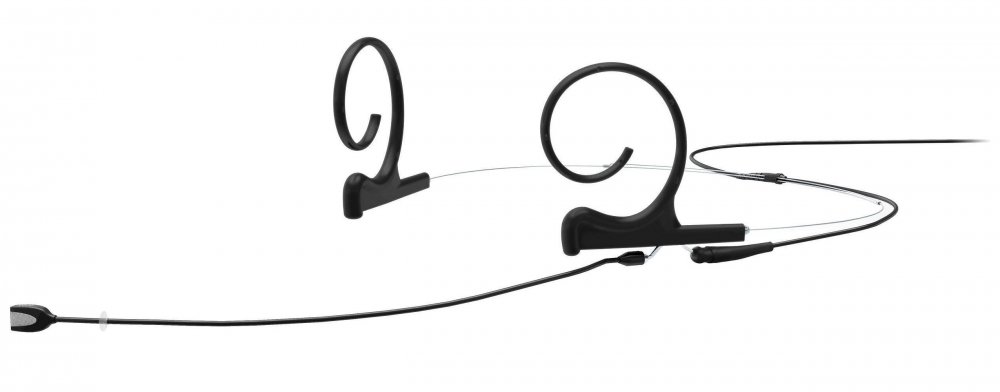

The DPA 4188 CORE+ Cardioid Flex Headset Microphone offers high-performance, broadcast-quality audio in an ultra-lightweight and discreet dual-ear design. Engineered for live presentations, stage productions, and broadcasting, this black headset features a 120mm boom and cardioid pickup pattern that focuses on the speaker's voice while minimizing ambient noise and feedback. With its slim profile and adjustable fit, it ensures comfort and security, even during long or active sessions.
Equipped with DPA's CORE+ technology, the 4188 delivers exceptional clarity and dynamic range, handling sound pressure levels up to 144 dB with virtually no distortion. The modular MicroLock connector with a LEMO 3-pin adapter ensures secure connectivity, and its IP58 rating and rugged Kevlar-reinforced cable make it reliable in challenging environments. Whether used in professional theater, live broadcast, or corporate presentations, this headset offers crystal-clear voice capture and seamless integration with popular wireless systems.
Features
Lightweight dual-ear headset for secure, all-day comfort during performances or presentationsCardioid pickup pattern for focused sound with minimal background noise and feedbackCORE+ technology delivers clean, distortion-free audio up to 137 dB SPL peakBuilt-in 3 dB boost for added clarity and vocal presence120mm interchangeable boom for flexible, precise mic positioningMoisture- and dust-resistant design with IP58 certificationMicroLock connector ensures a secure and durable connectionIncludes LEMO 3-pin adapter for Lectrosonics and compatible wireless systemsIdeal for broadcast, theater, corporate, or worship applications where sound quality and reliability matter
Specifications
Microphone Type
? Electret condenser
? Mono sound field
Polar Pattern
? Cardioid
Frequency Response
? 20 Hz to 29 kHz
? 100 Hz to 20 kHz ±2 dB near field
Sensitivity
? 6 mV per Pa
? Minus 44 dB
Dynamic Range
? 111 dB
Equivalent Noise Level
? 38 dB
Maximum SPL
? 144 dB
Soft Boost EQ
? 3 dB boost between 8 kHz and 15 kHz
Power Requirements
? 5 to 10 V bias or plug-in power
? 12 V phantom power
Connector
? LEMO 3-pin via DAD9003 MicroLock adapter
Cable
? Length: 4.3 feet or 1.3 meters
? Kevlar reinforced
Physical Dimensions
? Microphone diameter: 5.4 mm
? Boom length: 120 mm
? Weight: 8 grams
Color
? Black
Environmental Resistance
? IP58 water and dust resistant
Mounting System
? Dual-ear headset
? Adjustable earhooks
? Interchangeable boom arm
? Reversible left-right use
Compatibility
? Lectrosonics transmitters with 3-pin LEMO
? Also supports Sennheiser SK series and Wisycom MTP
Included Accessories
? DAD9003 MicroLock to LEMO 3-pin adapter
? Limited 2-year manufacturer warranty
