DPA 4188-DP-F-C03-LH

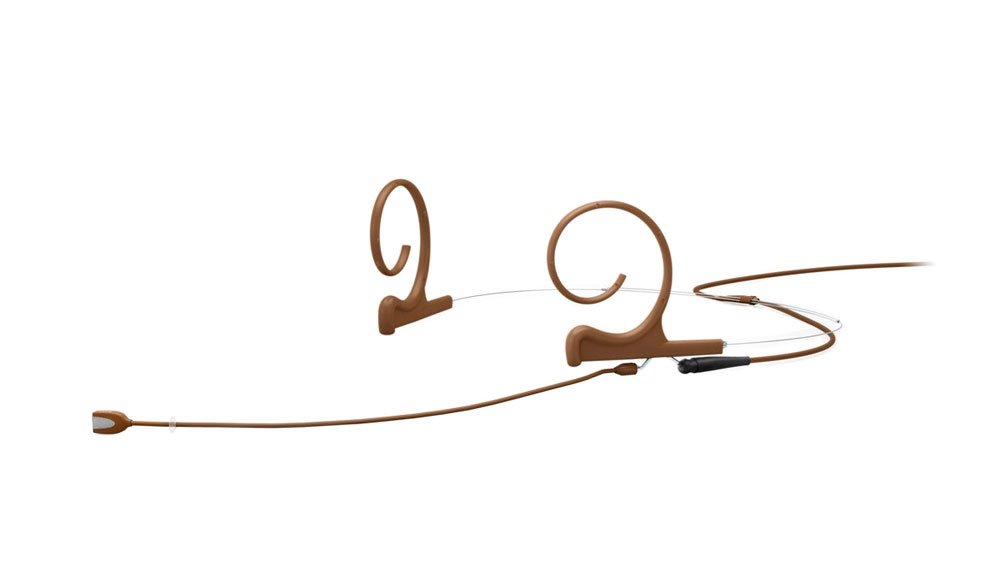

4188 CORE+ Directional Flex Headset Mic, 120 mm Boom, Brown, 3-pin LEMO
Designed for professional speech and performance applications, the DPA 4188 CORE+ Directional Flex Headset Microphone with a 120 mm boom, in brown with a 3-pin LEMO connector, offers superior sound quality in a discreet, one-ear design. Its natural tone and high intelligibility make it a top choice for presenters, actors, and broadcasters seeking a blend of comfort and reliability.
Powered by CORE+ technology, this headset delivers exceptionally low distortion and crystal-clear audio across the entire dynamic range. The cardioid pickup pattern ensures focused voice capture while minimizing background noise, making it perfect for use in live or high-pressure environments. The 3-pin LEMO connector provides robust compatibility with leading wireless systems, while the headset's moisture-resistant construction and subtle brown finish allow it to blend seamlessly into skin tones for low-visibility use on stage or on camera.
Features
Directional Cardioid Microphone: Focuses on the speaker's voice while reducing ambient noise, perfect for clear speech and vocals.CORE+ Technology for Clean Sound: Provides distortion-free audio with high detail and clarity, even at loud volumes.Discreet and Lightweight Design: Flexible one-ear fit with a low-profile brown finish for subtle visibility on stage or camera.Extended 120 mm Boom: Offers enhanced placement flexibility and stable mic positioning near the mouth.3-pin LEMO Connector: Compatible with a range of professional wireless systems using LEMO inputs.High SPL Capability: Suitable for demanding vocal performances without distortion or artifacts.Built for Tough Environments: Resistant to sweat and humidity for reliable performance during active use.Fully Adjustable Fit: Can be worn on either ear and easily shaped for personal comfort and security.
Specifications
General Specifications
Model: 4188 CORE PlusType: Directional Flex Headset MicrophoneBoom Length: 120 mmColor: BrownMounting Style: Single-ear Flex EarsetConnector: 3-pin LEMOCapsule Type: 4088 directional capsule
Audio Performance
Directional Pattern: CardioidPrinciple of Operation: Pressure gradientCartridge Type: Pre-polarized condenserFrequency Response: 20 Hz to 20 kHzSensitivity: 6 mV/Pa, -44 dB re 1 V/PaEquivalent Noise Level A-weighted: Typically 26 dB(A), maximum 28 dB(A)Equivalent Noise Level ITU-R BS468-4: Typically 38 dB, maximum 40 dBDistortion THD less than 1 percent: 134 dB SPL RMS, 137 dB SPL peakMaximum SPL THD 10 percent: 144 dB SPL peakDynamic Range: Typically 111 dB
Electrical Characteristics
Output Impedance from MicroDot: 30 to 40 ohmsOutput Impedance with DAD6001-BC: 100 ohmsCable Drive Capability: Up to 300 meters with DAD6001-BC XLR adapterOutput Balance Principle: Signal balanced with DAD6001-BC XLR adapterCommon Mode Rejection Ratio: Greater than 60 dB from 50 Hz to 15 kHz with DAD6001-BCPower Supply via Adapter: Minimum 5 V, maximum 10 VPower Supply with DAD6001-BC: P48 phantom power, operational from 12 VCurrent Consumption: Typically 1.5 mA microphone only, 3.5 mA with DAD6001-BC
CORE Plus Technology
Distortion Elimination: Reduces nonlinearities from membrane and electronicsAudio Fidelity: Enhanced clarity and transparency across dynamic rangeTHD Benchmark: Less than 0.5 percentCompatibility: Seamless operation with non-CORE Plus DPA microphones
Physical Characteristics
Microphone Boom Weight: 0.8 gramsEarhook Weight: 1.1 gramsCable Weight: 6.6 gramsTotal Weight: 8.5 gramsMicrophone Diameter: 5.4 mmCable Length: 1.3 metersCable Diameter: 1.6 mm
Environmental
Operating Temperature Range: Minus 40 to 45 degrees CelsiusRelative Humidity: Up to 90 percentElectromagnetic Compatibility: Fully compliant
Application Suitability
Optimized for professional speech and vocal performance applicationsLightweight, ergonomic, and discreet for long-duration wearMountable on either earCompatible with wireless systems using 3-pin LEMO connectors
