DPA 4288-DC-F-B90-LH

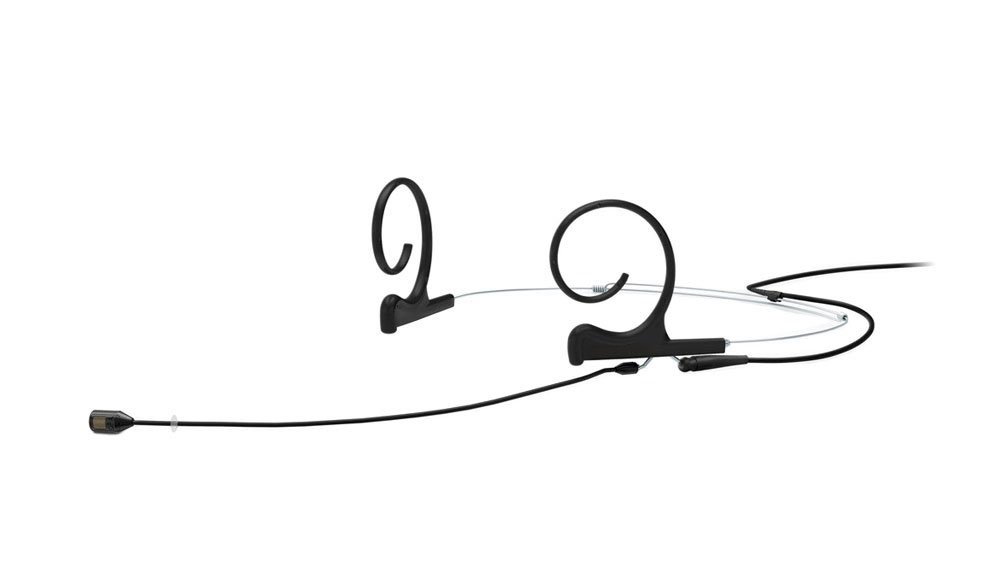

4288 CORE Directional Flex Headset Mic, 120 mm Boom, Black, MicroLock
Combining the legendary sound of the 4088 Directional Capsule with the lightweight single earset system, the 4288 is ideal for both spoken word and vocal performance applications. It offers accurate and natural voice intelligibility and very high-SPL capabilities " users can both speak and sing into the mic with no hint of distortion.
Features
Pristine audio qualityLightweight and flexibleEasy mounting to the left or rightMinimal visual impactResistant to humidityFlexible adapter system fits most professional wireless systems
Specifications
Directional pattern: Cardioid
Principle of operation: Pressure gradient
Cartridge type: Pre polarized condenser
Frequency response: 20 Hz to 20 kHz
Sensitivity nominal ±3 dB at 1 kHz: 6 mV per Pa -44 dB re 1 V per Pa
Equivalent noise level A weighted: Typically 26 dB A re 20 uPa maximum 28 dB A
Equivalent noise level ITU R BS468-4: Typically 38 dB maximum 40 dB
Distortion THD less than 1 percent: 134 dB SPL RMS 137 dB SPL peak
Dynamic range: Typically 111 dB
Max SPL THD 10 percent: 144 dB SPL peak
Rated output impedance: From DAD6001 BC 100 ohms
Cable drive capability: Up to 300 meters with DAD6001 BC XLR Adapter
Output balance principle: Signal balanced with DAD6001 BC XLR Adapter
Common mode rejection ratio CMRR: Greater than 60 dB from 50 Hz to 15 kHz with DAD6001 BC XLR Adapter
Power supply for full performance: For wireless systems minimum 5 V maximum 10 V through DPA adapter
With DAD6001 BC: P48 Phantom Power will work from 12 V
Current consumption: Typically 1.5 mA microphone 3.5 mA with DAD6001 BC XLR Adapter
Connector: MicroLock
Weight: Single Ear 10 g
Microphone diameter: 5.4 mm
Microphone length: 12.7 mm
Cable length: 1.25 m
Cable diameter: 1.6 mm
Polarity: Positively increasing sound pressure produces positive going voltage at MicroDot pin
Temperature range: Minus 40 degrees Celsius to 45 degrees Celsius
Relative humidity RH: Up to 90 percent
Color: Black
