DPA 4466-OP-R-C10
MPN #4466-OC-R-C10
Omnidirectional dual-ear headset mic, 120mm boom, brown finish, TA4F Mini-XLR, CORE plus audio clarity, IP58 rated, lightweight fit, broadcast ready.
Ask ChatGPT

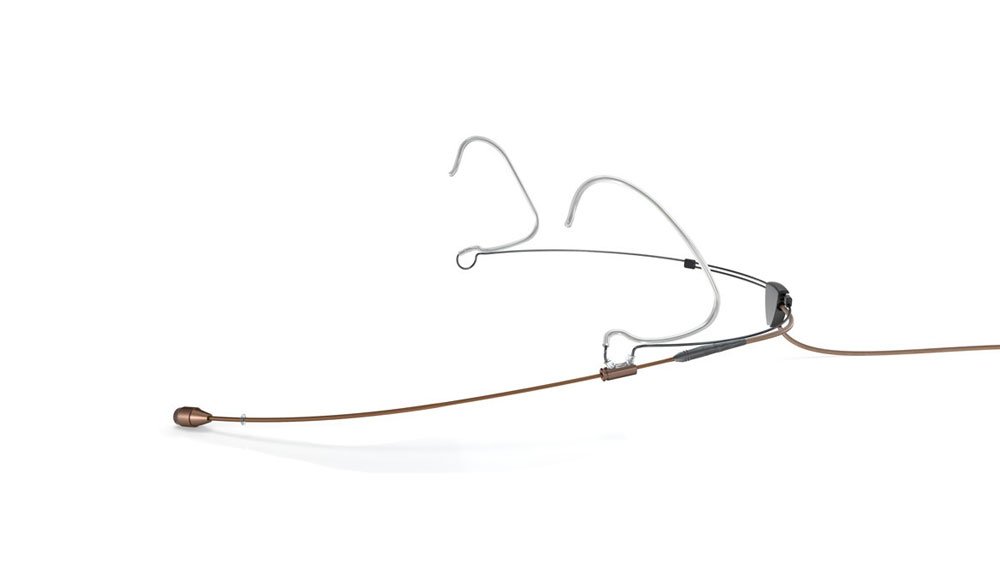

The DPA 4466-OP-R-C10 CORE+ Omnidirectional Headset Microphone in brown with a TA4F Mini-XLR connector is an elegant, performance-driven solution for high-stakes audio environments like broadcast, theater, conferences, and worship. Engineered with DPA's CORE+ technology, this headset delivers clean, transparent sound with an extended dynamic range and exceptional handling of high SPLs-up to 144 dB peak-without distortion.
Its ergonomic dual-ear design offers superior comfort and stability with a flexible, one-size-fits-all stainless steel frame that adjusts easily to different head shapes. The headset's discreet appearance is enhanced by its brown finish, blending naturally into most skin tones, while the boom arm is easily positioned for optimal vocal pickup. The TA4F Mini-XLR connector ensures secure, reliable compatibility with wireless transmitters, making this microphone ideal for professional users who require both flawless audio and visual subtlety.
Features
High-performance omnidirectional headset mic with rich, transparent soundCORE+ technology provides ultra-low distortion and extended dynamic rangeTA4F Mini-XLR connector for seamless integration with compatible wireless systemsFlexible, adjustable 120mm boom and one-size stainless steel headset frameSecure 3-point ear grip ensures stability during active useDiscreet brown finish ideal for on-camera or stage applicationsRugged, sweat- and moisture-resistant design with Kevlar-reinforced cableBuilt for demanding professional environments including theater, broadcast, and presentations
Specifications
General Specifications
Product ID: 4466-OP-R-C10Microphone type: Electret condenserDirectional pattern: OmnidirectionalOperating principle: PressureFrequency response: 20 Hz to 20 kHzEffective frequency range +/-2 dB: 40 Hz to 20 kHz with 3 dB soft boost at 8 to 20 kHzSensitivity (+/-3 dB at 1 kHz): 6 mV/Pa or -44 dB re 1 V/PaEquivalent noise level A-weighted: Typical 26 dB(A), maximum 28 dB(A)Equivalent noise level ITU-R BS.468-4: Typical 38 dB, maximum 40 dBTHD < 0.5%: 133 dB SPL RMS, 136 dB SPL peakTHD < 1%: 136 dB SPL RMS, 139 dB SPL peakMax SPL (10% THD): 144 dB SPL peakDynamic range: Typical 111 dBOutput impedance: 30 to 40 ohmConnector type: TA4F Mini-XLR via MicroLockCable length: 1.3 metersCable diameter: 1.6 mmCable drive capability: Up to 300 meters with DAD6001-BC adapterPower requirements (via DPA adapter): 5 to 10 V for wireless, 12 to 48 V PhantomCurrent consumption: 1.5 mA (microphone), 3.5 mA with adapterPolarity: Positive pressure produces positive voltage on MicroLock pinMicrophone diameter: 5.4 mmTotal weight including cable and connector: 12 gColor: Brown
Mechanical and Design Features
Frame: Stainless steel with PVD matte finish matching brown colorFit: One-size-fits-all, fully adjustable for head size and boom lengthBoom: 120 mm, detachable, repositionable left or rightBoom mechanics: Anti-rotation shape, locking slider, pivotable below the earEar grips: 3-point ergonomic support systemCable guide: Rear-mounted, 90 degree adjustable, slideableEnvironmental protection: IP58 ratedOperating temperature: -40 degree C to 45 degree CHumidity tolerance: Up to 90 percent
