DPA 4466-OP-R-C90
MPN #4466-OC-R-C90
Omnidirectional dual-ear headset mic, 120mm boom, brown finish, MicroLock connector, CORE plus clarity, moisture-resistant IP58, stable low-profile fit.

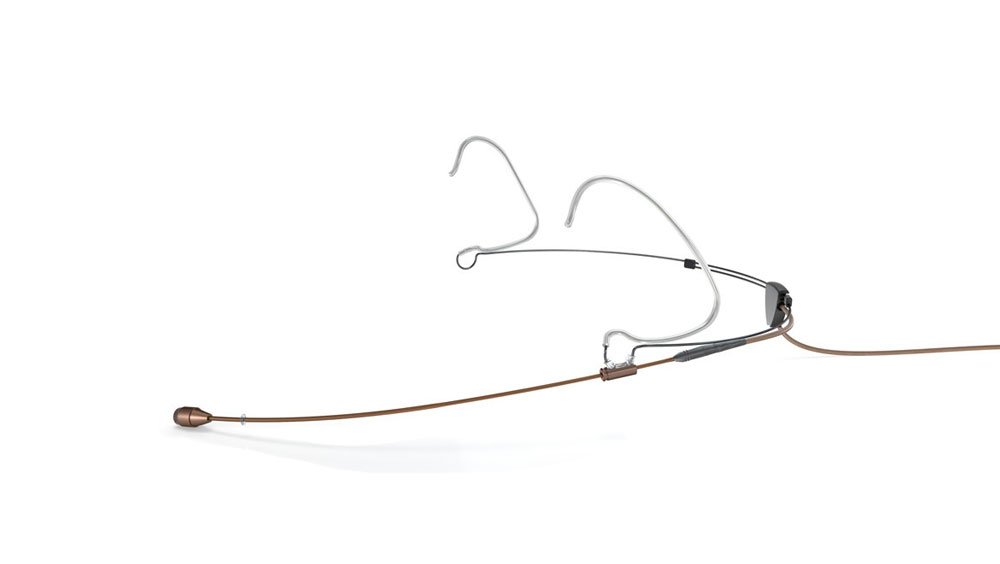

The DPA 4466-OP-R-C90 CORE+ Omnidirectional Headset Microphone in brown with a MicroLock connector is a premium headset designed for secure, high-quality audio in professional environments such as theater, broadcast, houses of worship, and live presentations. Featuring DPA's CORE+ technology, it delivers an extended dynamic range with minimal distortion, ensuring clear and natural voice reproduction-even at high sound pressure levels.
Its ergonomic dual-ear headset provides excellent stability and comfort, with an adjustable frame and boom arm that adapts easily to different users. The discreet brown finish blends seamlessly with skin tones for low visual impact on stage or camera. The robust MicroLock connector ensures a reliable connection, ideal for fast-paced live settings. With its precise design, comfortable fit, and outstanding sonic performance, this headset offers a refined solution for demanding vocal applications.
Features
Discreet omnidirectional headset mic with CORE+ technology for ultra-clear voice captureMicroLock connector offers secure, reliable connection for professional wireless systemsComfortable and adjustable headset with a flexible boom and three-point ear gripNatural-sounding response ideal for speech, theater, and broadcast useDurable PVD-coated frame and moisture-resistant construction for long-term wearBrown color for low-visibility fit in stage or on-camera applicationsDesigned for maximum clarity, comfort, and stability during extended performances
Specifications
General Specifications
Product ID: 4466-OP-R-C90Microphone type: Electret condenserDirectional pattern: OmnidirectionalOperating principle: PressureFrequency response: 20 Hz to 20 kHzEffective frequency range +/-2 dB: 40 Hz to 20 kHz with 3 dB soft boost at 8 to 20 kHzSensitivity (+/-3 dB at 1 kHz): 6 mV/Pa or -44 dB re 1 V/PaEquivalent noise level A-weighted: Typical 26 dB(A), maximum 28 dB(A)Equivalent noise level ITU-R BS.468-4: Typical 38 dB, maximum 40 dBTHD < 0.5%: 133 dB SPL RMS, 136 dB SPL peakTHD < 1%: 136 dB SPL RMS, 139 dB SPL peakMax SPL (10% THD): 144 dB SPL peakDynamic range: Typical 111 dBOutput impedance: 30 to 40 ohmConnector type: MicroLockCable length: 1.3 metersCable diameter: 1.6 mmCable drive capability: Up to 300 meters with appropriate DPA adapterPower requirements (via DPA adapter): 5 to 10 V for wireless, 12 to 48 V PhantomCurrent consumption: 1.5 mA (microphone), 3.5 mA with adapterPolarity: Positive pressure produces positive voltage on MicroLock pinMicrophone diameter: 5.4 mmTotal weight including cable and connector: 12 gColor: Brown
Mechanical and Design Features
Frame: Stainless steel with PVD matte finish matching brown colorFit: One-size-fits-all, fully adjustable for head size and boom lengthBoom: 120 mm, detachable, repositionable left or rightBoom mechanics: Anti-rotation shape, locking slider, pivotable below the earEar grips: 3-point ergonomic support systemCable guide: Rear-mounted, 90 degree adjustable, slideableEnvironmental protection: IP58 ratedOperating temperature: -40 degree C to 45 degree CHumidity tolerance: Up to 90 percent
