DPA 4466-OP-R-F10
MPN #4466-OC-R-F10
Omnidirectional dual-ear headset mic, 120mm boom, beige color, TA4F Mini-XLR connector, CORE plus clarity, moisture resistant, secure lightweight fit.

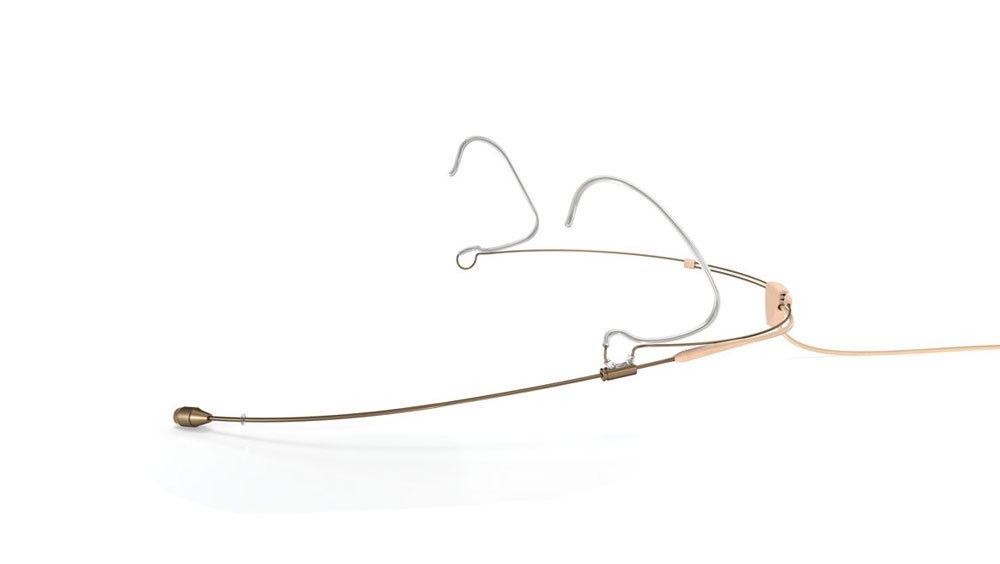

The DPA 4466-OP-R-F10 CORE+ Omnidirectional Headset Microphone in beige with a TA4F Mini-XLR connector delivers exceptional audio performance with a discreet profile, perfect for theater, live presentations, and broadcast environments. Designed to match lighter skin tones, its low-profile appearance pairs with a dual-ear, ergonomic frame for a secure and comfortable fit-ideal for extended wear in active settings.
Equipped with CORE+ technology, this microphone captures clean, transparent sound with a high dynamic range and minimal distortion, even at SPLs up to 144 dB. The omnidirectional 5 mm capsule ensures natural vocal clarity and smooth frequency response, while the rugged TA4F Mini-XLR connector ensures reliable integration with wireless systems. This model is a premium, durable solution for professionals demanding both sonic excellence and practical usability.
Features
Professional beige headset mic with CORE+ technology for clean, detailed sound captureTA4F Mini-XLR connector for seamless integration with Shure and compatible wireless systemsLightweight, adjustable frame with secure three-point grip for stable, all-day wearOmnidirectional pickup with subtle presence boost ensures natural, clear voice reproductionDesigned for demanding live, theater, broadcast, and presentation environmentsDurable, sweat-resistant construction with Kevlar-reinforced cable for reliability on stage
Specifications
General Specifications
Product ID: 4466-OP-R-F10Microphone type: Electret condenserDirectional pattern: OmnidirectionalOperating principle: PressureFrequency response: 20 Hz to 20 kHzEffective frequency range +/-2 dB: 40 Hz to 20 kHz with 3 dB soft boost at 8 to 20 kHzSensitivity (+/-3 dB at 1 kHz): 6 mV/Pa or -44 dB re 1 V/PaEquivalent noise level A-weighted: Typical 26 dB(A), maximum 28 dB(A)Equivalent noise level ITU-R BS.468-4: Typical 38 dB, maximum 40 dBTHD < 0.5%: 133 dB SPL RMS, 136 dB SPL peakTHD < 1%: 136 dB SPL RMS, 139 dB SPL peakMax SPL (10% THD): 144 dB SPL peakDynamic range: Typical 111 dBOutput impedance: 30 to 40 ohmConnector type: TA4F Mini-XLRCable length: 1.3 metersCable diameter: 1.6 mmCable drive capability: Up to 300 meters with appropriate DPA adapterPower requirements (via DPA adapter): 5 to 10 V for wireless, 12 to 48 V PhantomCurrent consumption: 1.5 mA (microphone), 3.5 mA with adapterPolarity: Positive pressure produces positive voltage on pin 2 of TA4FMicrophone diameter: 5.4 mmTotal weight including cable and connector: 12 gColor: Beige
Mechanical and Design Features
Frame: Stainless steel with PVD matte finish matching beige colorFit: One-size-fits-all, fully adjustable for head size and boom lengthBoom: 120 mm, detachable, repositionable left or rightBoom mechanics: Anti-rotation shape, locking slider, pivotable below the earEar grips: 3-point ergonomic support systemCable guide: Rear-mounted, 90 degree adjustable, slideableEnvironmental protection: IP58 ratedOperating temperature: -40 degree C to 45 degree CHumidity tolerance: Up to 90 percent
