DPA 4488-DP-R-B34
MPN #4466-DP-R-B34
Cardioid dual-ear headset mic, 5mm capsule, black finish, locking 3.5mm adapter, CORE plus clarity, 144 dB max SPL, adjustable boom, Sennheiser compatible.

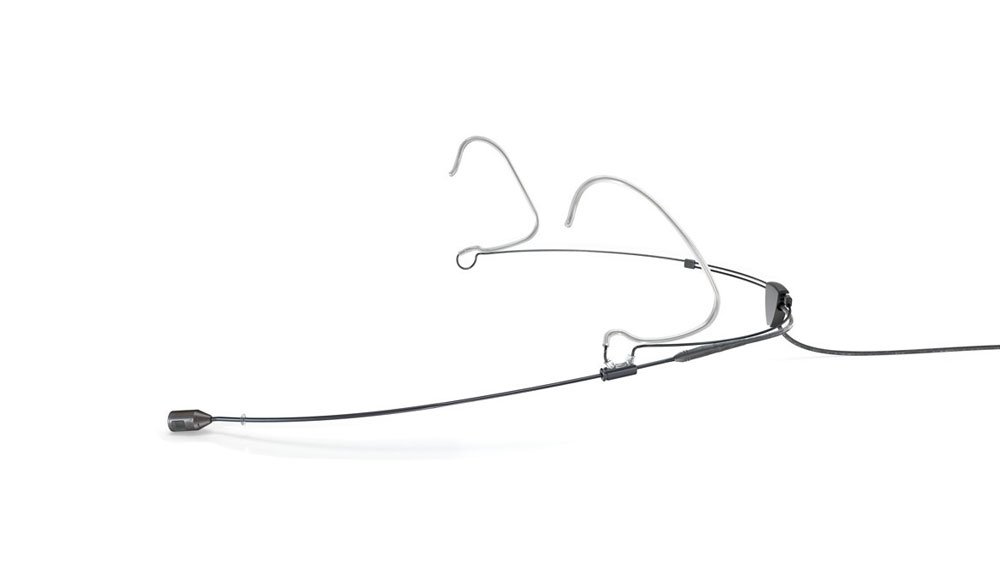

The DPA 4488 CORE+ Cardioid Headset Microphone with Locking 3.5mm Adapter (Black) (Model: 4488-DP-R-B34) is a high-performance, dual-ear headset designed for professionals in theater, broadcasting, live events, and presentations. Engineered for use with Sennheiser transmitters, this version features a locking 3.5mm connector, delivering secure, dependable performance even in the most demanding environments.
Built with DPA's CORE+ technology, the microphone ensures superior clarity, wide dynamic range, and nearly distortion-free audio-handling up to 144 dB SPL. Its discreet, adjustable stainless steel frame offers a custom fit via 3-point ear grips and a 2-way adjustable boom, allowing precise mic positioning. The rugged design includes a Kevlar-reinforced cable and IP58-certified water-repellent construction, ensuring reliability and comfort during extended wear. With its focused cardioid pickup pattern, the 4488 CORE+ delivers exceptional vocal isolation and intelligibility, making it a trusted solution for high-stakes vocal reinforcement.
Features
Headset microphone with cardioid pickup for excellent feedback rejection in live or broadcast settingsCORE+ technology ensures ultra-low distortion and natural clarity across loud and soft vocal rangesDual-ear adjustable stainless steel frame with secure 3-point grip for long-term comfort and stabilityBoom arm adjusts in both length and angle for precise mic placementIncludes locking 3.5mm adapter for seamless integration with Sennheiser wireless systemsDurable IP58-rated design with Kevlar-reinforced cable and discreet matte finishPerfect for high-performance presentations, stage productions, and professional speech applications
Specifications
General Specifications
Product ID: 4488-DP-R-B34Microphone type: Electret condenserDirectional pattern: CardioidOperating principle: PressureFrequency response: 20 Hz to 20 kHzSensitivity: 6 mV/Pa or -44 dB re 1 V/PaEquivalent noise level: 26 dB A-weightedMaximum SPL: 144 dB peakDynamic range: 111 dBPower requirements: 5 to 10 V (plug-in power)Connector type: MicroLock with DAD9034 adapter to locking 3.5 mmCable length: 1.2 metersCable diameter: 1.6 mmPolarity: Positive pressure yields positive voltage on MicroLock pinWeight: 14 g including cable and connectorColor: Black
Mechanical and Design Features
Capsule diameter: 5.4 mmBoom arm: Two-way adjustable for length and vertical pivotingBoom lock: Sliding lock with anti-rotation shapeBoom detachment: Detachable below ear for left/right conversionEar grips: 3-point system with spring mechanism for secure fitHeadset frame: Stainless steel with matte PVD coatingFrame fit: One-size-fits-all, fully adjustableCable management: 90-degree guide, sliding for camera visibility managementService connector: Allows independent replacement of boom and cableEnvironmental rating: IP58 certified for dust and moisture resistanceBoost grids: Includes Soft Boost (3 dB at 8-20 kHz) and High Boost (10 dB at 12 kHz), both stainless steel and cleanable
Compatibility and Usage
Compatible transmitters: Sennheiser models with locking 3.5 mm connector including Evolution ew, XSW-D, and SpeechLine SL SeriesApplications: Live performance, broadcast, stage, presentations, vocal use
