DPA 4488-DP-R-C03
MPN #4466-DP-R-C03
Cardioid dual-ear headset mic, 5mm capsule, brown finish, LEMO 3-pin adapter, 144 dB max SPL, adjustable boom, IP58 rated, for Lectrosonics transmitters.

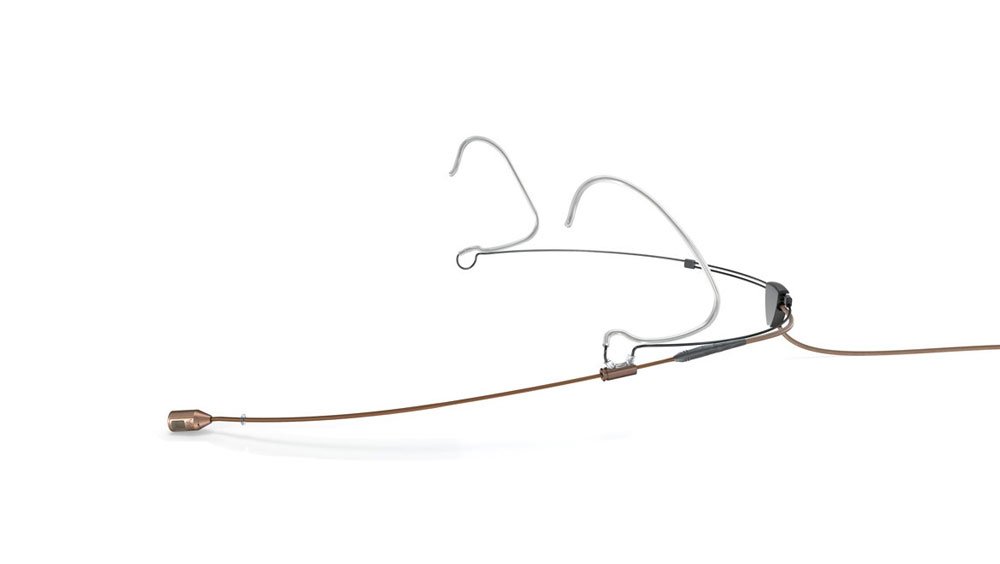

The DPA 4488 CORE+ Cardioid Headset Microphone with LEMO 3-Pin Adapter (Brown) offers discreet, professional-grade audio for presenters, performers, and broadcasters who demand exceptional clarity and comfort. With its compact 5mm cardioid capsule and CORE+ technology, this headset mic delivers crystal-clear sound with minimal distortion-even at sound pressure levels up to 144 dB-while effectively rejecting ambient noise and feedback.
Designed for Lectrosonics wireless systems, this version features a MicroLock connector paired with a 3-pin LEMO adapter, ensuring a secure, dependable fit. Its dual-ear, stainless steel frame is fully adjustable, equipped with 3-point ear grips and a 2-way adjustable boom for optimal mic placement. A built-in 90 degree cable guide keeps wires discreetly positioned, while the IP58-rated coating enhances durability against moisture and wear. With broadcast-ready audio performance and a color-matched brown finish for subtle visibility, this headset is ideal for high-profile theatrical, TV, and live stage applications.
Features
Lightweight headset microphone designed for speech and vocals in live, broadcast, and presentation settingsCORE+ technology delivers crystal-clear sound with high SPL handling and ultra-low distortionDirectional cardioid pattern isolates voice and minimizes background noise and feedbackDiscreet, dual-ear frame with 3-point ear grips provides secure and comfortable fitTwo-way adjustable boom arm allows precise placement and stability during useIncludes MicroLock connector with LEMO 3-pin adapter for use with Lectrosonics and compatible systemsRugged Kevlar-reinforced cable and IP58-rated water/dust resistance for reliability in demanding environments
Specifications
General Specifications
Product ID: 4488-DP-R-C03Microphone type: Electret condenserDirectional pattern: CardioidOperating principle: PressureFrequency response: 20 Hz to 20 kHzSensitivity: 6 mV/Pa or -44 dB re 1 V/PaEquivalent noise level: 26 dB A-weightedMaximum SPL: 144 dB peakDynamic range: 111 dBPower requirements: 5 to 10 V (plug-in power)Connector type: MicroLock with 3-pin LEMO adapterCable length: 1.2 metersCable diameter: 1.6 mmPolarity: Positive pressure yields positive voltage on MicroLock pinWeight: 14 g including cable and connectorColor: Brown
Mechanical and Design Features
Capsule diameter: 5.4 mmBoom arm: Two-way adjustable for length and vertical pivotingBoom lock: Sliding lock with anti-rotation shapeBoom detachment: Detachable below ear for left/right conversionEar grips: 3-point system with spring mechanism for secure fitHeadset frame: Stainless steel with PVD matte finishFrame fit: One-size-fits-all, fully adjustableCable management: 90-degree guide, sliding for camera visibility managementService connector: Allows independent replacement of boom and cableEnvironmental rating: IP58 certified for dust and moisture resistanceBoost grids: Includes Soft Boost (3 dB at 8-20 kHz) and High Boost (10 dB at 12 kHz), both stainless steel and cleanable
Compatibility and Usage
Adapter compatibility: Designed for Lectrosonics transmitters with 3-pin LEMOApplications: Stage, broadcast, presentation, theater, live sound
