DPA 4488-DP-R-C90
MPN #4466-DP-R-B90
Cardioid dual-ear headset mic, brown finish, MicroLock connector, 144 dB max SPL, adjustable boom, CORE+ clarity, 3-point grip, PVD-coated frame.

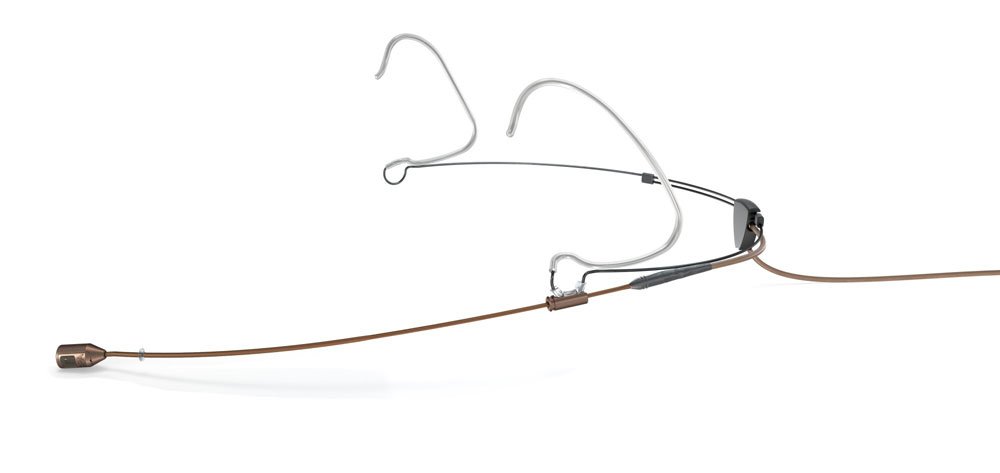

The DPA 4488 CORE+ Directional Headset Microphone (4488-DP-R-C90) in brown delivers an elegant, low-profile solution for demanding vocal applications in live, broadcast, and theater environments. With its discreet 5mm cardioid capsule and MicroLock connector, it offers both premium audio performance and robust connection flexibility. Designed for voice professionals who need superior speech intelligibility and noise rejection, this headset excels in noisy environments by focusing capture on the speaker while minimizing feedback and off-axis noise.
Its one-size-fits-all, stainless steel headset frame is coated with a non-reflective PVD finish for durability and visual subtlety. The adjustable three-point ear grip system ensures a secure and comfortable fit, even for long sessions, while the dual-position boom arm provides optimal placement flexibility. Built to handle up to 144 dB SPL with CORE+ technology minimizing distortion, the 4488 delivers pristine, natural sound reproduction whether you're speaking or singing. Ideal for presenters, performers, and AV professionals who value both sonic clarity and long-lasting comfort.
Features
High-quality cardioid headset mic ideal for speech, vocals, and performance in noisy environmentsCORE+ technology delivers ultra-low distortion and high clarity, even at loud SPLsDirectional capsule helps reject background noise and minimize feedbackOne-size-fits-all headset with secure 3-point grip for stable, comfortable wearFlexible boom arm with anti-rotation and locking system ensures perfect mic placementBoom is reversible for left or right side useNon-reflective, durable PVD-coated stainless steel frameDiscreet 90 degree cable guide for clean cable routingMicroLock connector compatible with various adapters for wireless transmitters
Specifications
General Specifications
Product ID: 4488-DP-R-C90Microphone type: Pre-polarized condenserDirectional pattern: CardioidOperating principle: Pressure gradientFrequency response: 20 Hz - 20 kHzEffective frequency range: 100 Hz " 20 kHz (4 - 6 dB soft boost at 15 kHz)Sensitivity: 6 mV/Pa or -44 dB re 1 V/PaEquivalent noise level (A-weighted): Typ. 26 dB(A), Max. 28 dB(A)Equivalent noise level (ITU-R BS.468-4): Typ. 38 dB, Max. 40 dBMax SPL (THD <1%): 134 dB SPL RMS, 137 dB SPL peakMax SPL (THD 10%): 144 dB SPL peakDynamic range: Typ. 111 dBOutput impedance: 30 - 40 ohmCable drive capability: Up to 300 m with DAD6001-BCPower requirements: 5 - 10 V via DPA adapter, P48 with DAD6001-BC (12 V minimum)Current consumption: 1.5 mA mic only, 3.5 mA with DAD6001-BC
Connectivity and Physical Details
Connector: MicroLockCable length: 1.3 m (4.3 ft)Cable diameter: 1.6 mm (0.06 in)Microphone diameter: 5.4 mm (0.21 in)Weight: 12 g including cable and connectorPolarity: Positive pressure = positive voltage on MicroDot pinTemperature range: -40 degree C to 45 degree C (-40 degree F to 113 degree F)Relative humidity tolerance: Up to 90%Color: Brown
Mechanical and Design Features
Frame: One-size-fits-all stainless steel with PVD coatingBoom: Two-way adjustable for length and angle; lockable with anti-rotation mechanismBoom detachment: Switchable for right or left sideEar grips: 3-point design (above, below, and behind the ear)Cable guide: 90 degree adjustable, slides laterally to keep out of viewApplication focus: Stage, broadcast, live performance, and theaterAcoustic performance: CORE+ technology reduces distortion across full dynamic rangeOff-axis rejection: High, due to directional capsule designBass response: Optimized for close placement for full-bodied sound
