DPA 4488-DP-R-F03
MPN #4466-DP-R-F03
Cardioid headset mic, beige finish, 3-pin LEMO, dual-ear fit, adjustable boom, 144 dB max SPL, CORE+ clarity, 3-point grip, IP58-rated frame.

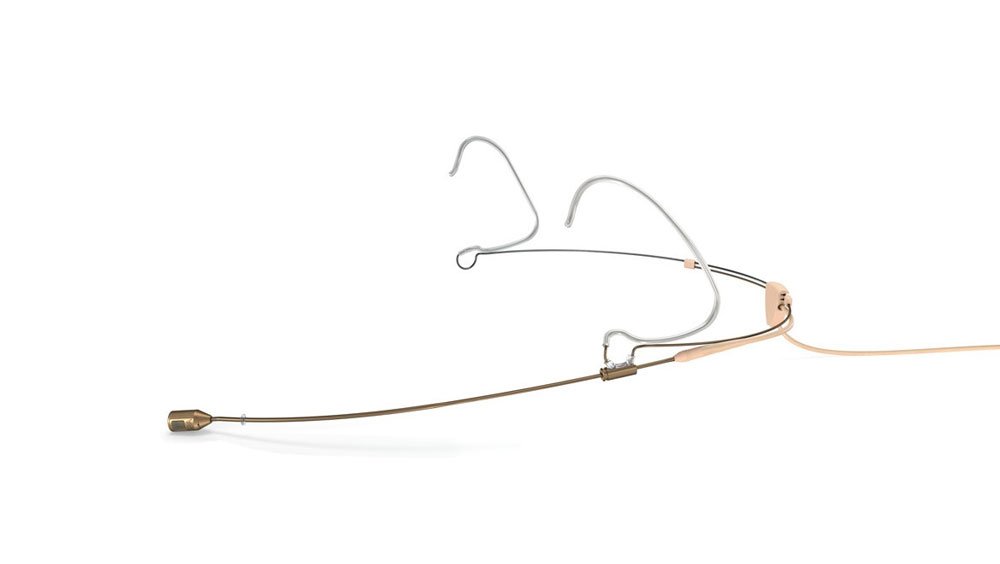

The DPA 4488 CORE+ Cardioid Headset Microphone (4488-DP-R-F03) in beige is crafted for professionals seeking discreet yet high-performance audio capture in live presentations, theater, or broadcast environments. Featuring a sleek 5mm directional microphone capsule and the acclaimed CORE+ technology, it ensures pristine sound with exceptional clarity, reduced distortion, and a high SPL threshold-ideal for both speech and vocals in noisy settings. The cardioid pickup pattern adds focus, isolating the speaker's voice from ambient noise and feedback.
Designed for flexibility and comfort, the headset uses a dual-ear, one-size-fits-all stainless steel frame with a soft matte finish and a resilient PVD coating. Its innovative 3-point ear grips and 2-way adjustable boom offer secure and customizable fit options. The included LEMO 3-pin adapter connects seamlessly to Lectrosonics and compatible transmitters, while the MicroLock connector ensures dependable, interference-free operation. This lightweight headset balances robust performance with elegant design, delivering professional-grade audio with lasting comfort and discretion.
Features
Professional-grade headset mic with a discreet beige finish for stage, broadcast, or presentation useDirectional (cardioid) capsule minimizes background noise and feedback for clean, focused soundCORE+ technology provides superior clarity and ultra-low distortion, even at high volumesDesigned for Lectrosonics and compatible 3-pin LEMO transmittersOne-size-fits-all dual-ear headset with a comfortable 3-point grip for stable, long-wear useAdjustable boom arm allows precise mic positioning and can switch sides easilyIntegrated 90 degree cable guide routes cable securely down the back for a tidy lookBuilt with a rugged, PVD-coated stainless steel frame and Kevlar-reinforced cableIncludes MicroLock to LEMO adapter for secure wireless connection compatibility
Specifications
General Specifications
Product ID: 4488-DP-R-F03Microphone type: Pre-polarized condenserDirectional pattern: CardioidOperating principle: Pressure gradientFrequency response: 20 Hz - 20 kHzEffective frequency range: 100 Hz - 20 kHz (4 - 6 dB soft boost at 15 kHz)Sensitivity: 6 mV/Pa or -44 dB re 1 V/PaEquivalent noise level (A-weighted): Typ. 26 dB(A)Equivalent noise level (ITU-R BS.468-4): Typ. 38 dBMax SPL (THD <1%): 134 dB SPL RMS, 137 dB SPL peakMax SPL (THD 10%): 144 dB SPL peakDynamic range: 111 dBOutput impedance: 30 - 40 ohmCable drive capability: Up to 300 m with DAD6001-BCPower requirements: 5 - 10 V via DPA adapterCurrent consumption: 1.5 mA mic only, 3.5 mA with DAD6001-BC
Connectivity and Physical Details
Connector: MicroLock with LEMO 3-pin adapterCable length: 1.2 m (3.9 ft)Cable diameter: 1.6 mmMicrophone diameter: 5.4 mmWeight: 14 gPolarity: Positive pressure = positive voltage on MicroDot pinTemperature range: -40 degree C to 45 degree CRelative humidity: Up to 90%Color: Beige
Mechanical and Design Features
Frame: Stainless steel, one-size-fits-all, PVD coatedBoom: Two-way adjustable (length and angle), detachable for left/right useEar grips: 3-point design (above, below, behind the ear)Cable management: 90 degree adjustable, side-sliding guideAcoustic technology: CORE+ for low distortion and extended dynamic rangeApplication focus: Theater, TV, presentations, live performanceIncludes: DAD9003 MicroLock to LEMO 3-pin adapter, 2-year warranty
