DPA 5006-11A

$11144.00

Free shipping in Canada. Conditions

A complete surround kit combining three d:dicate 4006A Omnidirectional Microphones and two d:dicate™ 4011A Cardioid Microphones, carefully factory-matched to achieve full precision



The DPA 5006-11A is a complete surround kit combining three DPA 4006A and two 4011A, carefully factory-matched to achieve full precision. Even though the standard tolerances on DPA Reference Standard Mics are extremely low, the surround match is even closer.

The specially selected DPA 4006A microphones are matched within ±0.5 dB on both frequency response and sensitivity. The maximum phase response difference is 5°. The 4011A's are matched within ±1 dB.

The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 Hz to 20 kHz (±2 dB) of the microphones make the 4006As the perfect choice for all AB Stereo, Decca Tree or surround main array recordings. The precise reproduction, total transparency and natural-sounding clarity of a DPA 4006A microphone will provide you with a lifetime of satisfying listening.

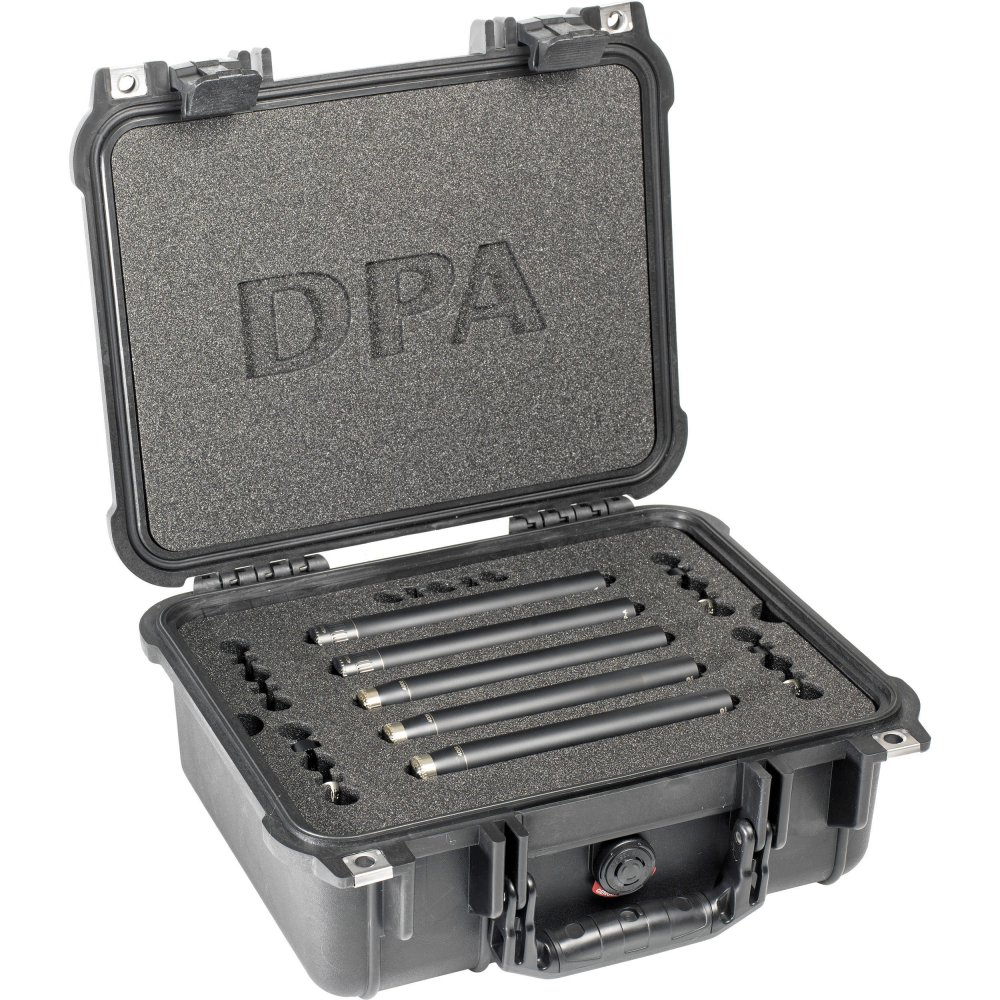

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.

Included in this kit

Carefully matched microphones, sturdy Peli case, holders, grids, and windscreens.

Features

  • Three Omni + two Cardioid carefully matched microphones
  • Decca Tree front + cardioids rear
  • Useful as orchestral main pair
  • Peli™ Case transportation and protection
  • Specifications

  • Directional characteristics: 4006A: omnidirectional. 4011A: cardioid.
  • Principle of operation: 4006A: pressure. 4011A pressure gradient.
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 10 Hz to 20 kHz
  • Frequency range, ± 2 dB: 4006A: 10 Hz to 20 kHz. 4011A: 40 Hz to 20 kHz.
  • Sensitivity, nominal, ±2 dB at 250 Hz: 4006A: 40 mV/Pa; -28 dB re. 1 V/Pa
  • Sensitivity, nominal ±2 dB at 1 kHz: 4011A: 10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: 4006A: Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A)). 4011A: Typ. 18 dB(A) re. 20 µPa (max. 20 dB).
  • Equivalent noise level, ITU-R BS.468-4: 4006A: Typ. 27 dB (max. 29 dB). 4011A: Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting).
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL: 4006A: Typ. 79 dB(A). 4011A: Typ. 76 dB(A).
  • Total Harmonic Distortion (THD): : < 1 % up to 139 dB SPL peak
  • Minimum load impedance: 2 kohm
  • Dynamic range: 4006A: Typ. 124 dB. 4011A: Typ. 121 dB.
  • Max. SPL, peak before clipping: 4006A: 147 dB. 4011A: 159 dB.
  • Switchable attenuator: 0 dB / -20 dB
  • Output impedance: < 200 ohm
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR): > 60 dB
  • Power supply (for full specifications): 48 V Phantom power (± 4 V)
  • Current consumption: 2.8 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Weight: 4006A: 163 g (5.7 oz). 4011A: 158 g (5.6 oz).
  • Diameter: 4006A: 16 to 19 mm (0.63 to 0.75 in). 4011A: 19 mm (0.75 in).
  • Capsule diameter: 4006A: 16 mm (0.63 in). 4011A: 19 mm (0.75 in).
  • Length: 170 mm (6.7 in)
  • Output voltage, RMS: > 5 V
  • Polarity: +V at Pin 2 for positive sound pressure
  • Temperature range: -40 °C to 50 °C (-40 °F to 122 °F)
  • Relative Humidity (RH): Up to 90 %
  • Matching tolerance: 4006A: ± 0.5 dB. 4011A: ± 1 dB.
  • Phase deviation for kit: 4006A: < 5°. 4011A: < 10°.
  • Manufacturer Part Number : 5006-11A

    Reviews

    5.0
    Terry
    Okanagan, BC
    February 13, 2019
    DPA 5006-11A
    If you are serious about microphones, DPAs need no introduction. Best of the best. I have a comparable pair of Schoeps CMC6/MK41. The DPA are slightly more detailed, the Schoeps are slightly more musical. Totally comes down to preference. Both are great. Read more
