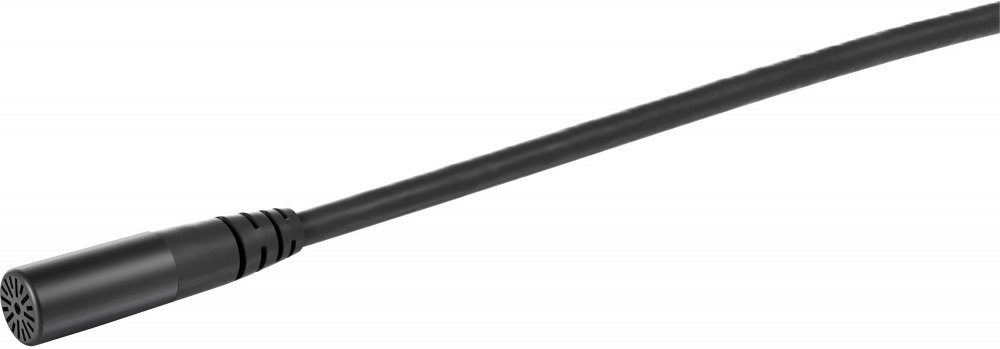

d:screet CORE 6060 Omni Submini Mic, Normal SPL. Black, TA5F connector included for Lectrosonics SM and UM wireless



d:screet 6060 CORE Subminiature Microphones are just 3 mm (0.12 in) in size but pack the audio power of our larger, award-winning DPA mics. What they lack in size, they more than make up for in clarity, consistency and durability - three qualities that really matter. By shrinking CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

Features

  • Amazing 3 mm CORE capsule technology
  • Renowned DPA sound in a 60% smaller package
  • Stainless steel, PVD-coated mic housing
  • Modular adapter system fits most professional wireless systems
  • Water and sweat resistant
  • Made for theater, film, and television production
  • Specifications

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz

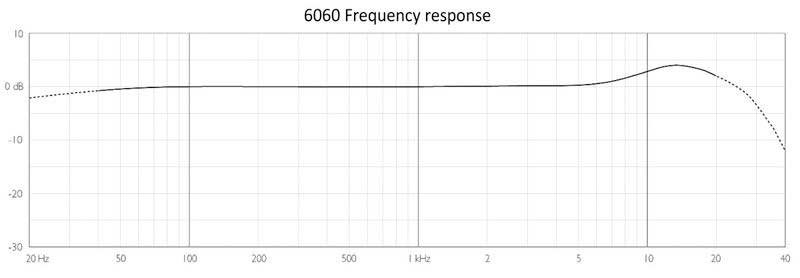

  • Frequency range, ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: yp. 24 dB(A) re. 20 Pa (max. 26 dB(A))
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 70 dB(A)
  • Total harmonic distortion (THD): < 1% up to 126 dB SPL peak
  • Dynamic range: Typ. 102 dB
  • Max. SPL, peak before clipping: 134 dB
  • Output impedance: From MicroDot: 30 - 40 . From DAD6001-BC: 100
  • Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
  • Power supply (for full performance): Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
  • Connector: TA54F
  • Color: Black
  • Weight: 8 g (0.29 oz) incl. Cable and MicroDot connector
  • Microphone head size (h x w x d): 3.4 / 14.4 mm (0.13 / 0.57 in)
  • Capsule diameter: 3 mm (0.12 in)
  • Cable length: 1.8 m (5.9 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
  • Manufacturer Part Number : 6060-OC-U-B56
