DPA 6066-OC-R-B10

$1200.00

Free shipping in Canada. Conditions

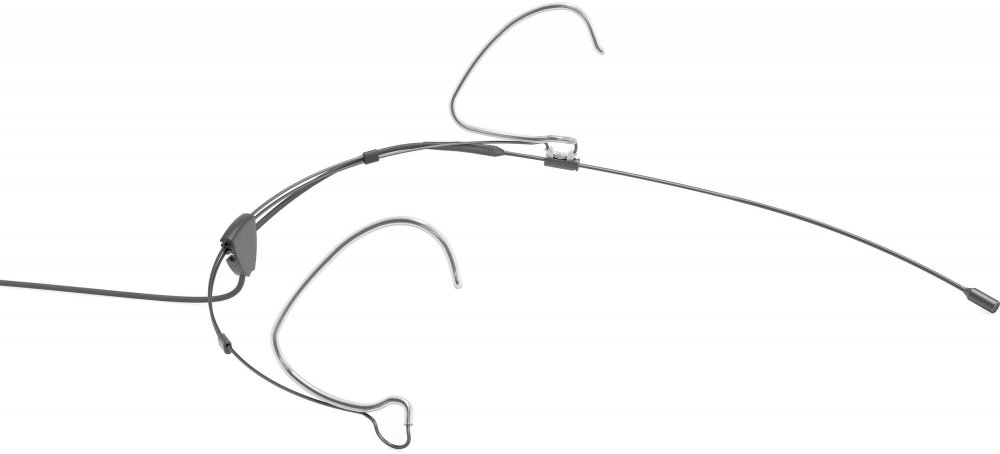

d:fine™ CORE 6066 Omni Headset Mic. Black, TA4F Mini-XLR connector included.



The capsule of the d:fine™ CORE 6066 Subminiature Headset is just 3 mm (0.12 in) in diameter, but packs the audio power of larger, award-winning DPA mics. Despite its small size, it is abundant in clarity, consistency and durability - three qualities that truly matter. By shrinking our newly introduced CORE by DPA technology, we ensure you don't have to compromise on sound to focus on aesthetics.

Beyond this minimized size and maximized sound potential, these mics also sport a completely redesigned, lightweight, one-size-fits-all headset that attaches over the ears for maximum comfort. 3-point ear grips with spring mechanisms help grip below the ears and to the side of the head for added security. A 2-way adjustable boom system (length and height) with an anti-rotate mechanism makes this new headset very easy to fit. A new 90° cable management system safeguards the cable and directs it down the wearer's back, where it can't be seen.

Between the sound quality and the comfort, once you try it we're sure you'll never want to wear another headset mic solution.

Features

  • Amazing 3 mm CORE by DPA capsules technology
  • Renowned DPA sound in a 60% smaller capsule
  • One-size-fits-all, headset fits securely and comfortably
  • 2-way adjustable, non-reflective boom with locking system
  • Unique, comfortable 3-point gripping system above, below and behind the ear
  • New 90° cable management constructed to guide the cable and minimize cable breaks
  • Specifications

    Directional pattern: Omnidirectional
    Principle of operation: Pressure
    Principle of operation: Pre-polarized condenser
    Frequency range: 20 Hz - 20 kHz
    Frequency range, ±2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz
    Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
    Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 Pa (max. 28 dB(A))
    S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 68 dB(A)
    Total harmonic distortion (THD): < 1% up to 128 dB SPL peak
    Dynamic range: Typ. 102 dB
    Max. SPL, peak before clipping: 144 dB
    Output impedance: From MicroDot: 30 - 40 . From DAD6001-BC: 100
    Cable drive capability: Up to 300 m (984 ft) with DAD6001-BC XLR adapter
    Power supply (for full performance): Min. 5 V to max. 10 V through DPA adapter for wireless systems. With DAD6001-BC: 48 V phantom power ±4 V for full performance. Works from 12V
    Connector: Mini-Jack
    Color: Black
    Weight: 8 g (0.29 oz) incl. Cable and MicroDot connector
    Microphone head size (h x w x d): 3.4 / 14.4 mm (0.13 / 0.57 in)
    Capsule diameter: 3.4 / 14.4 mm (0.13 / 0.57 in)
    Cable length: 1.8 m (5.9 ft)
    Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
    Temperature range: -40°C to 45°C (-40°F to 113°F)
    Relative humidity (RH): Up to 90%
    Manufacturer Part Number : 6066-OC-R-B10
