DPA SMK-SC4061
MPN #KIT-4061-OL-SMK
d:screet 4061 Stereo Microphone Kit
It combines two d:screet SC4061 Omnidirectional Miniature Microphones, Lo-Sens, with a variety of mounting accessories. These include the BLM6000 Boundary Layer Mount, which can be used in conjunction with our d:screet? 4060, 4061, 4062 and 4063 Miniature Microphones to place on a reflective boundary such as a floor, wall, ceiling, piano lid etc. This enables the mics to capture the ambient sound of the area. The sound captured from this "pressure zone" has higher sensitivity, clarity and intelligibility compared to the sound captured from the "free air". This solution serves as a kind of acoustical zoom.
There are many accessories included in the kit. One of them is the DMM0007 Universal Surface Mount. This mount allows all kinds of instruments, from acoustic guitar through grand piano and drums, to be mounted in the best-sounding position. The mount uses special non-marking adhesive discs for attachment.
The d:screet? Stereo Microphone Kit is also available with d:screet? SC4060 Miniature Omnidirectional Microphones, Hi-Sens.
TEC award 2007: The SMK-SC4061 was among the nominees chosen by MIX Magazine's Nominating Panel for 'Outstanding Technical Achievement - Microphone Technology/Recording'.
Flexible adapter system
The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.
The d:fine?, d:screet? and d:vote? series of miniature microphones work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom, Zaxcom and many more. DPA Microphones' ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come.

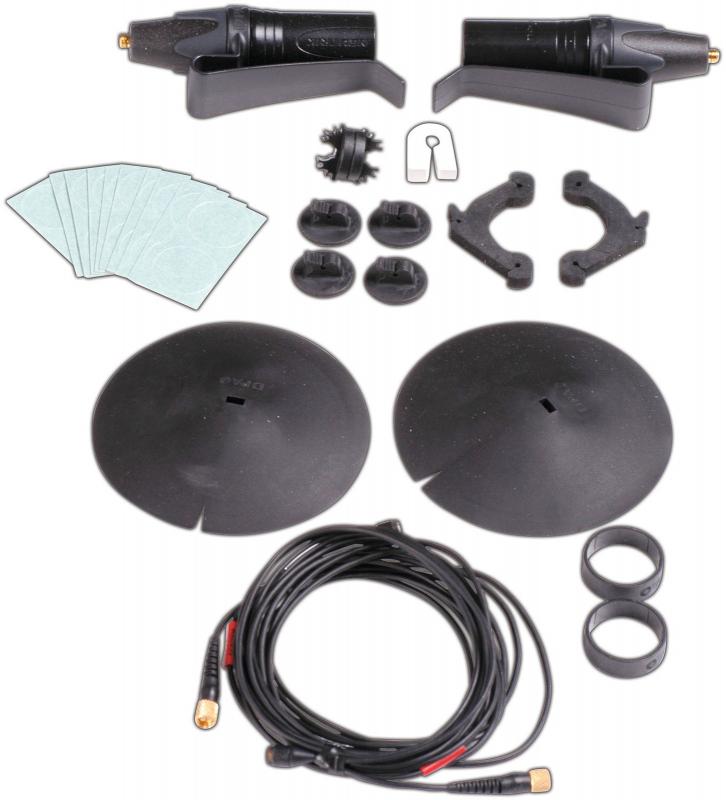

What is in the box
2 x 4061 Omnidirectional Mic, Lo-Sens, Black, 3 meter cable2 x BLM6000-B Boundary Layer Mount, Black2 x DAD6001-BC MicroDot to 3-pin XLR (P48) w. Belt Clip1 x DMM0007 Universal Surface Mount, 5 pcs.2 x DMM0011-B Magnet Mount, Black1 x DUA0560 Windscreen, Black, 5 pcs.
Specifications
Directional characteristics: OmnidirectionalPrinciple of operation: PressureCartridge type: Pre-polarized condenser element with vertical diaphragmFrequency range, ± 2 dB: 20 Hz - 20 kHz ±2 dB, Soft boost grid: 3 dB soft boost at 8 - 20 kHz, High boost grid: 10 dB boost at 12 kHzSensitivity, nominal, ±3 dB: 6 mV/Pa; -44.5 dB re. 1 V/PaEquivalent noise level A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))Equiv. noise level ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL): 68 dB(A)Total harmonic distortion (THD): <1% THD up to 123 dB SPL peakDynamic range: Typ. 97 dBMax. SPL, peak before clipping: 144 dBOutput impedance: 30 - 40 OhmCable drive capability: Up to 300 m (984 ft)Power supply: For wireless systems: Min. 5 V - max. 50 V through DPA adapter; with DAD6001: 48 V phantom power ±4 V.Color: BlackWeight: 7.5 g (0.26 oz) including cable and MicroDot connectorMicrophone length: 12.7 mm (0.5 in)Cable length: 3 m (9.8 ft)Cable: BlackSensitivity selection tolerance (at 1 kHz): ± 1.5 dB
