DPA ST2006A

MPN #ST2006A

$2631.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

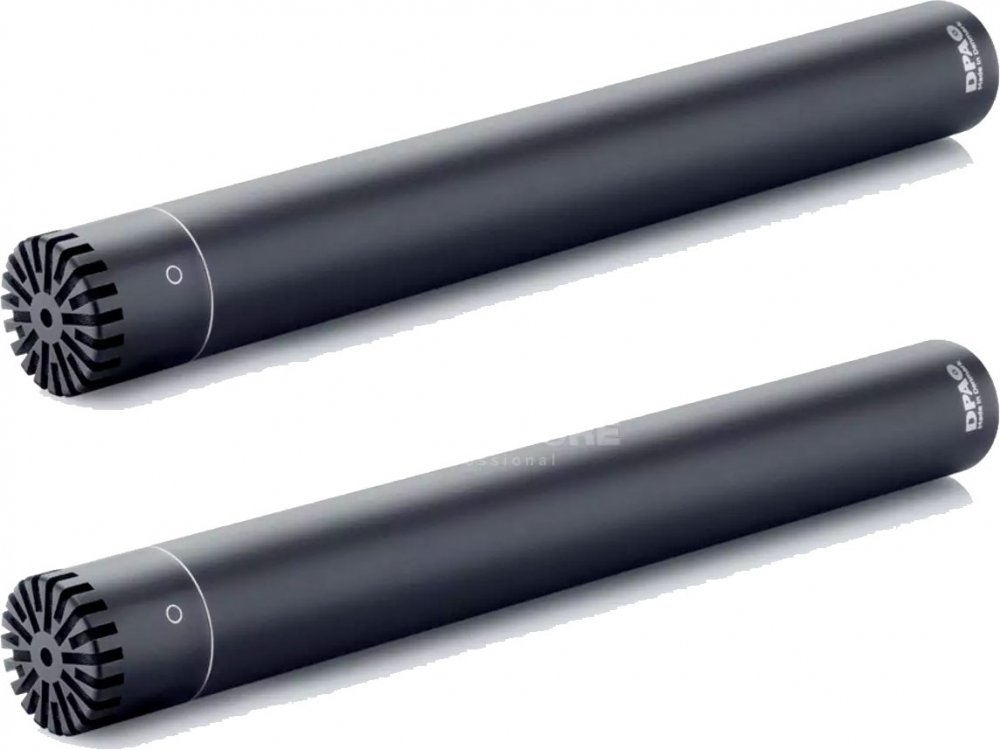

A complete stereo pair; two handpicked omnidirectional condenser microphones, selected on sensitivity within ±1.5 dB. The mics deliver precise sound and true tone.

These mics are ideal for use with orchestra, acoustic piano, guitar, wind instruments and choirs.

This condenser mic bridges the gap between the extreme sound quality of the d:dicate Microphones series and our well-known Miniature Microphones in the d:screet series.

The microphone capsule
Inside this capsule, two opposite-facing miniature capsules are custom rebuilt. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth.

The capsules are loaded to the supreme d:dicate Microphone series preamplifiers instead of the tiny miniature FET ones. This gives the sound more air and precision.

Comparisons with its big brother, the iconic MMC4006 capsule, are inevitable. The relationship between the two can be clearly heard. The MMC2000 series performs as well as more exclusive microphones. It is a premium-class mic capsule and redefines the term value for money.

A truly flexible range
The d:dicate 2006A Twin Diaphragm Omni Microphone is part of the flexible d:dicate Microphone series. It combines the MMC2006 Twin Diaphragm Cardioid Capsule, with the MMP-A preamplifier. This combination is for the true audiophile. It offers low distortion and totally accurate and faithful sound.

Another option, the d:dicate 2006C Twin Diaphragm Cardioid Microphone, Compact offers a subtle character alteration with a bit more "body" to the low end than the d:dicate 2006A Twin Diaphragm Cardioid Microphone.

At any time, and with no tools needed, it is possible to transform the d:dicate 2006A Twin Diaphragm Cardioid Microphone into a new configuration. You can combine it with another d:dicate or d:facto Microphone Capsule or Preamplifier.

Features

Sensitivity-selected pair

Acoustic authenticity

Linear in a large frequency bandwidth

Twin diaphragm capsule

Modular flexibility

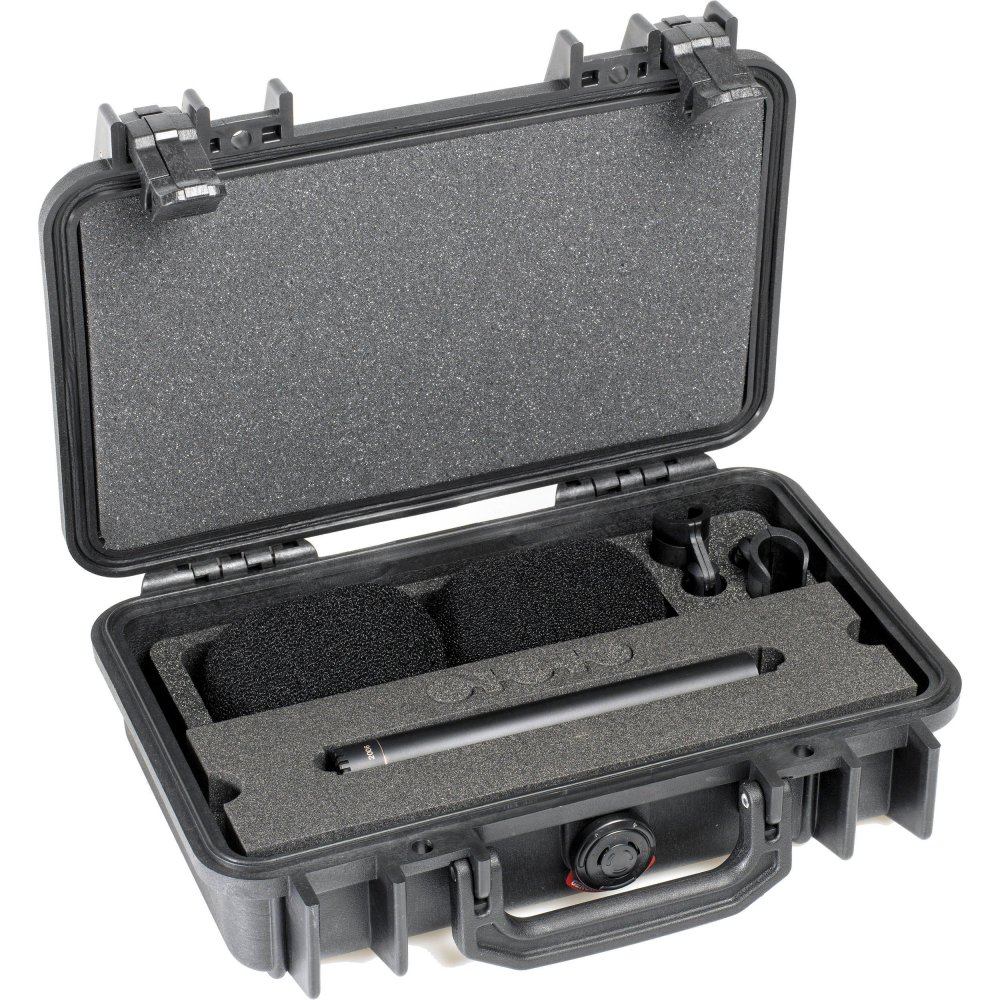

Peli Case transportation and protection

Specifications

Principle of operation: Pressure

Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule

Frequency range: 20 Hz - 20 kHz

Frequency range, ± 2 dB: 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz

Sensitivity, nominal, ± 2 dB at 1 kHz: 40 mV/Pa; -28 dB re. 1 V/Pa

Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))

Equivalent noise level, ITU-R BS.468-4: Typ. 28 dB (max. 30 dB)

S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)

Total Harmonic Distortion (THD): < 1 % up to 130 dB SPL peak

Dynamic range: Typ. 114 dB

Max. SPL, peak before clipping: 146 dB

Switchable attenuator, filters etc.: 0 dB / -20 dB

Output impedance: 200

Minimum load impedance: 2 k

Cable drive capability: 100 m (328 ft)

Output balance principle: Impedance balancing with Active Drive

Common Mode Rejection Ratio (CMRR): > 60 dB

Power supply: 48 V Phantom power (± 4 V)

Current consumption: 2.8 mA

Current consumption: Omnidirectional

Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase

Color: Matte black

Weight: 160 g (5.6 oz)

Microphone diameter: 19 mm (0.75 in)

Microphone length: 164 mm (6.5 in)

Output voltage, RMS: 8 V

Polarity: +V at pin 2 for positive sound pressure

Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)

Relative Humidity (RH): Up to 90%

Matching tolerance (frequency response and sensitivity): +/- 1.5 dB
