DPA ST2006C

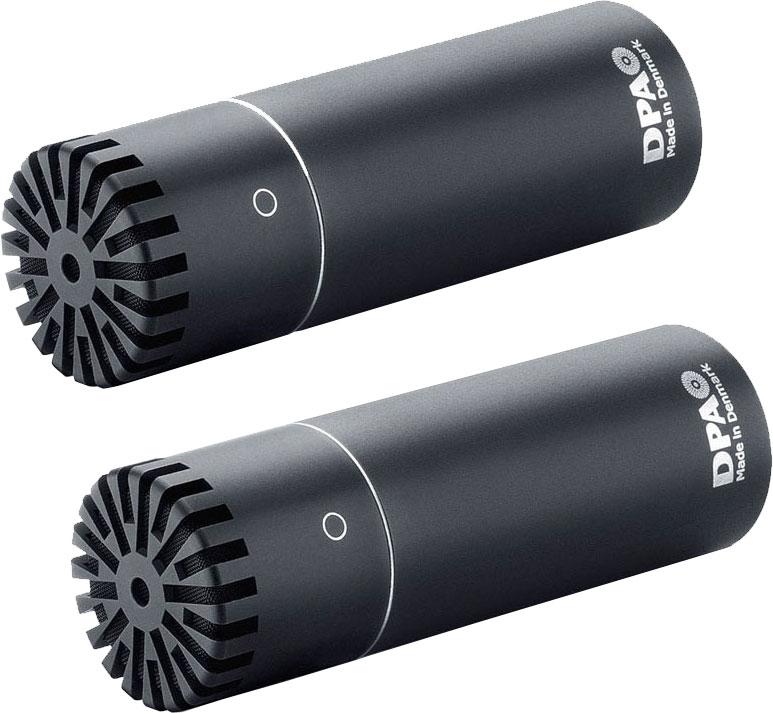

A complete stereo pair; two handpicked omnidirectional condenser microphones, selected on sensitivity within ±1.5 dB. Small, lightweight and inconspicuous main AB stereo pair.

The mics deliver precise sound and true tone. Meeting classic architecture and installation requirements, these mics can be mounted, hung or concealed to create clean, transparent recordings.

This condenser mic bridges the gap between the extreme sound quality of the d:dicate™ Microphones series and our well-known Miniature Microphones in the d:screet™ and d:fine™ series.

The microphone capsule
Inside this capsule, two opposite-facing miniature capsules are custom rebuilt. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth.

The capsules are loaded to the supreme d:dicate™ Microphone series preamplifiers instead of the tiny miniature FET ones. This gives the sound more air and precision.

Comparisons with its big brother, the iconic MMC4006 capsule, are inevitable. The relationship between the two can be clearly heard. The MMC2000 series performs as well as more exclusive microphones. It is a premium-class mic capsule and redefines the term value for money.

A truly flexible range
The d:dicate™ 2006C Twin Diaphragm Cardioid Microphone, Compact is part of the flexible d:dicate™ Microphones Series. It combines the MMC2006 Twin Diaphragm Cardioid Capsule with the MMP-C compact preamplifier. This combination offers a subtle character alteration with a bit more "body" to the low end than the d:dicate™ 2006A Twin Diaphragm Cardioid Microphone. It is also much easier to position than other cardioid mics.

Another option, for the true audiophile, is the d:dicate™ 2006A Twin Diaphragm Cardioid Microphone. It offers low distortion and totally accurate and faithful sound.

At any time, and with no tools needed, it is possible to transform the d:dicate™ 2006C Twin Diaphragm Cardioid Microphone, Compact into a new configuration. You can combine it with another d:dicate™ or d:facto™ Microphone Capsule or Preamplifier.
Features
  • Sensitivity-selected pair
  • Acoustic authenticity
  • Linear in a large frequency bandwidth
  • Twin diaphragm capsule
  • Modular flexibility

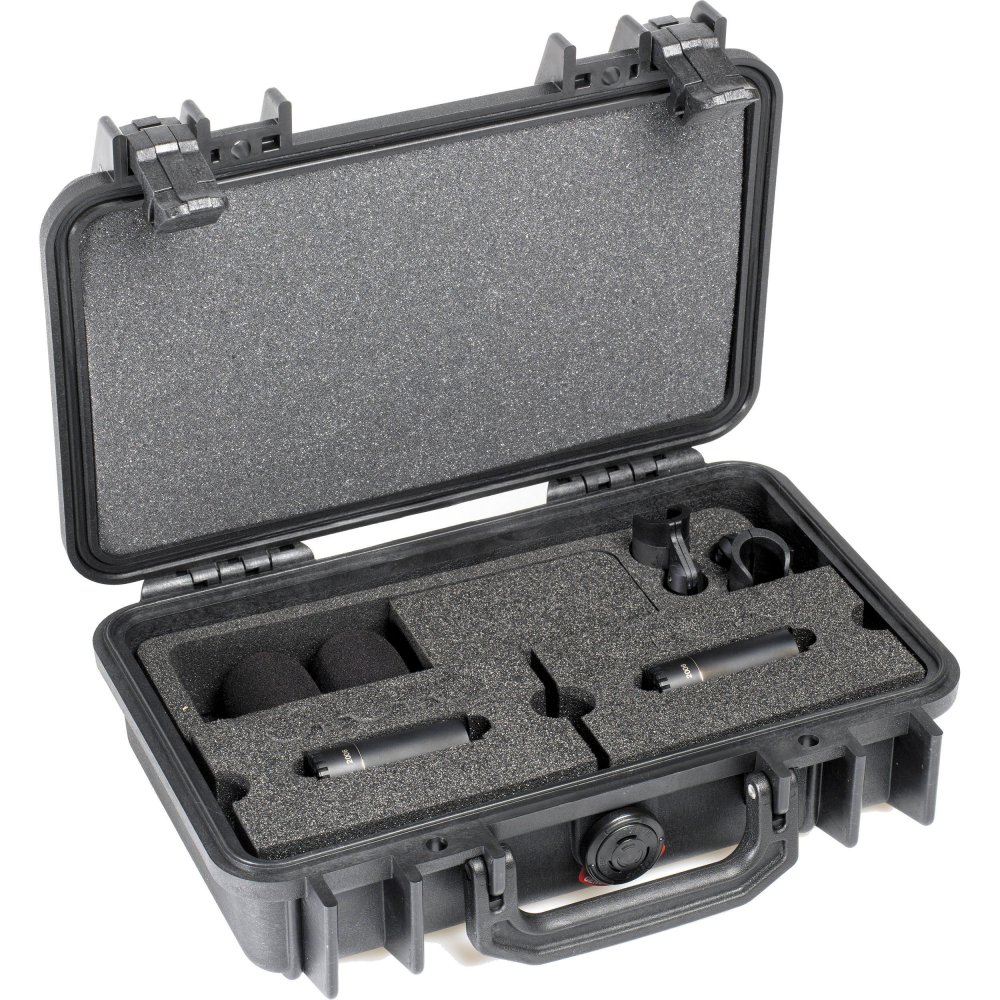

  • Peli™ Case transportation and protection
  • Specifications
  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser, Twin Diaphragm Capsule
  • Frequency range: 20 Hz - 20 kHz
  • Frequency range, ± 2 dB: 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
  • Sensitivity, nominal, ± 2 dB at 1 kHz: 40 mV/Pa; -28 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 28 dB (max. 30 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
  • Total Harmonic Distortion (THD) at 1 kHz: < 1 % up to 130 dB SPL peak
  • Dynamic range: Typ. 114 dB
  • Max. SPL, peak before clipping: 134 dB
  • Output impedance: < 200 ohm
  • Minimum load impedance: 2 kohm
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing with Active Drive
  • Common Mode Rejection Ratio (CMRR): > 50 dB
  • Power supply (for full specifications): 48 V Phantom power (± 4 V)
  • Current consumption: 2.8 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Weight: 60 g (2.1 oz)
  • Microphone diameter: 19 mm (0.75 in)
  • Microphone length: 58 mm (2.3 in)
  • Output voltage, RMS: > 4 V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40 °C to 45 °C (-40 °F to 113 °F)
  • Relative Humidity (RH): Up to 90%
  • Sensitivity selection tolerance (at 1 kHz): ± 1.5 dB
  • Reviews
    Price *

    $2329.00
    Free shipping in Canada. Conditions
    Additional information
    For more information about the ST2006C, please visit the website of DPA
