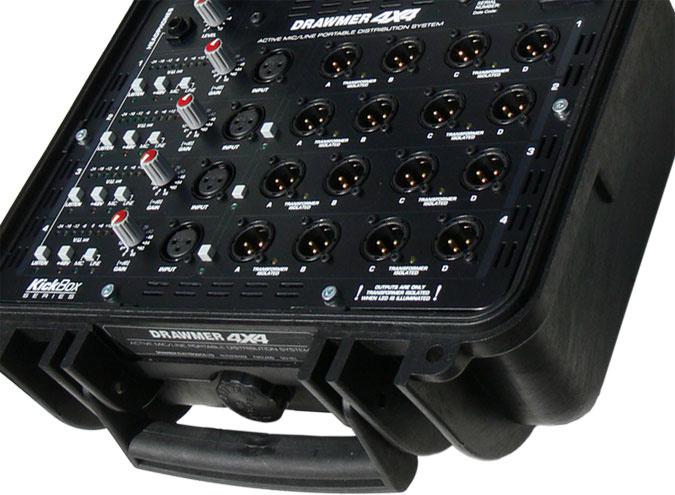

The new Kickbox 4x4 is an ‘all terrain’ 4 in/16 out mic/line signal splitter. Its extremely high audio quality, robust build and portability make it the ideal tool to provide multiple outputs for live sound, broadcast coverage, sports events, live recording, press conferences, corporate events and any situation where distribution of high quality audio is required. It incorporates 4 studio grade mic/line pre-amps, each providing up to 66dB of gain and 16 balanced output stages, each with the option of transformer isolation and comprehensive linking facilities.
The 4x4 is supplied as standard in a road proof case with a removable lid for unhindered access to all controls and connections.
INPUTS
4 STUDIO GRADE MIC/LINE PRE-AMPS
INDEPENDENTINPUTBARGRAPHMETERING
66dB OF VARIABLE GAIN
48V PHANTOM POWER
MIC/LINE SWITCHING
HEADPHONE LISTEN FACILITY
OUTPUTS
4 OUTPUTS PER CHANNEL
OPTIONAL TRANSFORMER ISOLATION
TRANSFORMER LOADED LED STATUS
ISOLATION TRANSFORMERS IN AND OUT
LINKING
CAN BE CONFIGURED AS: 1 IN/16 OUT, 2 X1 IN/ 8 OUT, 1 IN/12 OUTAND1 IN/4 OUTASWELLAS4 X4 IN/4 OUT.
PORTABILITY
COMPACT SELF CONTAINED ROAD PROOF CASE ELIMINATES NEED FOR BULKY FLIGHT CASES
