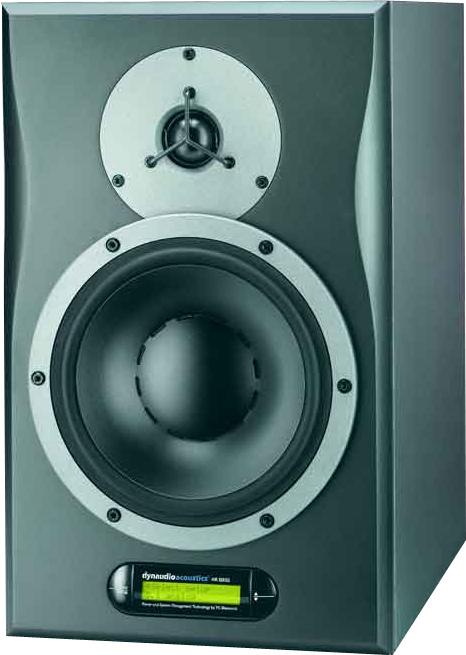

The Dynaudio AIR 12 Master AD has both analog and digital inputs compared to the Dynaudio AIR 12 Digital Master, that has digital inputs only.

The Dynaudio AIR 12 Master AD - powerful two-way nearfield speaker - is the latest addition to the AIR family - a wide range of networked studio monitors for stereo, 5.1 and up.

The Dynaudio AIR 12 Master AD suits all sizes of control rooms and OB vans and its high precision amp/driver system (+/- 0.2dB accuracy) ensures complete consistency with the entire AIR family in a variety of stereo and 5.1 setups - remote controllable via the AIR Remote or the included Air Soft application.

DSP room adaption allows for perfect customization for any room construction and its inter-monitor level calibration feature ensures consistent levels in all sessions.

8" woofer and 1.1 soft dome tweeter

192 kHz support via Dual Wire

Advanced Bass Management with selectable frequency crossover points

Acoustic Placement Compensation

Preset Storage and Recall

Level alignment in 0,1 dB steps

All Monitors aligned within +/- 0.2 dB precision

Integrated Parametric EQ's and delay in each monitor (only accessible with PC-IP)

Central and Remote control of system and parameters

Direct Digital inputs and Analog inputs (optional)

Networking in-between all AIR components

Dedicated AIR Base subwoofers

200 Watt amp on both woofer and tweeter

Model
AIR 12


System
Two-way Active Nearfield Monitor




Frequency Response (+/- 3 dB)
37 Hz - 22 kHz



Peak SPL 1m, pair (IEC Short Term)

> 128 dB peak



Peak SPL 2m, 5.1 (IEC Short Term)
> 126 dB peak (no LFE )




Max SPL 1m, (IEC Long Term)




Precision of monitor matching

+/- 0.2 dB



Port tuning frequency
41 Hz




Internal cabinet volume
18 liter



Bass principle
Bass reflex




Crossover frequency
2100 Hz



Crossover slope

6 dB/oct



Tweeter
Esotec 28 mm / 1.1" soft dome, rear chamber, magnetic fluid, 4mm alu front, pure alu wire voice coil




Woofer
200 mm / 8". Die-cast basket. One piece moulded polyprop cone 75mm / 3" pure aluminum voice coil



Mains voltage
100 to 240 VAC, 50 to 60 Hz (auto-select)




Power consumtion
40 W @ 1/8 max power (IEC 60065)



Finish

-



Amp:
Black anodized aluminum back plate




Cabinet
Dark gray MDF baffle, Silver foil



Dimensions (W x H x D)
385x238x378mm




Weight
12,9 kg



Amplifier

-



Tweeter and woofer
Tweeter 200 W amp/Woofer 200 W amp




Room & Distance
-



Typical listening distance

1.5-2.0 m / 5-8,5 ft



Typical room size
75-125 m3 / 2600-4400 ft3




System sample rates
-



Internal sample rate
192 and 176.4 via Dual Wire (optional Digital Card required) and 96, 88.2, 64, 48, 44.1 or 32 kHz




AIR Masters only
-



I/O Connectors

XLR (2 channels AES/EBU in) 3 x RJ 45 proprietary TC Link



Formats
AES/EBU (24 bit)




Word clock input
BNC, 75ohm, 0.6-10 Vpp



Display
2 x 16 character dot matrix




Operation
Menu system / Four buttons



Analog Input options

-



Input connectors
XLR balanced (pin 2+, pin 3-)




Impedance
10/3 k ohm (Balanced/unbalanced)



Selectable Full scale Input level
+9, +15, +21, +27 dBu




Dynamic range
> 113 dB typ. (unweighted), BW: 20-20 kHz




THD+N
< -105 dB typ. @ 1 kHz, -3 dBFS



Crosstalk
< -120 dB, 20 Hz to 20 kHz




A to D Conversion
24 bit (Dual bit delta sigma sampling at 4.1/5.6/6.1/6.1 MHz)



Slaves

-



I/O Connectors
2 x RJ45 proprietary TC-Link




EMC
-



Complies with
EN 55103-1 and EN 55103-2, FCC part 15 class B, CISPR 22 class B




Safety
-



Certified to

IEC 60065, EN 60065, UL 6500 and CSA E60065 CSA FILE #LR108093



Enviroment
-




Operating temperature
32 F to 122 F (0 C to 50 C)



Storage temperature
-22 F to 167 F (-30 C to 70 C)




Humidity
Max. 90 % non-condensing
