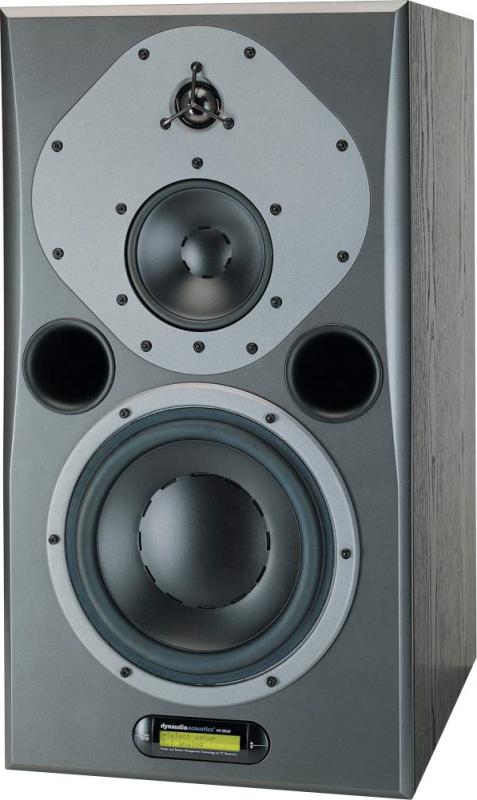

The Dynaudio AIR 25 Digital Master is a 3-way Active Nearfield, 10" woofer, 5.5" one-piece molded polyprop midrange & 1.1 soft dome tweeter.

The Dynaudio AIR 25 Digital Master offers transparency, consistent speaker performance and outstanding possibilities for optimizing performance in different Acoustical environments. The AIR 20 is developed for both stereo and multi-channel monitoring in demanding production environments including:

Post Production

Music Recording and Mixing

Film Editing (smaller rooms)

DVD authoring and Mastering

5.1 Production (Audio or Audio for pictures)

Broadcast

Edit suites

Combining technology from Dynaudio and TC, AIR 20 offers ultimate precision and sound.

The possibility of rotating the Mid-High module offers the flexibility for optimal placement in a wide range of applications.

The Dynaudio AIR 25 Digital Master monitor is the first 3-way design integrating the AIR technology. Combining brand new Dynaudio 221 (two-to-one) technology with cutting-edge digital TC technology, the AIR 20 defines new standards for performance and precision in 3-way powered monitors.

10" woofer, 5.5" midrange and 1.1 soft dome tweeter

192 kHz support via Dual Wire

The new 221 (two-to-one) design - Integrating unique Tweeter and Midrange technology

Bass Management, with selectable frequency crossover points

Advanced Bass Management

Acoustic Placement Compensation

Preset Storage and Recall

Programmable reference levels

Level alignment in 0,1dB steps

All Monitors aligned within +/- 0.2dB precision

Integrated Parametric EQ's and delay in each monitor (only accessible with PC-IP)

Central and Remote control of system and parameters

Direct Digital inputs and Analog inputs (optional)

Networking in-between all AIR components

Dedicated AIR Base subwoofers

Two times 200-watt amp package in each monitor

Model
AIR 25


Model
AIR 25




AIR Monitors (master and slave)




System

Three-way Active Nearfield Monitor



Frequency response (+/- 3 dB)
28 Hz -22 kHz: +/- 3 dB




Peak SPL 1m, pair (IEC Short Term)
134 dB peak



Peak SPL 2m, 5.1 (IEC Short Term)
132 dB peak




Max SPL 1m, (IEC Long Term)
107 dB RMS



Precision of monitor matching

+/- 0.2 dB



Port tuning frequency
35 Hz




Internal cabinet volume
68 litres



Bass principle
Bass reflex




Crossover frequency
400 Hz (DSP generated) and 2400 Hz (DSP generated)



Crossover slope

12/6 dB/Oct, 12/6 dB/Oct



Tweeter
Esotar 28 mm / 1.1" soft dome, neodymium magnet, rear chamber,




Midrange
145 mm / 5,5", one-piece molded polypropylene cone, 38 mm /



Woofer
2x240 mm / 9,5", one-piece molded polypropylene cone, 100




Mains voltage
100 to 240 VAC, 50 to 60 Hz (select)



Power consumption

45 W @ 1/8 max power (IEC 60065)



Finish
-




Amp
Black painted back plate



Cabinet
Black ash with dark gray MDF baffle




Dimensions (H x W x D)
510 x 535 x 450 mm /20" x 21" x 17,7"



Depth incl. amp and driver:

490mm / 19,3"



Weight
46 kg / 101 lbs




Amplifier
-



Tweeter, midrange and woofer
Tweeter 300 W amp/Midrange 300 W amp/Woofer 2x300 W amp




Room & Distance
-




Typical listening distance
TBA



Typical room size
80-150m3 / 2800-5200 ft3




System sample rates
-



Internal sample rate

192 and 176.4 via Dual Wire (optional Digital Card required) and 96, 88.2, 64, 48, 44.1 or 32 kHz



AIR Masters only
-




I/O Connectors
XLR (2 channels AES/EBU in) 3 x RJ 45 proprietary TC Link



Formats
AES/EBU (24 bit)




Word clock input
BNC, 75ohm, 0.6-10 Vpp



Display

2 x 16 character dot matrix



Operation
Menu system / Four buttons




Analog Input options
-



Input connectors
XLR balanced (pin 2+, pin 3-)




Impedance
10/3 k ohm (Balanced/unbalanced)



Selectable Full scale Input level

+9, +15, +21, +27 dBu



Dynamic range
> 113 dB typ. (unweighted), BW: 20-20 kHz




THD+N
< -105 dB typ. @ 1 kHz, -3 dBFS



Crosstalk

< -120 dB, 20 Hz to 20 kHz



A to D Conversion
24 bit (Dual bit delta sigma sampling at 4.1/5.6/6.1/6.1 MHz)





-



I/O Connectors
2 x RJ45 proprietary TC-Link




EMC
-



Complies with

EN 55103-1 and EN 55103-2, FCC part 15 class B, CISPR 22 class B



Safety
-




Certified to
IEC 60065, EN 60065, UL 6500 and CSA E60065 CSA FILE #LR108093



Enviroment
-




Operating temperature
32 F to 122 F (0 C to 50 C)



Storage temperature

-22 F to 167 F (-30 C to 70 C)



Humidity
Max. 90 % non-condensing
