UPC/EAN #5706937617780     MPN #LYD-7

$799.00

Financing available
Free shipping in Canada. Conditions

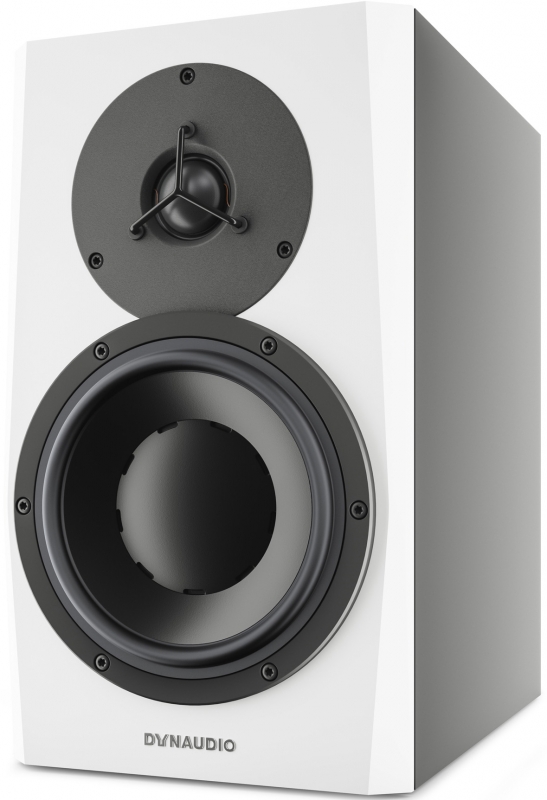

Nearfield monitor with 7" woofer and soft dome tweeter, 50W LF and 50W HF class D amp w/bass extension, white finish



Since the dawn of Dynaudio, craftsmanship has been an integral part of our legacy, and while LYD is a redefinition of our previous monitors, we have not disowned this characterizing trade. The 28 mm Soft Dome tweeter and three differently-sized MSP drive units - depending on model - used for LYD are still handcrafted in our Danish factory near Skanderborg.

Each handmade drive unit is well-cared for: fuelled individually by state-of-the-art Class-D amplifiers featuring 96kHz / 24-bit signal paths that make sure they have enough power to reproduce sound faithfully.

With our extensive research and know-how, we wanted to offer choices and opportunities for musicians, producers, and artists; options that enabled them to mix and edit their music with precision. To do so, we included an advanced DSP with two tuning presets for different setups, Sound Balance filters for adjusting the frequency response, and Bass Extension for moving the bass cut-off to the preferred position.
  • Nearfield Monitor with 7" Woofer
  • Bi-amped speaker design with 2 x 50W and state-of-the-art Class-D amplification
  • Bass extension to extend or curtail the low end frequency response
  • Two different tunings: one for free standing and one designed for speakers within 50 cm of wall
  • Sound balance to influence the overall response of the speaker
  • Made in Denmark
  • Speaker
  • Max SPL (1m, pair): 109dB
  • Principle: Bass reflex
  • Crossover Frequency: 4.3kHz
  • Tweeter: 1inch Soft dome
  • Mid: N/A
  • Woofer: 7 inches
  • Dimensions (W x H x D): 186 x 320 x 296mm
  • Weight: 8kg

  • Sensitivity (85dB @ 1m, free field)
  • +6dB: 50mV
  • 0dB: 100mV
  • -6dB: 200mV

  • Amplifier
  • Power (Tweeter/Woofer): HF 50W/LF 50W
  • Type: Class-D
  • Power consumption standby:
  • Power consumption max.: 100W
  • Input voltage: 90 - 264V AC, 50 - 60Hz

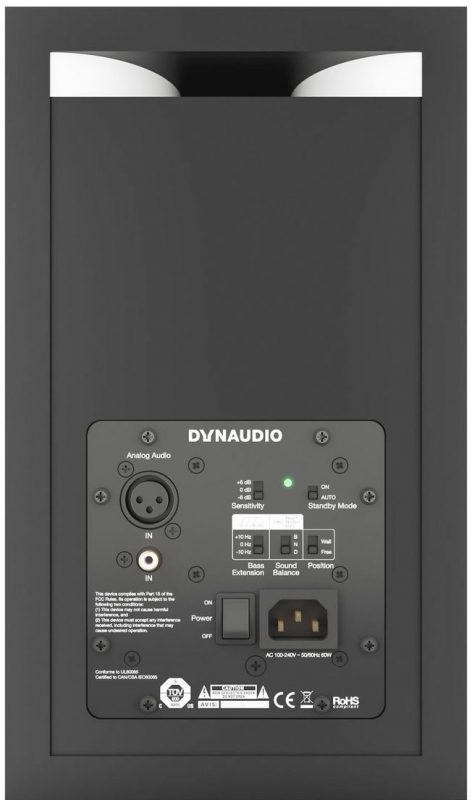

  • Inputs: XLR balanced / RCA unbalanced
  • Outputs: N/A
  • Cut-off frequencies -6dB limits
  • Bass extension +10Hz: 65Hz - 21kHz
  • Bass extension 0Hz: 55Hz - 21kHz
  • Bass extension -10Hz: 45Hz - 21kHz
  • Free field frequency response: 55Hz - 19kHz
