Dynaudio M3VE - Left (Pair)

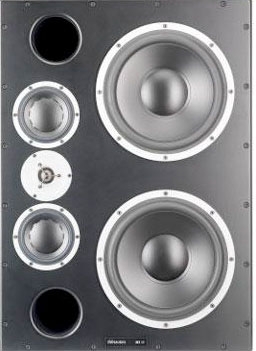

Studio main systems with bi-amped, dual 12" ESOTAR woofers, dual 6" midrange drivers, 1.1" ESOTAR soft-dome tweeter, aluminum voice coil, Left speaker
The Dynaudio Professional M3VE monitor system that takes monitoring to a whole new level with a significant upgrade from its predecessor - the renowned M3A 3-way monitor. Two speakers are powered by a single four channel Lab.gruppen PLM 12k44 amplifier, using the integrated Lake active cross-over between LF and MF, while passively filtering the MF/HF cross-over point.
With Dynaudio ESOTAR² driver technology, M3VE takes over where most other monitor systems give up. Attention to detail, underpinned by a 22Hz - 21kHz frequency response and beyond 133dB SPL, M3VE leaves no room for desire in terms of resolution, range or power.
Unique linear phase frequency responseFrequency Response: 20Hz - 25kHzDual 12" ESOTAR² Woofers, aluminum voice coilDual 6" Midrange drivers, MSP cone, 75mm aluminum voice coil1.1" (28mm) ESOTAR² Soft-dome tweeter, aluminum voice coilMax. SPL (short term peak @ 1m): 133 SPLHeavy internal damping for minimum cabinet resonanceAvailable in Left and Right
System: 3-way Active Main Monitor
Frequency Response (+/- 3 dB): 22 Hz - 21 kHz
Peak SPL 1m, pair (IEC Short Term): > 133 dB peak
Amplifier minimum: 2 x Lab.gruppen PLM10000Q
Resonance Frequency: 24 Hz
Internal Cabinet Volume: 145 liters
Bass Principle: Bass reflex
Amplifier: 1/2 Lab-gruppen PLM10000Q (2 channels pr speaker). Preset: M3VE V05
Tweeter: Esotar² 28 mm soft dome Magnetic fluid, Metal rear chamber, Pure alu wire voice coil, 4 mm die-cast alu front, Neodym magnet material
Midranges: 15 cm with 75 mm diameter pure aluminum wire voice coil, one-piece molded MSP cone
Woofer: Esotar 30 cm with 75 mm diameter pure copper wire voice-coil, MSP-cone, long stroke
Weight: 65 kg
Dimensions (WxHxL): 555 x 775 x 505 mm
Cabinet: 25mm MDF, strategically braced and damped. Low turbulence reflex-ports. Separate chambers for each woofer.
Crossover: Woofers/hightone: active dsp-based, in-amp Lake processor. Midrange/tweeter: passive wir air-coils only, low dielectrium capacitors and zero-compression resistors.
