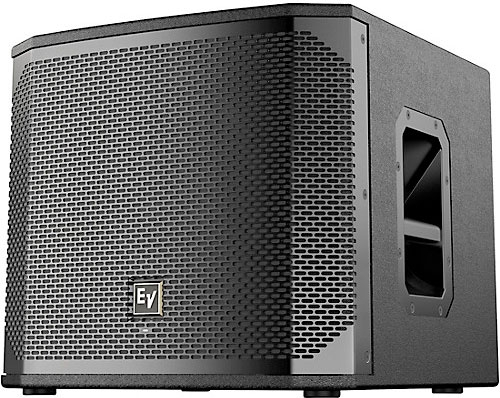

ELX200-12SP features high-efficiency Class-D power amps (up to 1200 W) w/ integrated QuickSmartDSP, and delivers up to 129dB SPL utilizing transducers designed & engineered by EV.
Powered subwoofer models allow easy setup via three presets (Music, Live, Club), sub/top system-match crossovers, three-band EQ, five user-programmable presets (Store and Recall settings), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure. ELX200 powered models are ideal for portable and installed applications, with lightweight and compact 15-mm wood enclosures, integrated M20 threaded pole polemount plate, and two-handle design for easy lifting.
The new QuickSmart Mobile wireless control and monitoring application, using Bluetooth® Low Energy (BTLE) technology, allows intuitive system control, configuration and monitoring of up to six powered ELX200 loudspeakers simultaneously. Receive alerts when your system is being overdriven, and control your system while in front of your speakers, not behind. Bluetooth® is available in select countries.
EV QuickSmart Mobile application
Quickly and wirelessly configure, control and monitor up to six ELX200 loudspeakers simultaneously, and receive immediate notification during critical performance conditions. Bluetooth® is available in select countries.
Best-in-class processing. Easy setup via four presets, sub/top system-match, three-band EQ, five user-programmable presets, visual monitoring of limiter status, input level control and meters, and master volume control to optimize gain structure, all via LCD.
High-efficiency 1200 W Class-D power amplifier
Delivers up to 130 dB peak SPL utilizing transducers designed and engineered by EV.
EV-patented Signal Synchronized Transducers (SST)
Waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
Three M10 threaded mounting points for forged eyebolts, integrated pole-mounts and the proven ZLX two-handle design for easy lifting.
Frequency response (-3 dB): 49 Hz - 135 Hz¹ Frequency range (-10 dB): 41 Hz - 165 Hz¹ Maximum SPL: 129 dB² Power rating: 1200 W LF transducer: EVS-12L 300 mm (12 in) Low-Pass frequency: Adjustable: 80 Hz, 100 Hz, 120 Hz, 150 Hz Connectors: (2) XLR/TRS combo jacks and (2) XLR link outputs Enclosure: 15 mm plywood with EVCoat Grille: 18 AWG steel with powdercoat Color: Black Dimensions (H x W x D): 397 mm x 445 mm x 457 mm (16.7 in x 17.6 in x 18.0 in) Net weight: 19.1 kg (42.2 lb) Shipping weight: 22.3 kg (49.2 lb) Power consumption: 100 - 240 V~, 50 - 60 Hz, 1.8 A³
¹ Full space measurement using music DSP preset. ² Maximum SPL is measured at 1 m using broadband pink noise at maximum output. ³ Current rating is 1/8 power.
