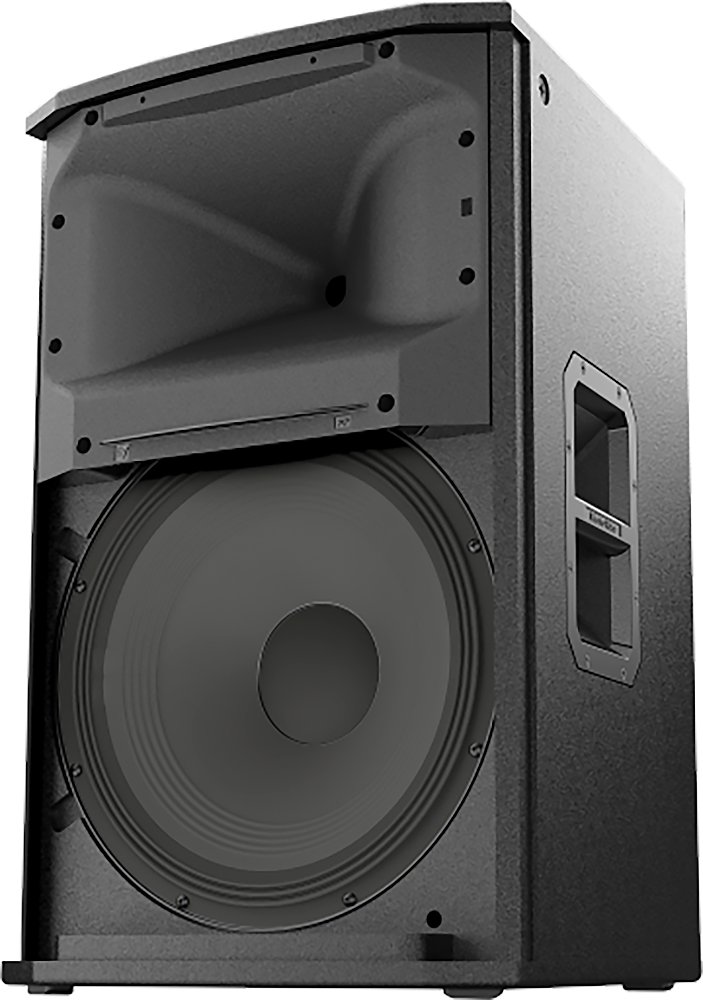

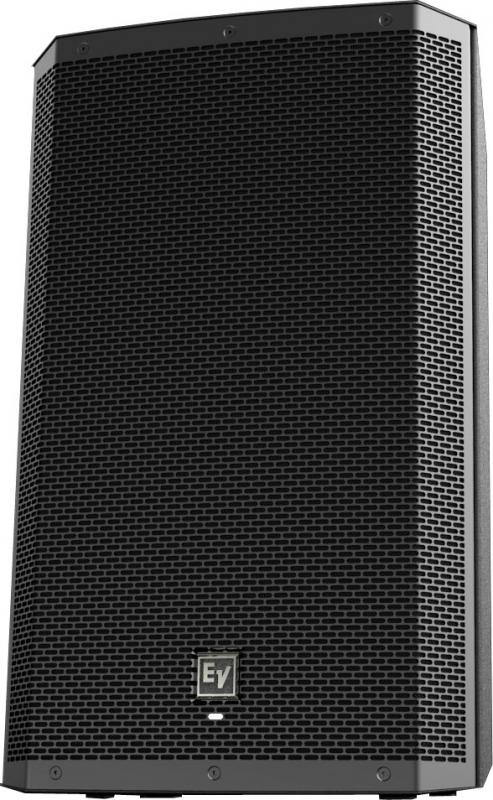

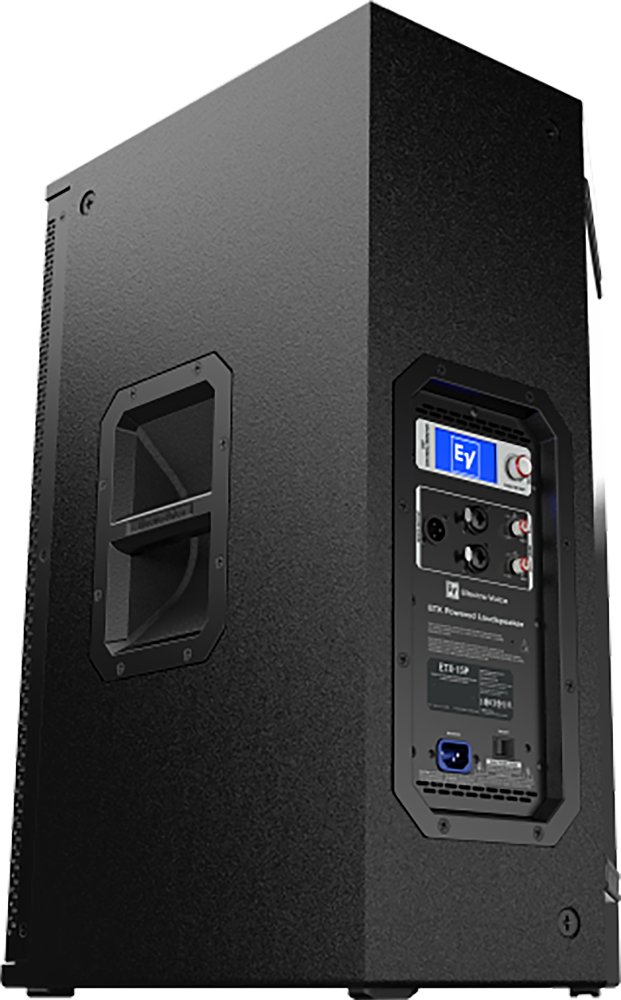

The ETX15P is a 15" Two-Way Powered Loudspeaker. Designed, engineered, tested and assembled for ultimate reliability by Electro-Voice.
The ETX Powered Loudspeaker family builds upon the industry-leading innovation and 85-year heritage of Electro-Voice audio engineering to offer the most advanced professional-grade products for an array of applications.
A versatile high-end choice for live entertainment venues, rental companies, pro musicians and DJs, and installed sound, the family offers technologies from EV concert/touring systems. Three two-way models, a three-way model and two subs are available.
The ETX Powered Loudspeaker family extends the awardwinning industrial design introduced by Electro-Voice in 2013. Inside each low-profile, tour-grade wood enclosure are a range of unique new features that set the family apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EVengineered high-efficiency transducers and high-powered Class-D amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIR-Drive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
15-inch LF SMX woofer
1.25-inch HF titanium compression driver
2000 W Class-D power amplifier with integrated FIR-Drive DSP
135 dB peak SPL
Frequency Response (-3 dB): 48 Hz - 20 kHz¹ Frequency Range (-10 dB): 40 Hz - 20 kHz¹ Maximum SPL: 135 dB peak² Coverage (H x V): 90° x 60° Power Rating: 2000 W LF Transducer: SMX2150 380 mm (15 in) HF Transducer: DH3-B 1.25-in titanium compression driver Crossover Frequency: 1500 Hz Connectors: (2) XLR/TRS combo jack and (1) XLR link output Enclosure: 18 mm, 13-ply birch plywood with EVCoat Grille: 16AWG steel with powdercoat Suspension: (8) M10 suspension points Dimensions (H x W x D): 691 mm x 431 mm x 447 mm (27 in x 17 in x 18 in) Net Weight: 27.7 kg (61.1 lb) Shipping Weight: 31.5 kg (69.5 lb) Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A3
¹ Full space measurement using the music DSP preset. ² Maximum SPL is measured at 1 m using broadband pink noise at maximum output. ³ Current rating is 1/8 power.
