Electro Voice ETX15SP
UPC/EAN #800549769334
MPN #ETX-15SP-US

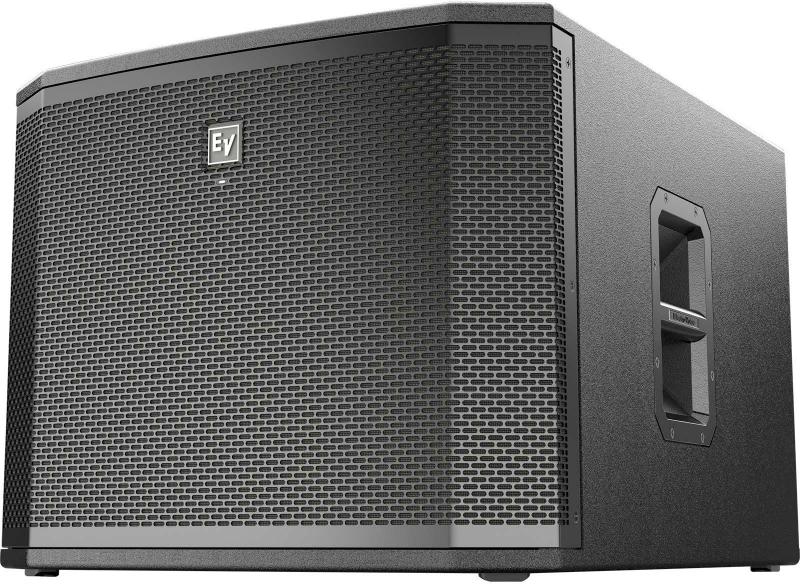

The ETX15SP is a 15" Powered Subwoofer. Designed, engineered, tested and assembled for ultimate reliability by Electro-Voice.
The new ETX family builds upon the industryleading innovation and 85year heritage of ElectroVoice audio engineering to offer the most advanced professional portable powered loudspeakers available today.
A versatile highend choice for live entertainment venues, rental companies, pro musicians and DJs, and installed sound, the ETX family features three twoway models (10inch, 12inch and 15inch, all with a precision HF titanium compression driver), a threeway model (15inch with a 6.5inch MF driver and a precision HF titanium compression driver) and two subs (15inch and 18inch drivers).
Positioned above the ZLX and Live X families respectively, ETX completes a trio of recent EV portable loudspeaker offeringseach of which was designed to bring bestinclass performance to its price point.
Inside each lowprofile, tourgrade wood enclosure are a range of unique new features that set ETX apart, combining intelligent technology and innovative industrial design for spectacular results across all applications. EVengineered highefficiency transducers and highpowered ClassD amplifiers, Signal Synchronized Transducers (SST) waveguide design and smart FIRDrive DSP all work together to provide peerless EV sound quality and precise coverage at the highest SPLs.
Features
15-inch DVX woofer for maximum punch1800 W Class-D power amplifier with integrated FIR-Drive DSP134 dB peak SPLSpecial DSP preset for true cardioid performance across the full operating bandwidthCombo pole cup (insert and threaded) for use with the ETX Powered Loudspeaker full range modelsRemovable casters
Specifications
Frequency Response (-3 dB): 37 Hz - 150 Hz¹
Frequency Range (-10 dB): 32 Hz - 180 Hz¹
Maximum SPL: 134 dB peak²
Power Rating: 1800 W
LF Transducer: DVX3159A 380 mm (15 in)
Low Pass Frequency: Adjustable 80 Hz, 100 Hz, 120 Hz, 150 Hz

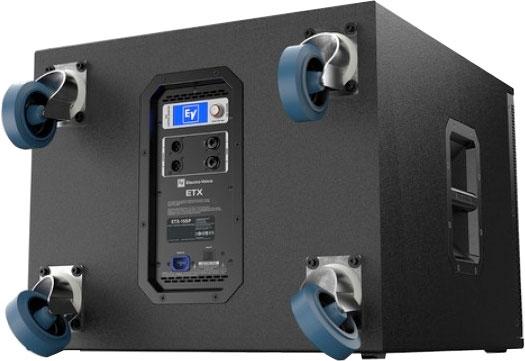

Connectors: (2) XLR/TRS Combo Jack and (2) XLR link Output
Enclosure: 18 mm, 13-ply birch plywood with EVCoat
Grille: 16AWG steel with powdercoat
Dimensions (H x W x D): 471 mm x 576 mm x 825 mm (19 in x 23 in x 32 in)
Dimensions (H x W x D): without casters ,471 mm x 576 mm x 692 mm (19 in x 23 in x 27 in)
Net Weight: 41.7 kg (91.9 lb)
Shipping Weight: 46.8 kg (103.2 lb)
Power Consumption: 100 - 240 V~, 50 - 60 Hz, 1.6 - 0.8 A³
¹ Half space measurement using the music DSP preset and 150 Hz low pass.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum amplifier output.
³ Current rating is 1/8 power.
