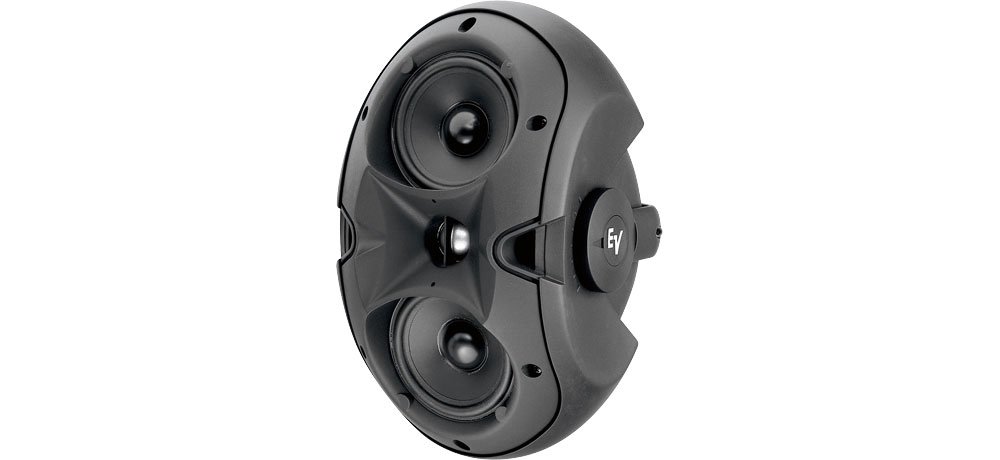

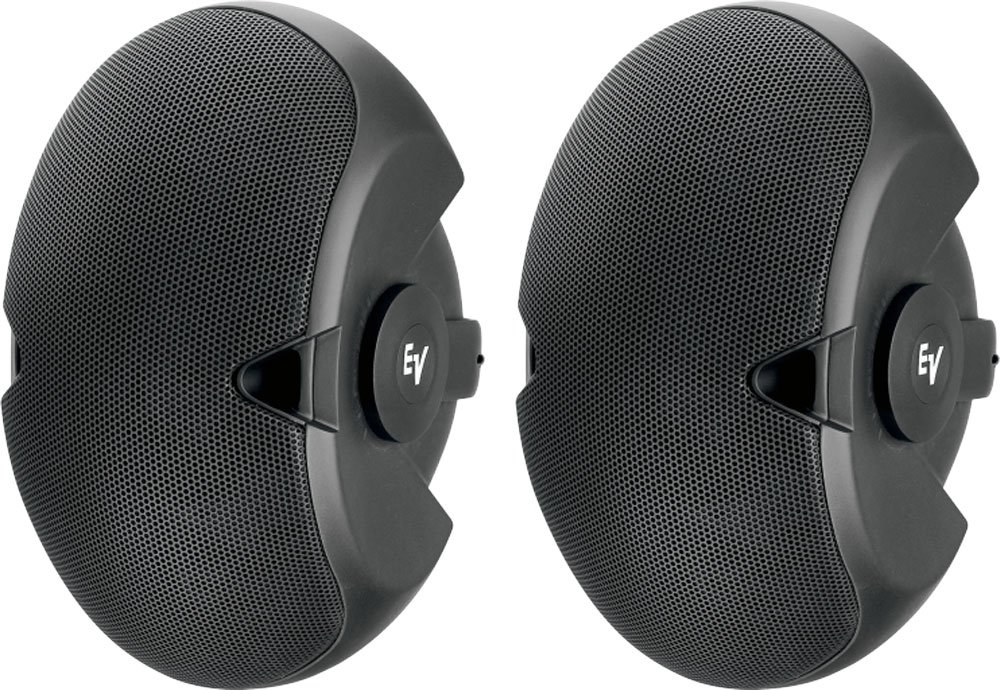

Electro Voice EVID 4.2 (Pair)
MPN #F.01U.117.528
Compact, full-range sound, 65Hz"20kHz response, 200W handling, 89dB sensitivity, 120 x 80 coverage, 8 ohm, IP34 weather resistance, dual 4" LF drivers
The Electro-Voice EVID 4.2 is a compact, full-range loudspeaker designed to deliver high-quality sound in both indoor and outdoor environments. With a sleek and unobtrusive form, it's ideal for background and foreground music applications in venues such as restaurants, patios, bars, and retail spaces. Its innovative design includes a three-dimensional elliptic baffle and line-array-enhanced coverage control, which together ensure wide and consistent sound dispersion. The mounting system, known as the Strong-Arm Mount?, allows for flexible and precise aiming in both horizontal and vertical directions.
Equipped with dual 4-inch low-frequency drivers and a 1-inch titanium high-frequency transducer, the EVID 4.2 offers rich bass, clarity at higher frequencies, and overall high sensitivity. It's engineered to handle 200W of continuous power and up to 400W peak, with a frequency response of 65 Hz to 20 kHz. The speaker also includes full-bandwidth overload protection and is magnetically shielded. Built with weather-resistant materials and compliant with MIL Spec 810 and IEC 529 IP 34 standards, it's well-suited for durable performance. Available in black or white (and paintable), and with transformer versions for 70V/100V systems, this speaker offers both performance and versatility in a stylish, discreet package.
Features
Compact and stylish design that blends easily into indoor or outdoor environments.Delivers high-quality sound for background or foreground music in places like restaurants, bars, and retail spaces.Dual low-frequency drivers provide deeper bass and higher output performance.Wide sound coverage with enhanced control through a line-array design.Flexible mounting system allows easy adjustment both vertically and horizontally.Weather resistant and suitable for outdoor use, conforming to military and international splashproof standards.Built-in full-bandwidth overload protection ensures reliable performance.Available in black or white, with paintable surfaces to match any décor.Transformer versions support 70V/100V systems for broader installation compatibility.Includes safety features like a hidden leash and magnetic shielding for added protection.Optional accessories like desk stands and weatherized terminal covers available for customization.
Specifications
General Specifications
Type: Compact 2-way full-range loudspeakerApplication: Indoor/outdoor background/foreground musicMounting: Wall mount (Strong-Arm-Mount? system)Color Options: Black or white (paintable)
Acoustical Specifications
Frequency Response (-10 dB): 65 Hz " 20 kHzPower Handling: 200W Continuous Program / 400W PeakSensitivity: 89 dB (1W/1m)Impedance: 8 ohms nominal, 6 ohms minimumMax SPL: 113 dBHorizontal Coverage: 120Vertical Coverage: 80Crossover Frequency: 2.2 kHz
Transducers
LF Transducer: 2 x 4" (100 mm)HF Transducer: 1" (25 mm) Ti diaphragm, neodymium
Construction
Enclosure Material: ABS, paintableGrille: Zinc-plated, powder-coated with safety leashDimensions (H x W x D): 12.2" x 6.9" x 8.5" (310 mm x 175 mm x 216 mm)Net Weight (each): 8.5 lbs (3.9 kg)Shipping Weight (pair): 19 lbs (8.6 kg)
Mounting and Aiming
Swing x Rotation: 100 x 90Mounting Bracket: Integrated low-profile bracket
Terminations and Taps
Input Terminals: Phoenix connectorTransformer Version Wattage Taps: 70V: 3.75W / 70V/100V: 7.5W, 15W, 30W8-ohm bypass
Weather Resistance
MIL Spec 810 (humidity, salt spray, temperature, UV)IEC 529 IP34 (splashproof)
Included Accessories
Strong-Arm-Mount? (SAM?)Hex key
Optional Accessories
HS-3: Horizontal Mount Desk Stand for 3.2/4.2VS-4: Vertical Mount Desk Stand for 4.2AB-ZE: Array Bracket Kit for ZX1i or EVIDTC-4B/W: Weatherized Terminal Cover (Black/White)
Performance Match
Compatible Subwoofer: EVID 12.1 Sub
