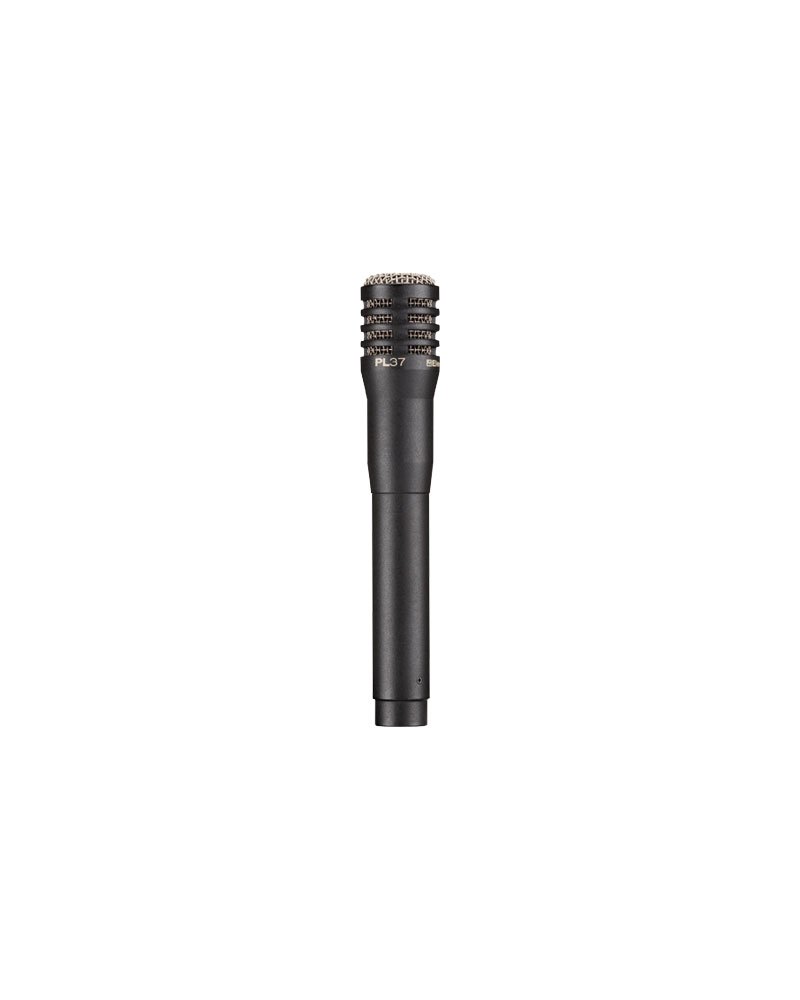

Electro Voice PL37
MPN #PL37
$143.00
Save 18.3%, MSRP $175.00
Cardioid condenser, 50"16 kHz, voiced for overheads/hi-hat, 132dB SPL, 107dB dynamic range, small diaphragm, crisp transients, studio/live use
The PL37 is a small-diaphragm condenser microphone designed to deliver crisp, detailed capture of drum overheads, hi-hats, and acoustic stringed instruments. With a tight cardioid polar pattern, it provides focused pickup and excellent isolation, making it ideal for both stage and studio environments.
Voiced to highlight percussive transients and high-frequency detail, the PL37 offers the precision needed for cymbal work and nuanced instrument tones. Its Memraflex grille ensures durability, and the die-cast zinc construction provides lasting reliability.
Features
Crisp Detail for Cymbals and Strings: Voiced for drum overheads, hi-hats, and acoustic instruments with precise, high-frequency capture.Small-Diaphragm Condenser Element: Delivers accurate transients and natural tone ideal for percussive sources.Tight Cardioid Pattern: Focuses on the intended source while minimizing ambient stage or room noise.Handles Loud Sources Cleanly: Maximum SPL of 132 dB ensures distortion-free performance with energetic playing.Wide Frequency Response: Covers 50 Hz to 16,000 Hz for a full-range sound with plenty of brightness and body.Rugged and Reliable Build: Die-cast zinc body and tight-mesh Memraflex grille offer durability in studio and live use.Phantom Powered: Operates on 11 to 52 VDC - compatible with most standard mixer and interface setups.
Specifications
General Specifications
Microphone Type: Condenser (self-biased)Application: Overheads, hi-hat, acoustic stringed instrumentsPolar Pattern: CardioidWired/Wireless: WiredSeries: PL SeriesConnector Type: 3-pin XLRPower Requirement: 11 to 52 VDC phantom power
Acoustic & Electrical Performance
Frequency Response: 50 Hz - 16,000 HzMaximum SPL (1% THD): 132 dBDynamic Range: 107 dBOpen Circuit Voltage: 6 mV/PaImpedance: 200 ohms (Low-Z balanced)
Design & Construction
Capsule: Small-diaphragm condenserHousing Material: Die-cast zincFinish: Textured satin blackGrille: Tight-mesh Memraflex grille
Physical Dimensions
Net Weight: 6.21 oz (176 g)
