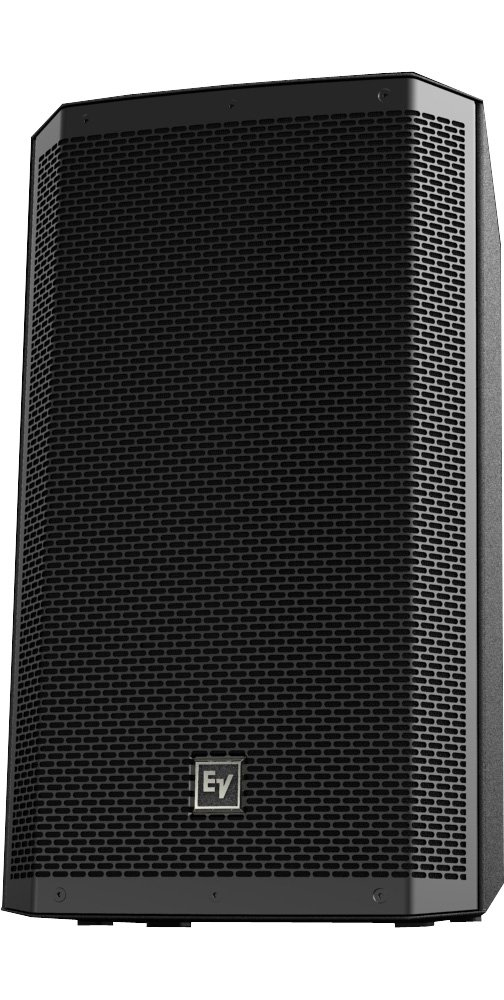

Electro Voice ZLX-12
UPC/EAN #800549697514
MPN #ZLX-12
$549.00
Save 45.2%, MSRP $1001.00
12" 2-Way passive speaker
The ELX series is designed to deliver an unprecedented combination of sound quality, portability and durability at its price point. All-new custom components"tested to levels far exceeding the industry norm"make ELX200 a robust workhorse capable of handling real- world abuse and professional applications beyond the capability of competitors? products in its category. Every aspect of ELX200 is designed for ideal results as part of the whole - the acoustical, electrical and mechanical components all work together seamlessly. The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well as structural integrity. The proprietary features that have made the other members of the EV portable speaker family a go- to for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept. EV's industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system?s highest output levels. Translation: loud and clear all the way up to the limit. Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness - both acoustically and physically; maximum efficiency with maximum toughness.
Features
12? woofer for low-end punch in a compact enclosure and 1.5? high-frequencytitanium compression driver55 Hz " 20 kHz frequency range250 W continuous and 1000 W peak power handling95 dB SPL sensitivity; 125 dB max SPL.8 lbs (14.9 kg)
Specifications
Frequency Response: 82 Hz - 18 kHz¹
Frequency Range: 55 Hz - 20 kHz
Axial Sensitivity: 95 dB
Maximum SPL : 125 dB
Recommended HP Frequency: 40 Hz
Coverage (Hort. x Vert.): 90° x 60°
Power Handling: 250 Watts Continuous, 1000 Watts Peak
LF Transducer : EVS-12K, 300 mm (12 in) Woofer
HF Transducer: DH-1K
Crossover Frequency: 2.1 kHz
Nominal Impedance: 8 ?
Minimum Impedance: 7 ?
Connectors: Dual NL4
Enclosure: Polypropylene
Grille: 18 Gauge Steel with Black Powder Coat
Dimensions: (H x W x D) 610 mm x 356 mm x 356 mm (24 in x 14 in x 14 in)
Net Weight: 14.9 kg ( 32.8 lb)
Shipping Weight: 18.0 kg ( 39.6 lb)
