UPC/EAN #800549638449     MPN #ZXA1-SUB-120V

$749.00

Save 21.7%, MSRP $957.00
Financing available
This product is not available online. Learn more

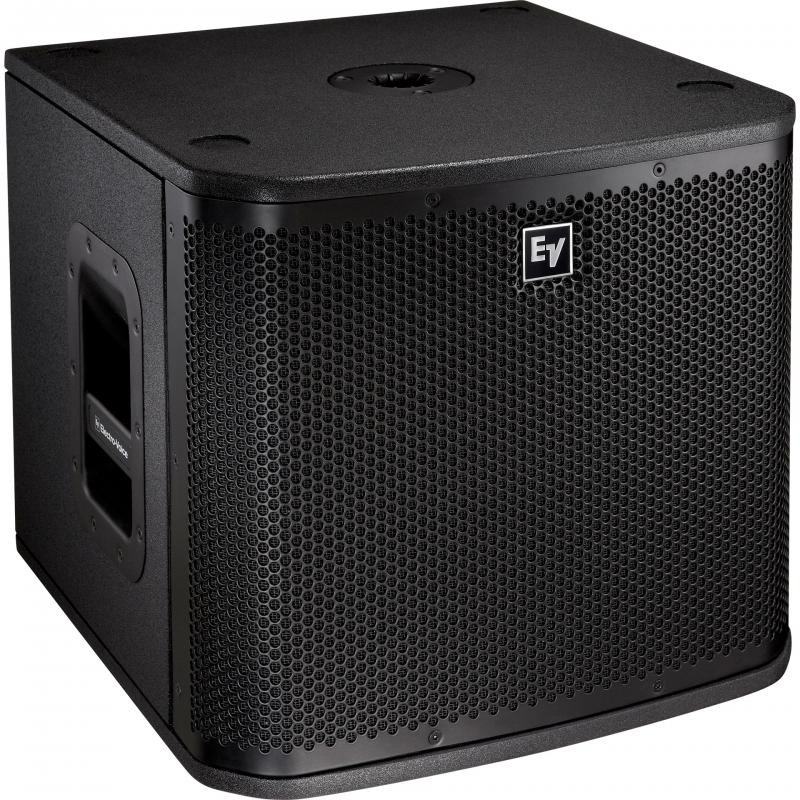

Extending the ZXA1's size-defying performance and sleek styling into the low-end realm, the ZXA1-Sub packs 700 W of self-powered punch into a low-profile wood enclosure.



Match ZXA1 with ZXA1-Sub and hear just how big a small rig can sound, whether you want to add a tight thump to a DJ set or give the highs and mids some breathing room in a live performance.
  • 15mm Plywood Enclosure, Internally Braced, with Textured Paint
  • EVS-12S 305mm (12") Woofer for Powerful, Engaging Bass Response
  • Class D Lightweight Amplifier
  • Pole Mount for Full-Range Systems
  • Dual XLR Inputs and Outputs
  • Switchable EQ Modes for Different Applications
  • LED indicators for Power On and Limit
  • Freq. Response (-3dB): 53Hz-93Hz¹
    Freq. Range (-10dB): 44Hz-118Hz¹
    Max. Measured SPL: 126dB¹, ²
    Coverage (Horiz. x Vert.): Omnidirectional
    Power Rating: 700W
    LF Transducer: (1) EVS-12S, 305mm (12") Woofer
    Crossover Frequency: 100Hz
    Connectors: (2) XLR Stereo Input, (2) XLR Stereo Output
    Enclosure Material: 9-ply, 15mm Plywood, Internally Braced, with Textured Paint
    Grille: 16GA Steel with Black Powdercoat

    Mains Requirements
  • 120V: 90V-132V, 1.0A³ , 50-60Hz
  • 230V: 190V-264V, 0.6A³, 50-60Hz

  • Dimensions (H x W x D): 400mm x 444.5mm x 457.2mm (15.75" x 17.50" x 18.00")
    Net Weight: 20.9kg (46.0lbs)
    Shipping Weight: 26.5kg (56.5lbs)

    ¹ Half-Space
    ² Typical maximum SPL value at one (1) meter over the usable frequency range. measured with a pink-noise burst signal, using internal signal processing and amplifier driven to peak output.
    ³ 1/8 power
