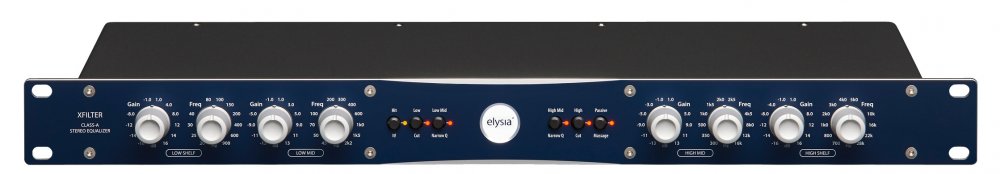

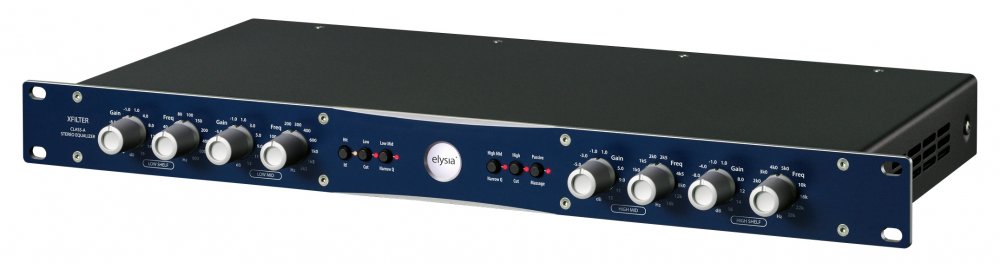

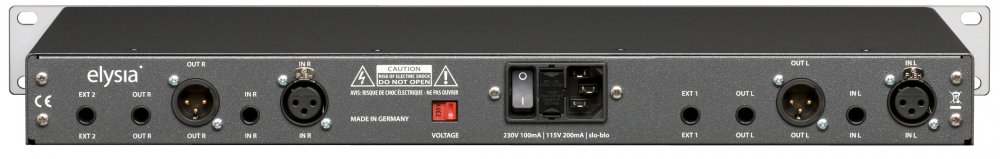

Elysia Xfilter

The Elysia Xfilter is a true linked stereo equalizer with the heart and soul of our flagship EQ, the museq. 100% Class-A Topology and loaded with high quality components.

It gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package, with a precise stereo image based on computer-selected, stepped pots and low tolerance film caps.

This EQ is serious about flexibility. It offers high and low shelf bands which can be switched into high and low cut filters with resonance, two mid peak filters with wide and narrow Q, plus additional passive LC stages with shielded coils for a glorious top end.

With its exceptionally open sound, straight transient projection and solid punch, the xfilter is the perfect match for your xpressor - or any other piece of delicious outboard gear!
100% Class-A Topology
Discrete input, output and mix stages plus the complete audio path running in constant class-A mode are the basis for an exceptionally transparent, wide and open sounding EQ.

True Stereo Operation
As one of the few exceptions in the market, the xfilter processes both of its channels with just one set of controllers - a true stereo linked EQ.

Resonance High & Low Cut Filters
The shelving filters can be switched into high and low cut filters with an additional resonance peak. Not ordinary, but extremely useful.

Switchable Filter Quality
The quality of the peak filters can be switched from a wide to a narrow Q factor which remains independent from the setting of the gain controller.

Additional Passive High-Band
The beautiful sheen only passive filters can deliver... the xfilter has it all. An additional LC filter with shielded coils gives you the 'Passive Massage'.

Stepped Controllers
All potentiometers on the xfilter have 41 steps, which is a great help for recalling your previous sessions fast and precisely.

Computer-Selected Potentiometers
Every single dual and quad layer pot we buy is measured with custom computer routines, and only the good ones go into production.

Special Low Tolerance Capacitors
The special series of film caps used for the xfilter performs twice as good as the industry standard in terms of component tolerance.

Ground Layer Shield
One of the four layers of both PCBs is a full copper plane which helps to reduce interferences caused by electric fields.

Technical Data
You are interested in learning more about typical measurements and technical specifications of the xfilter This is the right place to check.
  • Frequency response: <10 Hz - 400 kHz (-3.0 dB)
  • THD+N @ 0 dBu, 20 Hz - 22 kHz: 0.0018 %
  • THD+N @ +10 dBu, 20 Hz - 22 kHz: 0.005 %
  • Noise floor, 20 Hz - 20 kHz (A-weighted): -98 dBu
  • Dynamic range, 20 Hz - 22 kHz: 120 dB
  • Maximum input level: +21 dBu
  • Maximum output level: +21 dBu
  • Input impedance: 10 kOhm
  • Output impedance: 68 Ohm
  • Reviews
    Michael Marton
    Vancouver, B.C.
    June 2, 2016
    XFilter Rocks!
    Just so pleased with this unit. Sound is great, once I have it on a source I hate to take it off. I use it for tracks, mixbuss and mastering. Really well thought out and the high band is magic on the right material. Resonance boost brings body to your bass as well. Louis at Economik was great to deal with as well!!!!
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the Xfilter, please visit the website of Elysia
