Information

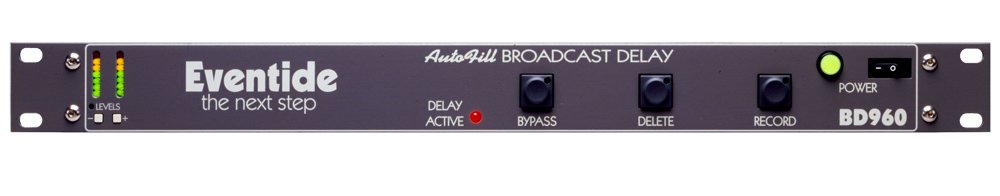

Broadcast audio delay with fully adjustable 8-second delay, one-button delete and autofill built-in filler playback

Practical And Economical Obscenity Protection
Whether you are a station servicing a smaller market or you are broadcasting a shock jock in the big city, the remarkably inexpensive BD960 is ideal for safe-guarding for your live audio broadcast needs. Any station that ever plans a live call-in or even slightly risky in-studio guest will benefit from having a BD960 delay unit in its protective arsenal.

You're on the air, and someone has just opened his or her big mouth a little too wide. Don't Panic!
Just hit the Delete button, and the obscene caller or out-of control studio guest never reaches the air. The Delete function also closes a relay contact. With an easily built relay box, this can automatically start a six (or three or twelve) second cart - a short program promo, a station ID, a funny "zapper," anything you want. When the delay period "plays out," your delay switches you back "almost live" on the air with full delay protection restored. The whole operation takes just one button. What could be simpler

What could be simpler, indeed!
How about "no need for an easily built relay box or filler cart" With the BD960, you need no relay, no filler cart - because filler playback is built into the unit! The BD960 AutoFill? Broadcast Delay has a built-in memory to store material to use to fill those embarrassing silences while the delay period is regained. Since the memory is non-volatile, you don't have to worry about losing it in a power failure; since it's fully electronic, you don't have to worry about loss of quality as it gets played and played and played. And, perhaps best of all, since it doesn't add to the cost of the unit, you don't have to justify paying extra for the feature!

Features

Some choices you don't have to make...
Previous BD900-series models required you to specify mono or stereo and the delay length at the time of ordering. But you don't have to make these choices with the BD960. ALL units are stereo, ALL have a maximum delay of eight seconds, adjustable to any value up to the maximum. And with the low cost of the BD960, you don't need to choose whether to run unprotected on incidental programs, remotes, or on other occasions. Sure, if you're a heavy talk station, you will probably want our world-standard BD500 delay with its patented "catch up" feature and ability to unobtrusively build up delay with no program interruption. But any station that ever plans a live call- in or even slightly risky instudio guest will benefit from having a BD960 delay unit in its protective arsenal.
  • One Button Delete
  • Full Stereo
  • 8 Second, Fully Adjustable Delay
  • Autofill Built-In Filler Playback
  • Non-Volatile Digital Memory
  • Industry Standard XLR-Type I/O
  • Compact 1-U Design
  • RS-232 Serial Interface

  • You can't say that on the radio...
    But people who know that sometimes slip, and many enjoy testing limits. Recent changes and decisions at the FCC have made it more risky than ever to be risqué, and libel lawsuits and penalties in the U.S. and other countries can be more costly than FCC fines. With its spectacular audio specifications, the BD960 lets you control these risks with maximum convenience for you and transparency for your listeners.

    Specifications

    Analog Input
    Audio Input Connectors: 2 XLR female balanced line
    Input Impedance: 10K ohms bridging
    Input Level: -6 dBm to +25 dBm, adjustable +/- 10dB

    Analog Output
    Audio Output Connectors : 2 XLR male balanced line
    Output Impedance: Less than 50 ohms, balanced, for driving 600 ohm load
    Output Drive: Output amplifier clipping level > +25dBm

    A/D and Digital Signal Path Characteristics
    A/D/A Conversion: 24-bit
    Dynamic Range: >100dB
    Sampling Rate: 48kHz
    Frequency Response: 10Hz - 22kHz +/- 1dB
    Crosstalk: <-95dB
    THD/N: <0.008%

    Recorded Signal ("Filler Cart") Specifications
    Length: Up to 8 seconds stereo
    Dynamic Range: >100dB
    Sampling Rate: 24kHz
    Frequency Response: 10Hz - 11kHz +/- 1dB
    THD/N: <0.005%

    Physical
    Width: Standard 19" (48.26cm) rack
    Height: Standard 1u (1 3/4" / 4.44 cm) rack mount
    Depth Behind Panel: 10.5"/26.67cm excluding connectors
    Temperature Range : 40-120 deg F (5-49 C)
    Power Requirement: Less than 25 watts, 100-240 volts universal power supply
