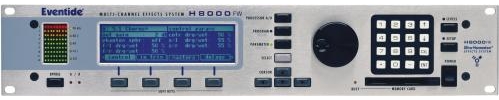

Eventide's Most Powerful Effects Processor Ever. Featuring 1,800 post-production and music effects preset-algorithms, never before has Eventide unleashed so much creative power.



The H8000FW offers four channels of pristine analog I/O combined with eight channels of AES/EBU, ADAT, and S/PDIF I/O. New FireWire I/O now allows direct connection to your Mac or PC so you can directly patch 24-bit audio to and from the eight inputs and outputs.

The analog inputs feature either guitar-friendly ¼" hi impedance input jacks or XLRs. The H8000FW also offers remotely switchable true bypass.

Digital Effects Workstation - Create your own algorithms
With the H8000FW you will run out of ideas before you run out of DSP power. With our catalog of over 230 effects modules, you can create effects never before thought of either from the front panel or using the supplied development tools for PC or OS X. Whether creating your own unique signature effect or dialing up one of our studio standard effects from the plethora of preset-algorithms, you will never run out of creative possibilities.

Post-Production And Broadcast Essentials - The complex made simple
The H8000FW is chock full of our best post-production effects, including: CB Radio, Cellular Phone, Long Distance, Random Dialer, Off Hook!, Real Dialer, Megaphone, Shortwave Radio, Traffic Report, Radio, Intercom, Public Address, Fries With That, Office Intercom, Sound Truck, Talking Dashboard, Clock Radio, Bullhorn, Airplane Background, Jet Flybys, TankAttack, Mortar Shells, Stormwatch, TV in Next Room, Boom
Box, to name a bunch.

Also included are templates for eight precision delays for multichannel video post applications, and tools specifically designed to facilitate 5.1 frame rate conversion and its associated problem of pitch correction, along with a dedicated channel for time code delay.

Control Freak
The H8000FW offers everything you need to control its parameters and functions from a remote. If you are on stage, the H8000FW offers full MIDI control or analog control. ¼" inch TRS jacks accept up to two external foot pedals, up to six external foot switches, or a combination. If you are on the mixing stage, or behind the console, Eventide's EVE/NET™ remote brings all the control and graphics display of the front panel, along with eight continuous controllers, to the sweet spot of your choice.

5.1 Reverb And Effects Extraordinaire
The H8000FW is packed with 5.1 halls, chambers, rooms, booths, ambient spaces, and plates, as well as a full tool kit of multichannel effects. Included are eight individually adjustable sets of straight delays, modulated delays, ribbon delays, reverse delays, panning delays, diatonic shifters, flangers, EQs, phasers, tremolos, and filters.

And Now Midi Virtual Racks - Stacked effects with instant program change
The H8000FW offers twenty MIDI Virtual Rack preset-algorithms, featuring up to five full-blown effect processors ganged together. Each preset offers ten different tweaks which can be programmed, stored, and controlled in real time through MIDI. Up to forty-five different parameters can be controlled with one MIDI control message. Individually optimized for guitar, vocals, or percussion and designed with performance in mind. Single effects blocks are also offered as separated presets so that effect chains can be assembled using VSIG.

Oodles Of Sample/Delay Memory
The H8000FW offers 174 seconds of mono or 87 seconds of stereo, leaving you plenty of time for looping and flying in choruses. It can be used in conjunction with the arsenal of effects. The H8000FW offers fast, precise triggering.

The Long And The Short Of It - 8 channels of time compression/expansion
Eventide's Timesqueeze® algorithm has been proven in the demanding arena of broadcast production. If you need to time compress or expand your 5.1 audio for an HD broadcast, our new phase-locked 8 channel Timesqueeze is fast, simple, and sounds great.

Specifications

Digital Interfaces
Sample Rates: 96kHz, 88.2kHz, 48kHz, 44.1kHz via FireWire, AES/EBU, S/PDIF, ADAT, or word clock
DIGITAL Inputs/Outputs
  • AES DB-25: 8 channels of AES 24-bit at 44.1kHz - 96kHz
  • AES XLR: 4 channels of AES at 44.1kHz - 96kHz with sample rate conversion and relay bypass at power down
  • Lightpipe (Toslink): 8 channels of ADAT (4 channels at 96kHz with S/MUX) or 2 channels of S/PDIF at 44.1kHz/48kHz
  • FireWire: 8 channels of 24-bit at 44.1kHz - 96kHz
  • FireWire thru for daisy-chain connection to other FireWire devices


  • Analog Inputs
  • 4 XLR INPUTS
  • 2 High Impedance ¼" INPUTS

  • Impedance: 20 K Ohm (bridging)
    Full Scale Input Level: 26 dBu
    Dynamc Range: >110dB
    Signal-to-Noise Ratio: >110dB, A-weighted
    Crosstalk: <-110dB @ 20Hz to 20kHz, -1dBFS

    Frequency Response/Sample Rate
    +0/-0.1dB @ sample rate
  • 44.1kHz: 20Hz - 20kHz
  • 48kHz: 20Hz - 22kHz
  • 88.2kHz: 20Hz - 41kHz
  • 96kHz: 20Hz - 44kHz

  • +0/-3.0dB @ sample rate
  • 44.1kHz: 5Hz - 21kHz
  • 48kHz: 5Hz - 23kHz
  • 88.2kHz: 5Hz - 42kHz
  • 96kHz: 5Hz - 45kHz

  • Analog Outputs
    Outputs: 4 XLR OUTPUTS
    Impedance: < 50 Ohm bridging
    Dynamic Range: >110dB
    Signal to Noise Ratio: >110dB, A-weighted
    THD+N: < 0.002% @ 1kHz, 3dBFS
    Crosstalk: <-110dB @ 20Hz to 20kHz, -1dBFS

    Frequency Response Sample Rate using "Thru" Preset
    +0/-0.1dB @ sample rate
  • 44.1kHz: 20Hz - 20kHz
  • 48kHz: 20Hz - 22kHz
  • 88.2kHz: 20Hz - 41kHz
  • 96kHz: 20Hz - 44kHz

  • +0/-3.0dB @ sample rate
  • 44.1kHz: 5Hz - 21kHz
  • 48kHz: 5Hz - 23kHz
  • 88.2kHz: 5Hz - 42kHz
  • 96kHz: 5Hz - 45kHz


  • Other Connections
    Remote Control Inputs: Up to two foot pedals, or four 5V control inputs, or six foot switches, or combination
    Remote Control Outputs: 2 isolated relay closures, rated at 30Vdc 1A

    MIDI Connections
  • 5 pin DIN output and thru
  • 7 pin DIN input with output capability

  • PCMCIA Interface: 68 pin PCMCIA 2.0/JEIDA 4.0) Supports type 1 SRAM cards up to 4MB for data storage Compact Flash supported with CF to PCMCIA adaptor (supplied)

    Preset Capability (at 48kHz sampling)
    Pitch Shifting: Up to 16 Channels
    Compressor/Limiter: Up to 16 Channels
    Equalization: Up to 256 bands parametric single input, 32 bands at 8 channels
    Sampling with time compression: Up to 174 seconds mono @ 48kHz
    Digital Delay: Up to 87 seconds mono in addition to sampler

    Physical
    Power
  • 90 watts
  • 100V-130V, AC
  • 220V-240V, AC
  • 50/60 Hz

  • Size
  • Inches: 3.5h x 19.0w x 12.5d
  • CM: 8.9h x 48.3w x 31.7d

  • Weight
  • 12 pounds (5.5kg) net
  • 17 pounds (8.0kg) shipping weight
