32 x 32 AD/DA converter with Dante, ADAT, coaxial and multi mode optical MADI
Networked audio nexus.
The A32 Dante brings our flagship into the Dante network: All interfaces, whether analog, MADI or ADAT, are brought using the integrated routing matrix in the Dante network. Of course, all features of the A32 are still available.
The A32 Dante is not just a converter " it?s also the ultimate problem solver thanks to its incredible flexibility. Overall, the A32 Dante processes 384 channels, all highly integrated into a 1HU rack unit. Enumerating all the configurations of the A32 Dante is almost impossible: in addition to the 32 x 32 studio-grade balanced analog inputs and outputs up to 192kHz, there are four ADAT I/O, two MADI I/O ports, and of course Dante, brought out redundant on two RJ45 jacks. Everything freely freely routable in groups of 8 channels each.
Clarity and operational reliability has first priority: Both Dante and MADI are laid out redundant, an essential feature for live operation! Of course, a second power supply can be connected, and thanks to the four TFT screens, the user always has full control.
Packed into a compact 1HU, the highly integrated converter is equipped with 32 x 32 balanced analog channels, brought out on 8 D-SUB connectors. They deliver studio levels up to +20dBu, individually adjustable in 1dB steps. The sophisticated design, using low latency Cirrus Logic converters, accompanied with a temperature-compensated clock and jitter reduction PLL, guarantees best crystal clear sound up to 192kHz.

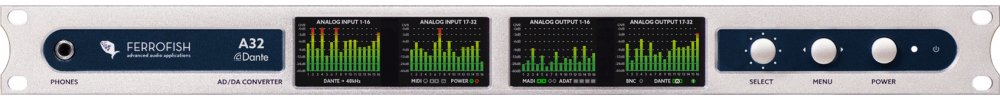

Even operation of the A32 Dante is done without any compromise, almost self explaining, as with all our products: A total of four TFT screens show the levels of all 64 channels, it can?t be done better. Controlling the unit also benefits from the screens: a sophisticated help system built into the device provides context-sensitive help for the selected function at all times. Control on the PC is of course also possible via USB, MIDI or MIDI over MADI.
The headphone can be connected to any analog or digital input or output: ideal for control or monitoring. For complex tasks, a mix especially for the headphones can be created using all available channels, and stored in up to seven mix presets.
All in. Ultimate high density smart converter. 384 channels " at your fingertips.
Dante Plug & Play
Integrate the A32 Dante seamlessly into your Dante network. Just plug it in and the device is visible on the network and ready to be routed freely using the Dante Controller software. Together with the Dante Virtual Soundcard, also from Audinate, the A32 Dante turns into a universal audio interface.
4 x TFT Display with Smart Control
Keep track of all 64 analog channels at any time: Everything is shows clearly on the four TFT screens. Also other screens show the status of the Dante interface, as well as the levels of all digital channels, easy to always keep track of whats happening. Status information and all functions are presented clearly and intuitively, so no need to consult the manual anymore. A sophisticated context-sensitive help function shows additional information about the current selection.
Internal Routing Matrix
All 192 x 192 analog and digital channels of the A32 Dante are brought together in groups of 8 using the internal routing matrix. For easy monitoring, any channel, mono or stereo, can be selected for headphone output. For more complex tasks, up to 7 submixes can be created and recalled for the headphones.
High Performance DSP
The Analog Devices Sharc DSP processor is optimized for audio processing. In the A32 Dante it is used for routing, mixing and effects of all channels. The architecture with 2 cores at 400MHz and floating-point unit allows the parallel processing of all audio data in highest precision.
Redundant Power Supply
For reliability, the A32 Dante can be powered by two power supplies. Both power supplies are permanently monitored, and switched without interruption in case of failure. Warning message is shown on the screen to be able to react on this failure.
Flexible Remote Control
A comprehensive remote software for PC and MAC is available to control the A32 Dante. In addition to USB, the A32 Dante can also be connected via MIDI and MIDI over MADI. All Ferrofish devices are automatically detected and listed in the software.
