MPN #Verto 64

$1595.00 (Open Box)

Save $390.00, New $1985.00
Financing available
Free shipping in Canada. Conditions

64 x 64 ADAT from/to Dante converter



Dante is the de facto standard for networking audio equipment. With the Verto 64 it?s now possible to easily integrate up to 64 x 64 channels via ADAT into a Dante network. No matter which ADAT device you use " the Verto 64 makes all channels immediately avalilable in the network: ?plug and play?.

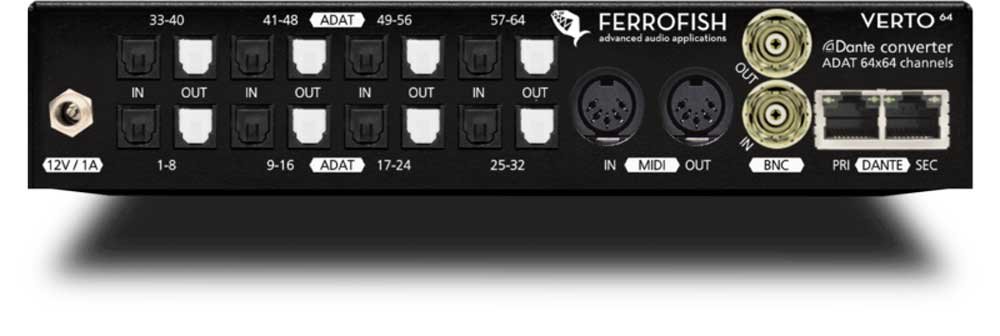

The ultra compact device has 16 ADAT connectors: 8 for transmitting, and 8 for receiving digital data (8 channels each).

On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto 64 supports up to 96kHz sample rate, MIDI jacks for control, and BNC wordclock jacks for external synchronization.
Dante Plug & Play
Integrate the Verto 64 seamlessly into your Dante network. Just plug it in and the device is visible on the network and ready to be routed freely using the Dante Controller software. Together with the Dante Virtual Soundcard, also from Audinate, the Verto 64 turns into a high channel count ADAT audio interface.

Additional features
The VERTO 64 is equipped with a MIDI port and two BNC wordclock connectors. This way an external Wordclock can be fed to the Dante network, or the Dante wordclock can be used for external devices.
Dante I/O
2x RJ-45 Ethernet port (PRIMARY/SECONDARY), 1 GBit Network
64 x 64 channel I/O (Dante Brooklyn II board built-in)

ADAT I/O
VERTO 32: 4x ADAT Input + 4x ADAT Output, optical TOSLINK
Channel count:
32-32 channels at 48kHz,
16-16 channels at 96kHz

VERTO 64: 8x ADAT Input + 8x ADAT Output, optical TOSLINK
Channel count:
64-64 channels at 48kHz
16-16 channels at 96kHz

MIDI I/O
2 x DIN5 connector for MIDI embedding/de-embedding

Wordclock I/O
BNC: 1 x input, 1 x output
75 Ohm Termination set by default (switchable via Dante)

Power Supply
14.4VA (1.2A at 12V)

Polyfuse internal, self-resetting
1 x power supply included

Operation
Temperature range: 41°F up to 113°F (+5°C up to +45°C)
Humidity: <75%, non-condensing

Weight/Size
Weight: 0,9 kg
Dimensions: 22 x 9 x 4,5 mm (without rack ears)

Optional accessories
  • 19? Rack mountain kit, metal (for mounting 1 x Verto in a 19? rack-space)
  • Multi-range Power Supply 12V (EU)
  • ADAT Cable Locking Plate (Part. No. 7027)
