The Arche is a unique electronic solution which combines a digital-analog converter as well as two pure class A amplification modes designed especially for headphones
Ideal to sit between the digital sources and your audiophile headphones, Arche is the perfect solution to fully enjoy your headphones, whilst benefiting from the performance delivered by the converter to drive high-fidelity loudspeakers!
So Arche is an all-in-one solution, which also offers presets for every set of Focal High-Fidelity headphones (Utopia, Stellia, Clear, Elegia et Elear) to make sure you get the absolute best from this ultimate combination: owners of Focal headphones can therefore be sure they are enjoying a combination of electronics and acoustics that is carefully thought out and specially developed from the very outset. Arche will be updated by using a USB stick.
Power and precision
The two premium AK4490 balanced digital-analog converters can process formats in PCM format up to 384kHz, as well as DSD 256. The analog signal is then routed towards 2 pure class A amplification modes designed especially for headphones (voltage, hybrid) for an uncompromising solution. The original audio signal is totally respected, so as to reproduce the tiniest details of the recording.
Choose your amplification
Upon entry of the digital signal, Arche offers a resolutely audiophile design through its uncompromising dual mono construction, from signal processing to amplification. And thanks to the presets integrated, every user of Focal headphones gets amplification to suit their product and their favourite tonal balance.
Use and design

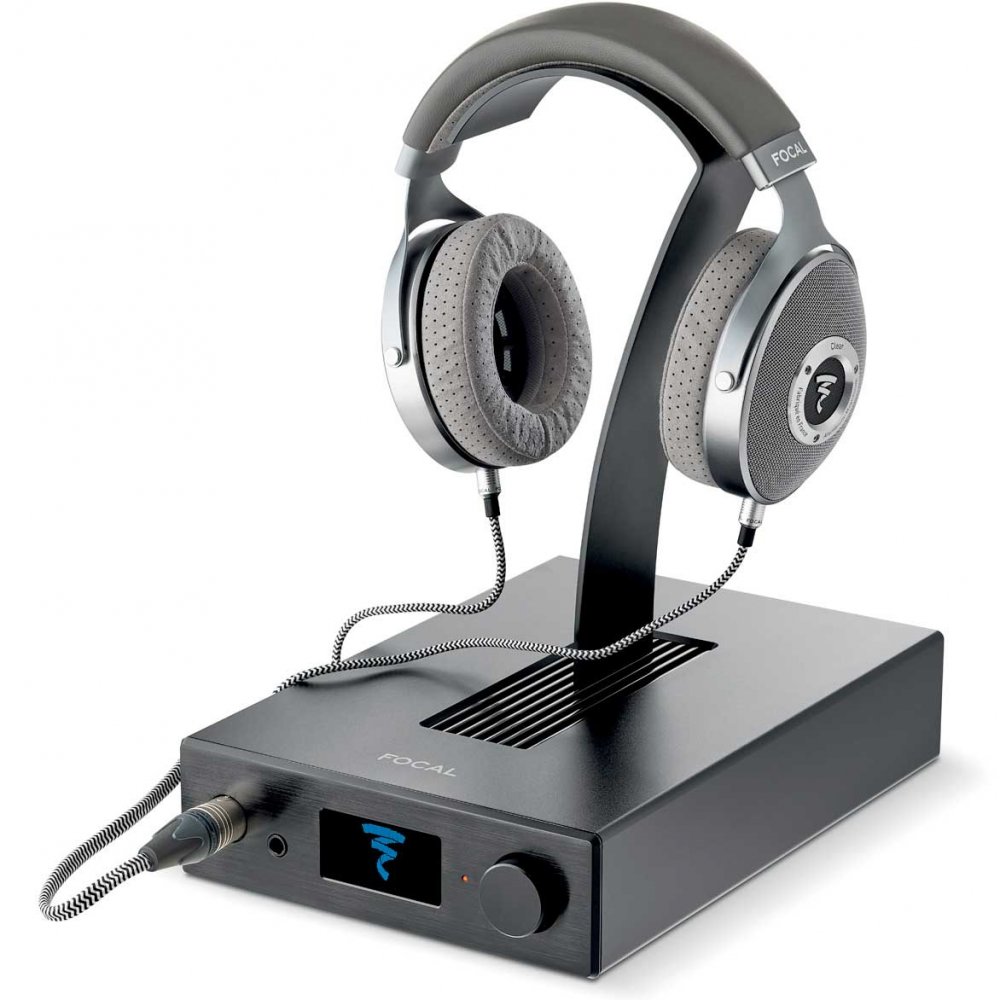

Arche comes with a solid aluminium headphones mount inspired by the brand's logo: accessing and storing the headphones is therefore quick and easy, as well as looking incredible and saving on space!
Digital-analog converter compatible with high-resolution formats (384kHz - DSD 256).. 2 integrated amplifiers (voltage and hybrid): choose the amplifier type best suited to your headphones.
. Presets for every set of Focal headphones: get the best from Focal's combination of electronics and acoustics.
. Dual mono audiophile construction from input of the digital signal to output of the self-powered signal.
. Can also be used as a digital-analog converter for high-fidelity home systems.
Type DAC and headphones amplifierMax. power: 2 x 1W @ 1kHz under 32Frequency response: 10Hz to 100kHzTotal Harmonic Distortion (THD): < 0,001%Signal-to-noise ratio: > 116dB @ 32 (Class A)Power supply: 85 to 265 Vac / 47 - 63HzDimensions (H x L x D) without stand: 60 x 200 x 297mmDimensions (H x L x D) with stand: 321 x 200 x 297mmWeight: 10.25 lbs (4.65kg)Audio inputs:- Unbalanced analog RCA
- Digital S/PDIF coaxial (RCA): Max. sampling frequency: 192kHz (AES3-compatible)
- Max. resolution: 24-bit
- Optical digital (TosLink) Max. sampling frequency: 192kHz (AES3-compatible)
- Max. resolution: 24-bit
- Digital USB (USB-B): standard USB: USB 2.0 / USB 3.0 - USB audio class
Audio outputs: Balanced analog 3-point XLRUnbalanced analog RCAFirmware update: via USB port (USB-A)
