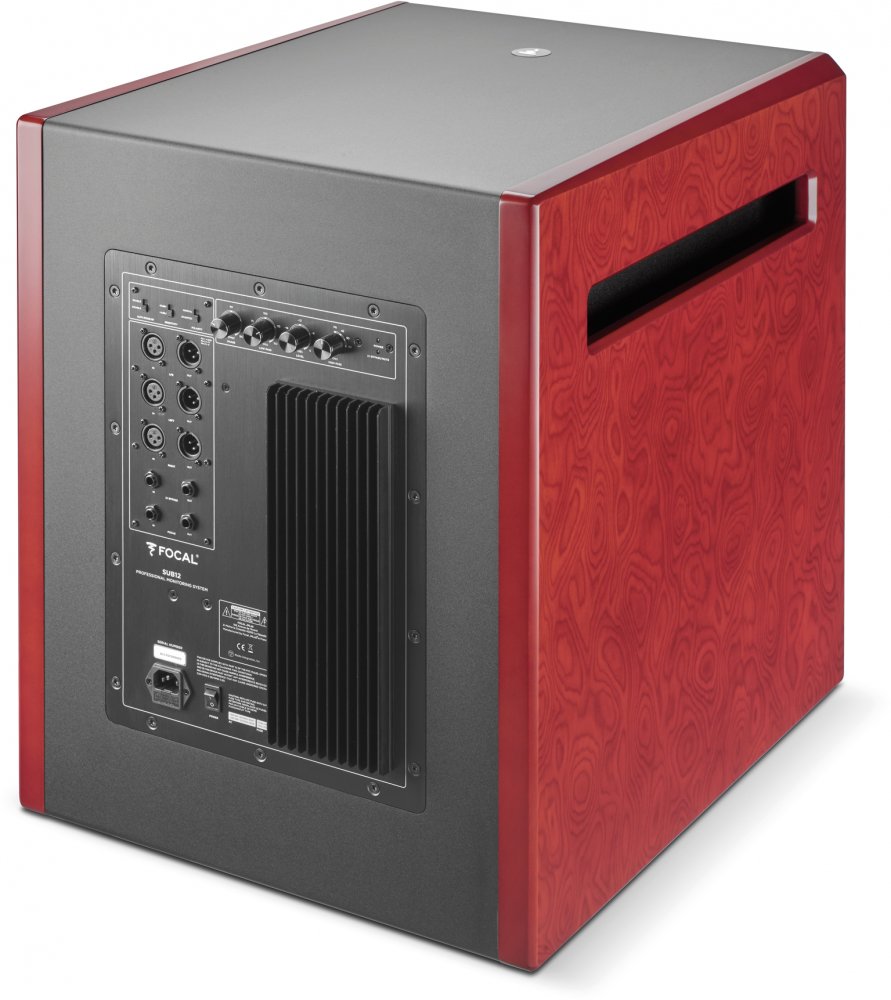

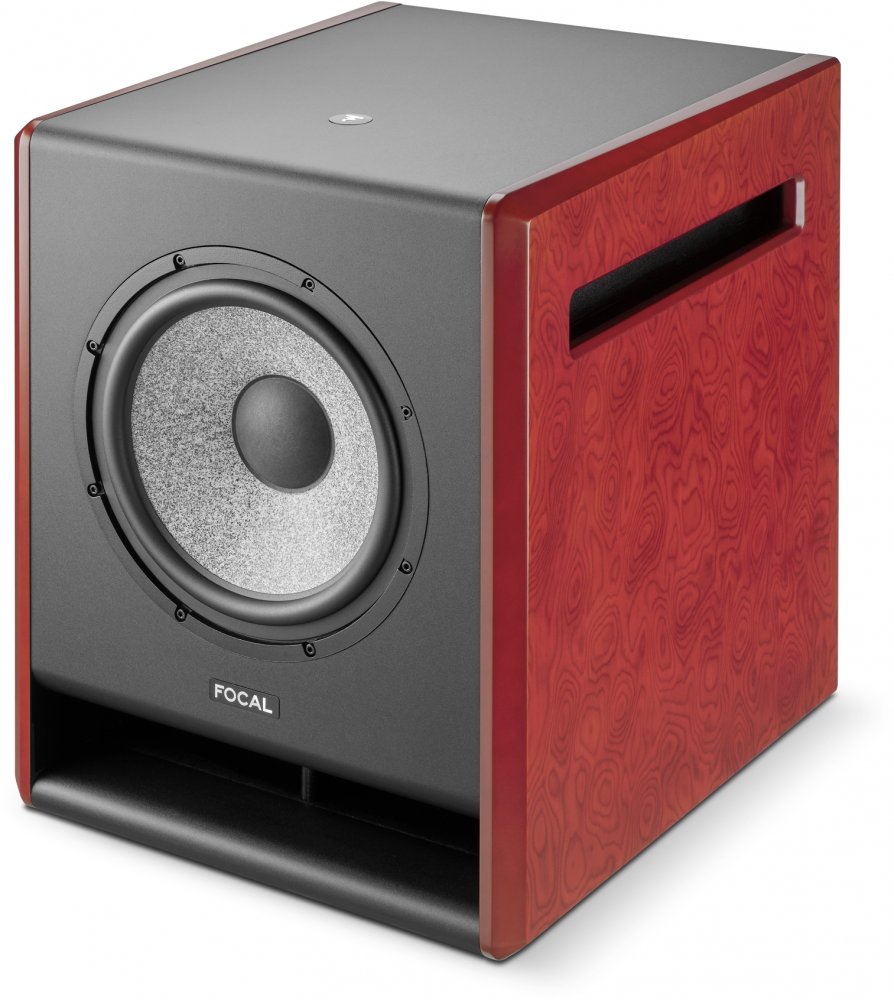

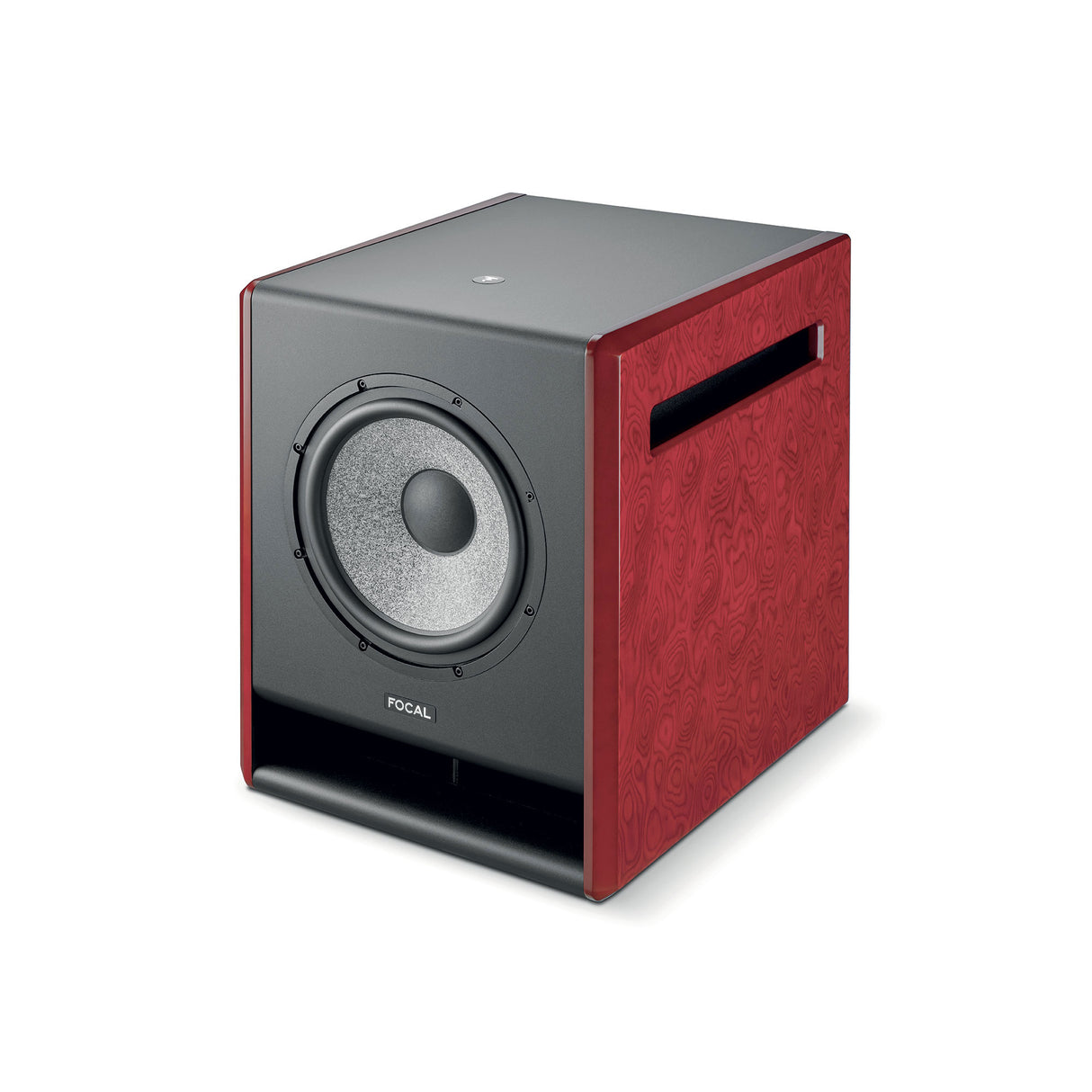

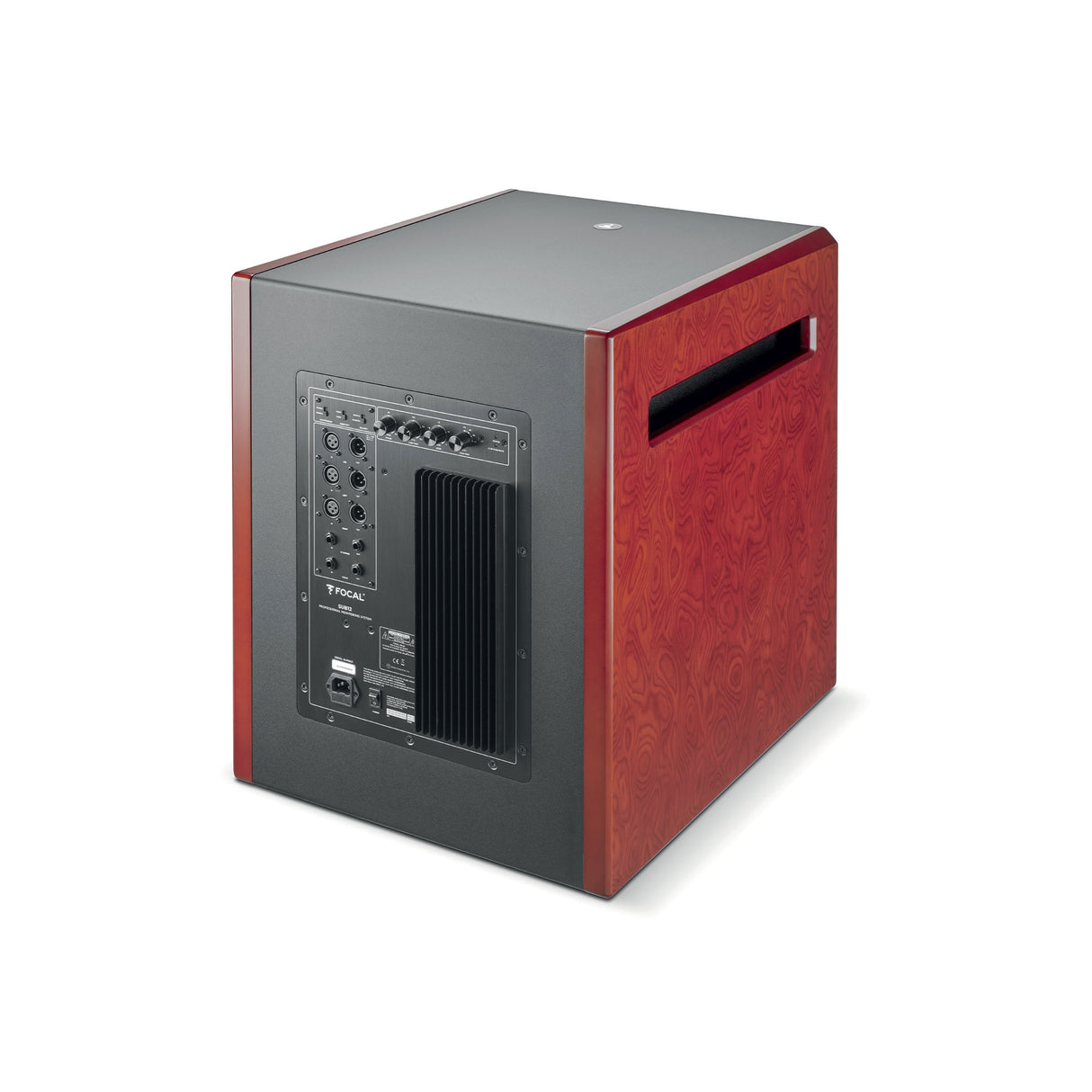

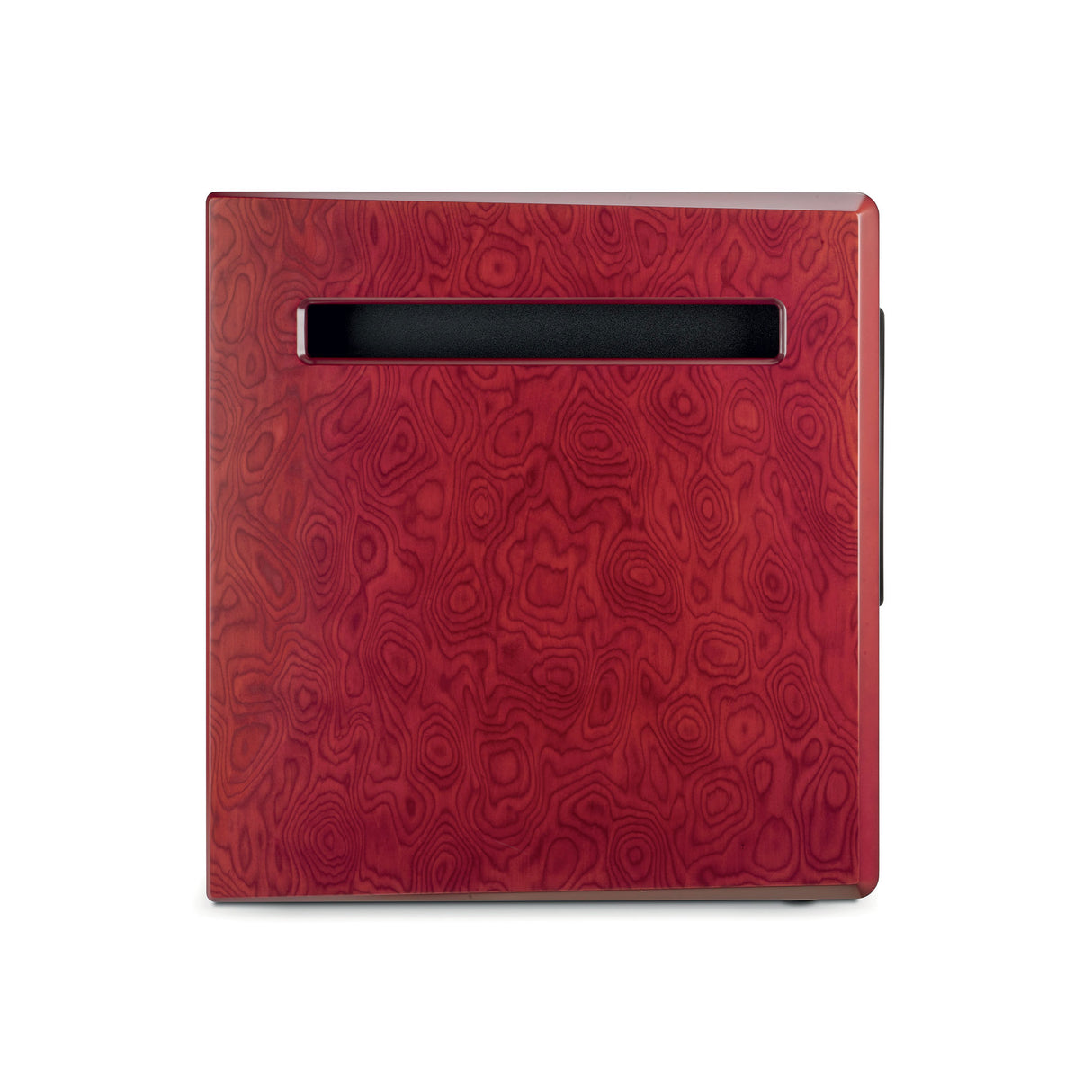

Focal Sub12 ST6
Professional active subwoofer with a 13" composite 'W'-cone woofer, 600W RMS amplification and internal signal processing
Sub12 is a highly articulate subwoofer offering a level of definition, dynamics and sub-bass that is unrivalled in its price bracket. Thanks to its high excursion woofer and 1000W peak amplification, the Sub12's transcription is more powerful and truer than ever.
Composite sandwich ?W?-cone: sound neutrality, no distortionLarge laminar port: no port noises or distortionAutomatic disengageable stand-by modeAmplification: 600W RMS, 1000W peakCarry handle
Type : Subwoofer
Frequency response (@ -3dB) : 30Hz - 400Hz
Low cut-off frequency (@ -6dB) : 28Hz
Maximum SPL (Average CEA2010B 30-200 Hz free field @ 1m) : 124.5dB

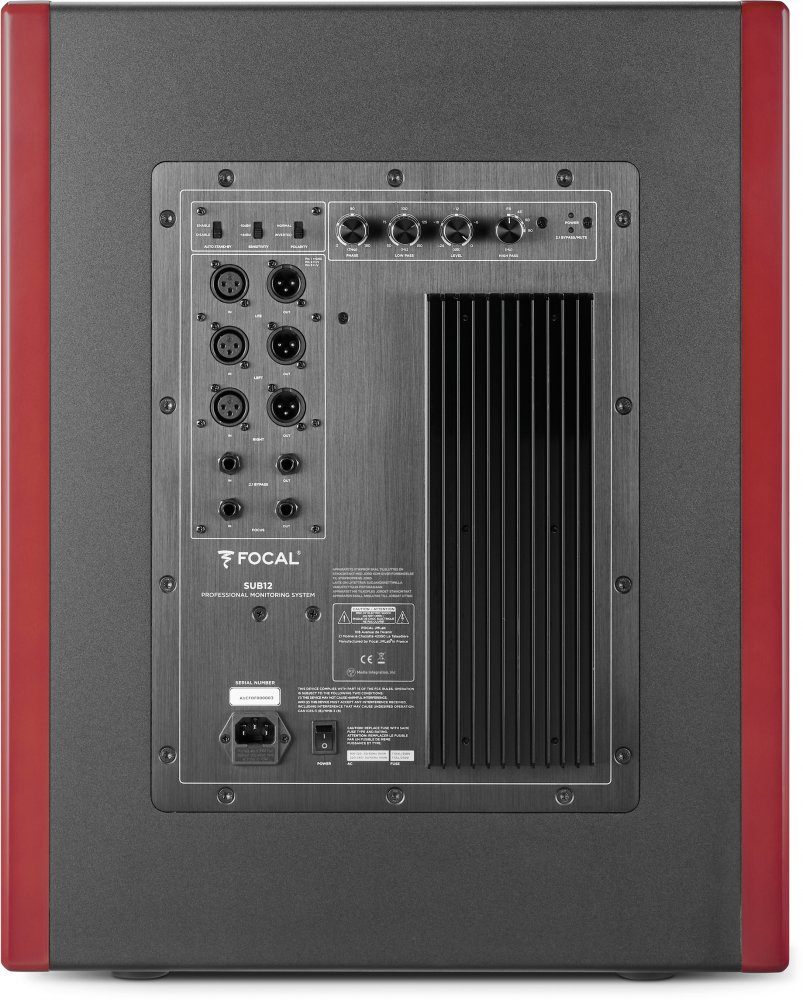

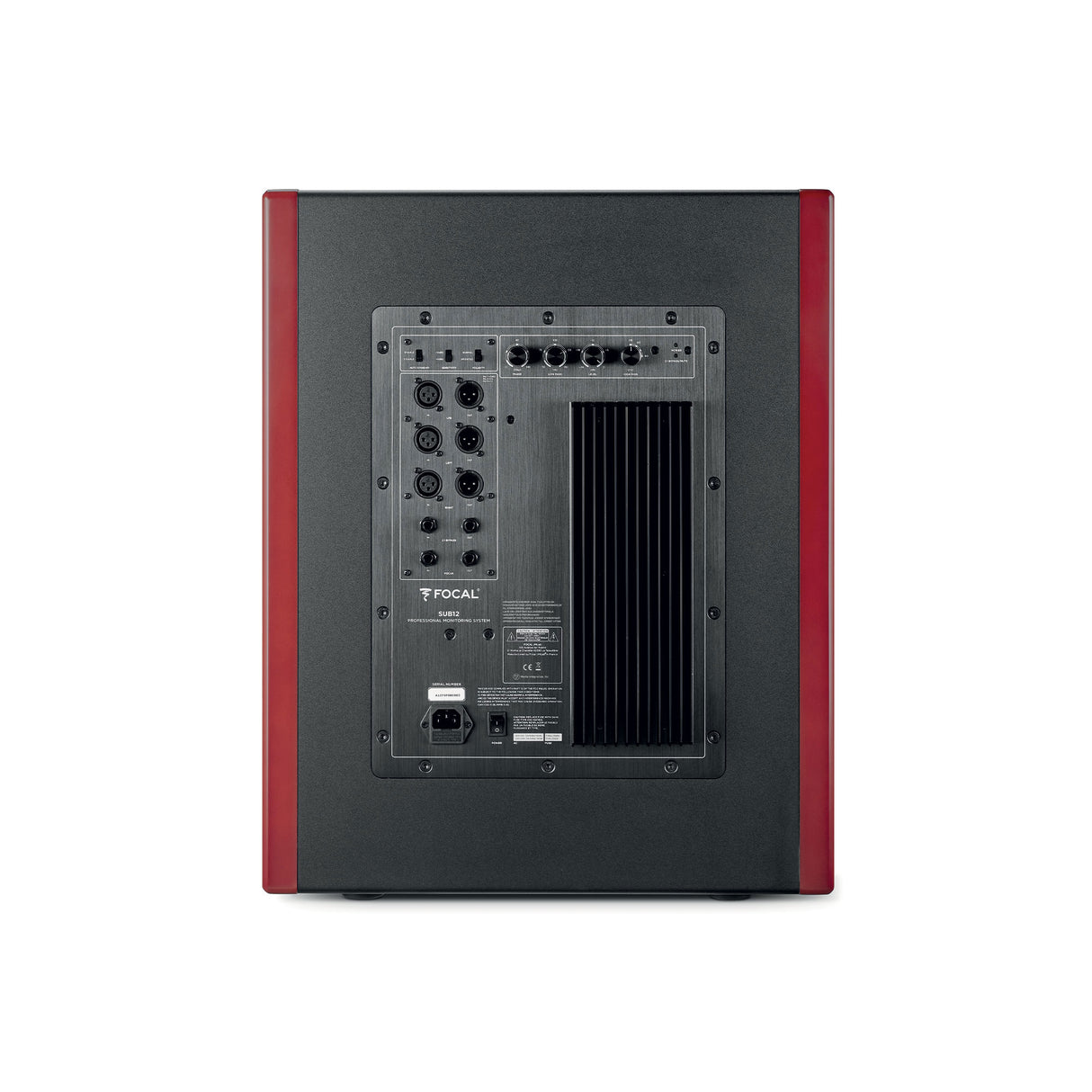

Inputs : Balanced XLR LFE 10k?, Left & Right 10k?
Outputs : Balanced XLR LFE (in parallel), Left & Right 50?
Bass amplifier stage : 600W RMS
Nominal power supply : ~100"120 VAC/220"240 VAC 50/60Hz
User controls : Sensitivity, Stand-by, Polarity, Phase, LPF, Volume, HPF
Fuses : ~100-120V, T10AL/250V & ~220-240V, T5AL/250V
Internal signal processing and functions - Subwoofer section :
Left/right mono summationLFE + mono low-pass 24dB/octavePhase adjustmentPolarity selectionSwitchable high-pass crossover, frequency cut-off selection 24dB/octaveOutputs (to satellites) : Right, left
- Type/Impedance : Electronically balanced / 50?
- Connector : 3-point male XLR

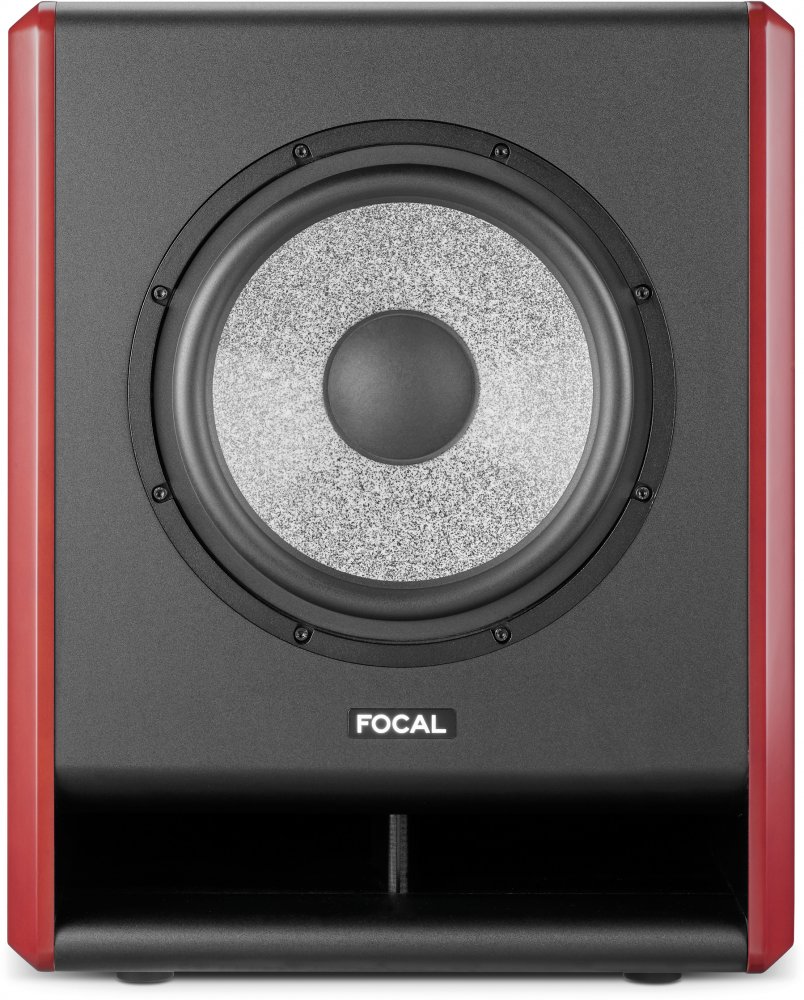

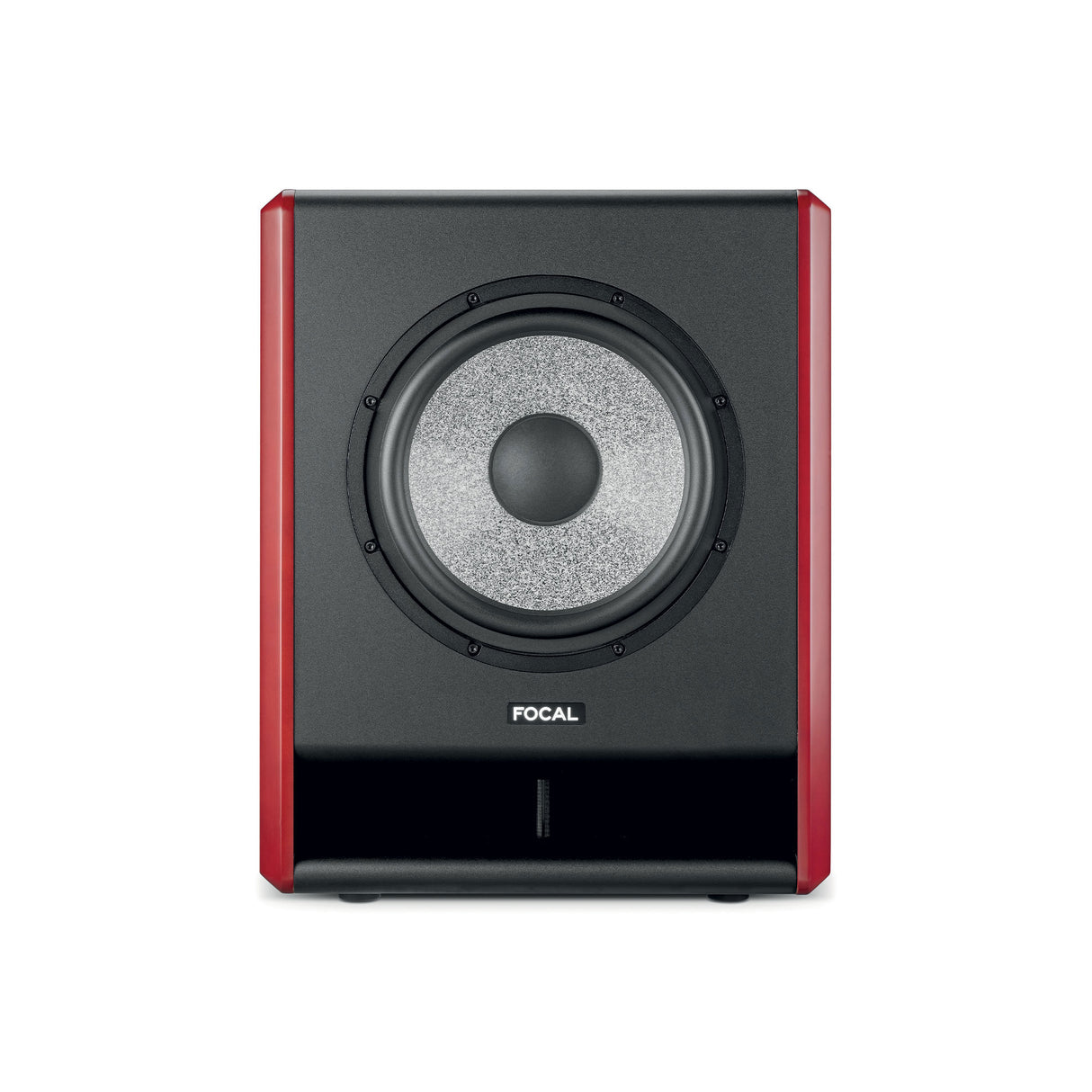

Bass : 1 x 13" (33cm) x ?W? cone
Shielding : No
Construction : Dark red natural veneering side panels, black body
Dimensions (HxWxD) : 235/8x191/8x223/8" (60x48.7x56.8cm)
Weight : 127.8lbs (58kg)
Temperature range : During use: 5-35°C / In storage: 0-50°C
