UPC/EAN #3544055801207     MPN #PL060SUB01

$1999.00

Financing available
Free shipping in Canada. Conditions

Professional active subwoofer with 350W rms buit-in amplifier BASH technology and 11 inch woofer

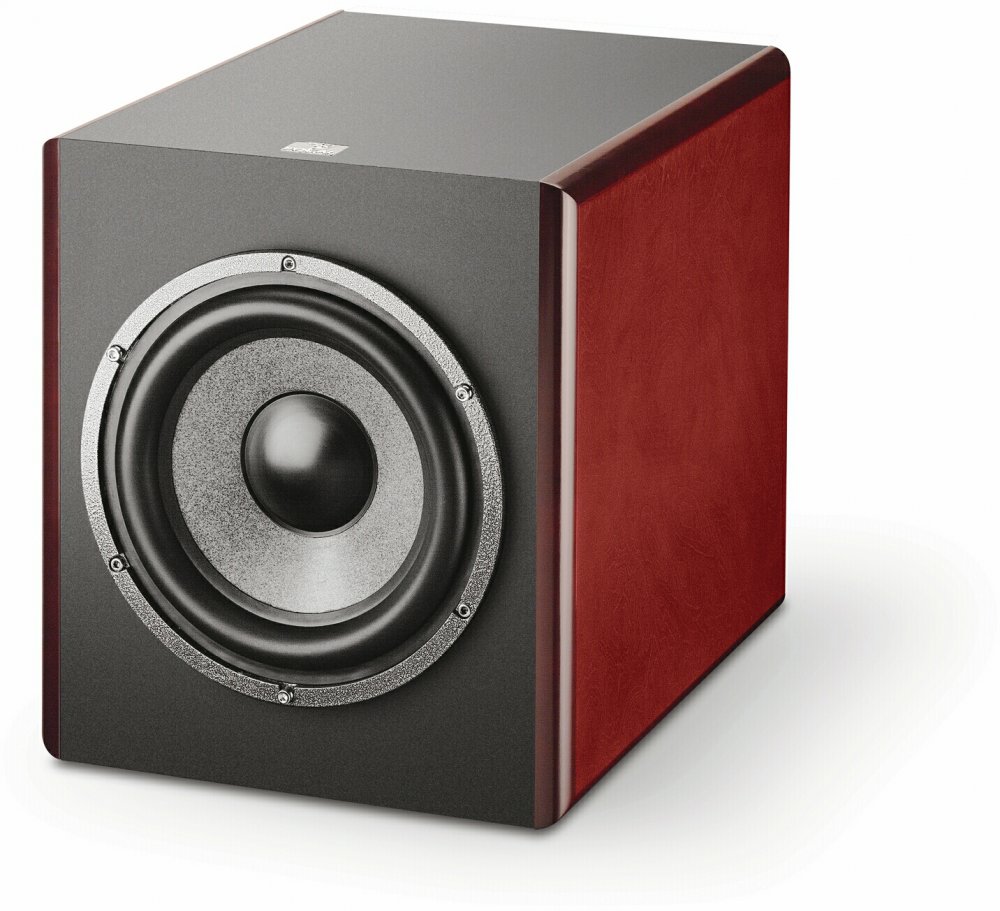

The Sub6 is a large volume cabinet design, equipped with an 11" woofer and a rear laminar port. This configuration guarantees bass linearity whatever the intended SPL.

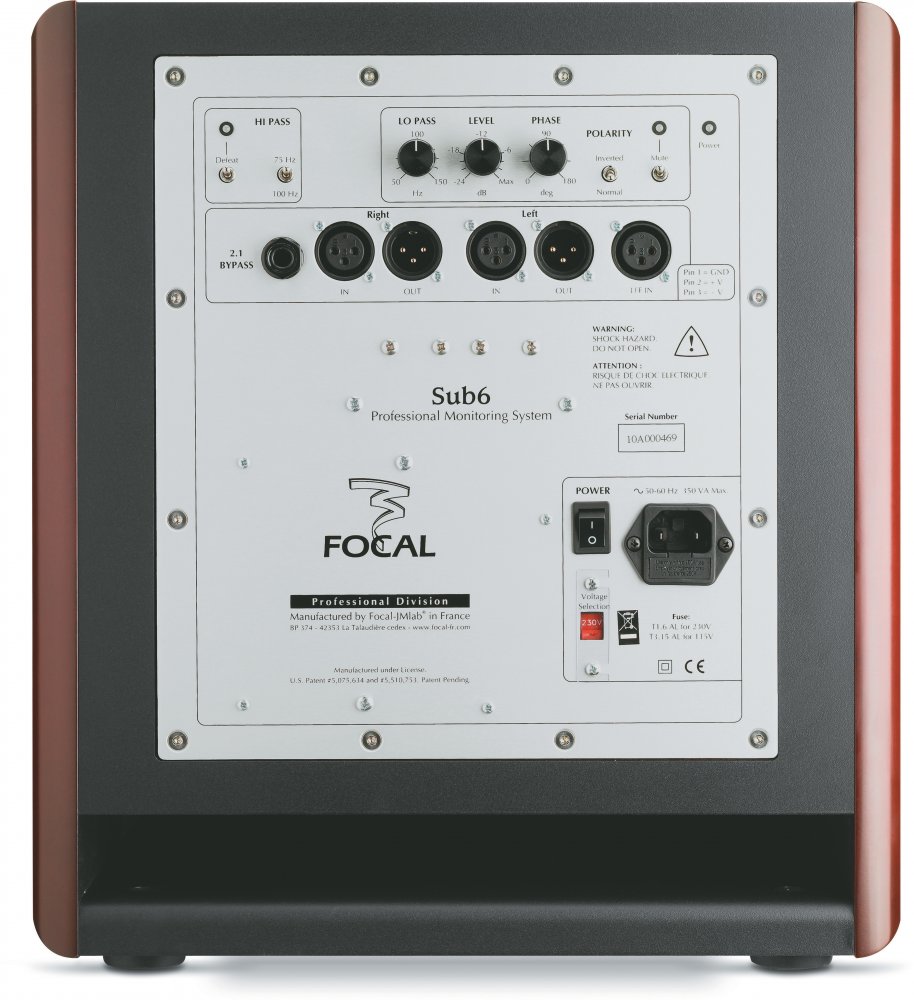

The control board is extremely versatile, with connectivity which allows a 2.1, 2.2 and multichannel use via the L/R inputs and outputs and the LFE.

The numerous settings such as the high-pass crossover dedicated to monitors, the adjustable phase and level control provide optimum coupling with the Solo6 Be and the Twin6 Be monitors. And finally, a small, but important point: the footswitch input. It enables one to connect a pedal to deactivate the subwoofer and the high-pass crossovers on the outputs that supply the monitors. This simplifies and greatly improves control during the different stages in monitoring.

FOR OPTIMAL INTEGRATION
The Sub6 monitor loudspeaker was developed to perfectly complement the acoustics of Focal monitoring loudspeakers. It features numerous settings such as a stereo high-pass crossover (75Hz - 100Hz) specific to left and right loudspeakers, a configurable low-pass filter with mono summation, a phase inverter, adjustable phase and even a MUTE switch. The various connectivity options enable use in 2.1, 2.2 and multi-channel modes, via the L/R inputs and outputs, and the LFE input.

THE ?LITTLE EXTRA? WHICH MAKES THE DIFFERENCE
A major advantage of the Sub6 is its footswitch input. This allows you to connect a footswitch which cuts off the subwoofer and deactivates the high-pass crossovers on the outputs powering the monitors. The footswitch input enables you to compare the sound of a 2.1 set-up (Sub6 filtered + monitors filtered by the Sub6) with that of a 2.0 set-up (subwoofer deactivated + monitors in wideband mode). The two versions can be compared instantly, simply by pressing the footswitch: you barely have to move a muscle.
Performance
Frequency response: 30Hz - 250Hz
Maximum SPL: 116dB SPL (peak @ 1m)

Electronic section
Inputs
Right, left, LFE
  • Type / Impedance: Electronically balanced / 10 kOhms
  • Connector: XLR 3 points socket
  • Sensitivity: Adjustable

  • Outputs (towards satellites)
    Right, left
  • Type/Impedance: Electronically balanced / 50 Ohms
  • Connector: XLR 3 points plug

  • Signal internal treatment and functions
    Subwoofer section
  • Mono right/left summation
  • LFE + mono low-pass
  • 24dB / octave
  • Phase adjustment
  • Polarity selection switch
  • Switch high-pass filter, cut-off frequency selection

  • Satellite section
  • 24dB / octave

  • Control
  • Adjustable subwoofer level
  • Low-pass cut-off frequency setting
  • Phase adjustment
  • Polarity adjustment
  • Subwoofer switch (mute)
  • 2.1 "Bypass" (external remote control)
  • High-pass frequency selection
  • Releasable high-pass

  • Visualization (LED)
  • Power On
  • Subwoofer switch(mute)
  • Released high-pass

  • Power supply
  • Local supply: 230V (1.6A fuse) or 115V (3.15A fuse)
  • Connection: Removable CEI supply wire

  • Transducers
    Subwoofer
  • 11W7670, 105/8" (27cm) Focal "W" composite sandwich cone driver

  • Cabinetwork
    Construction: 71/2" (19mm) MDF panels
    Finish: Dark red natural veneering side panels, black body
    Dimensions (HxLxD): 1415/16 x 139/16 x 175/16" (380mm x 344mm x 440mm)
    Weight: 50.7lb (23kg)
    5.0
    Claude Marc Bourget
    Gaspésie
    June 26, 2019
    Focal Sub6 Be matched up with Focal Solo pair
    Apporte la dimension manquante, la profondeur, la rondeur, la puissance tranquille. Pièce indispensable du puzzle.
    5.0
    Geoff Allan VO
    Montreal
    April 30, 2017
    Focal Sub6 Be matched up with Focal Twin 6 pair
    A refined, polished, upfront, uncolored sound now complemented by the fantastically rich bass of the Sub6 Be. The berilium tweeter of the Twin 6 pair projects high notes with such delivery the hair of the cochlea get tickled. Really.
