Focusrite Rednet AM2
The Focusrite Rednet AM2 is a Stereo Dante headphone amplifier and line output interface solution with PoE.

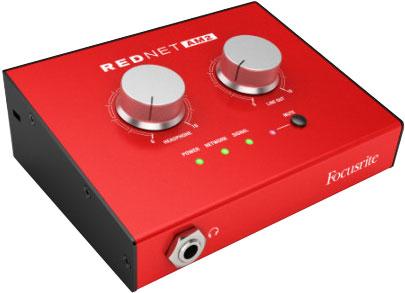

A valuable addition to Focusrite's RedNet range of audio-over-IP interfaces, RedNet AM2 is a compact, flexible Dante-compatible stereo monitoring unit combining headphone and line outputs for monitoring of signals from the Dante network wherever required. RedNet AM2 features a ¼" front-panel TRS headphone socket plus a pair of rear-mounted balanced line outputs with male XLR connectors for loudspeaker monitoring and other applications.
Designed to drive high or low impedance headphones at high levels, the headphone output delivers significant audio output power. The compact unit, mounted in an enclosure based around a sturdy road-worthy aluminium extrusion, is fitted with non-slip feet, and can either sit securely on a flat surface or be mounted on top of a mic stand using the standard threaded bush incorporated in the base.

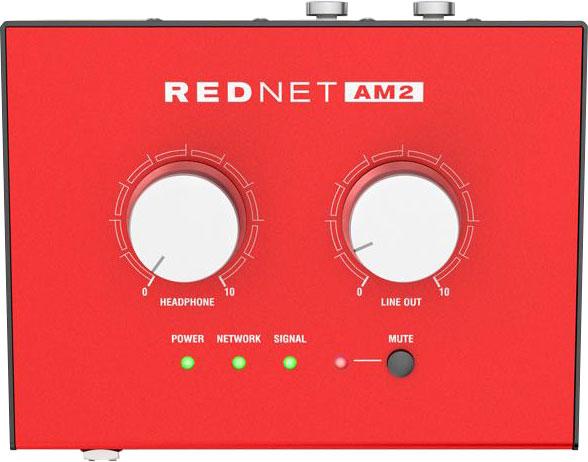

RedNet AM2 includes the latest two-channel Dante receiver and provides high-quality digital to analogue conversion for accurate monitoring on loudspeakers or headphones. Two large volume control knobs are provided for Headphone and Line output levels, the latter featuring a mute button with associated LED. Other indicators show the presence of power, network and signal level.

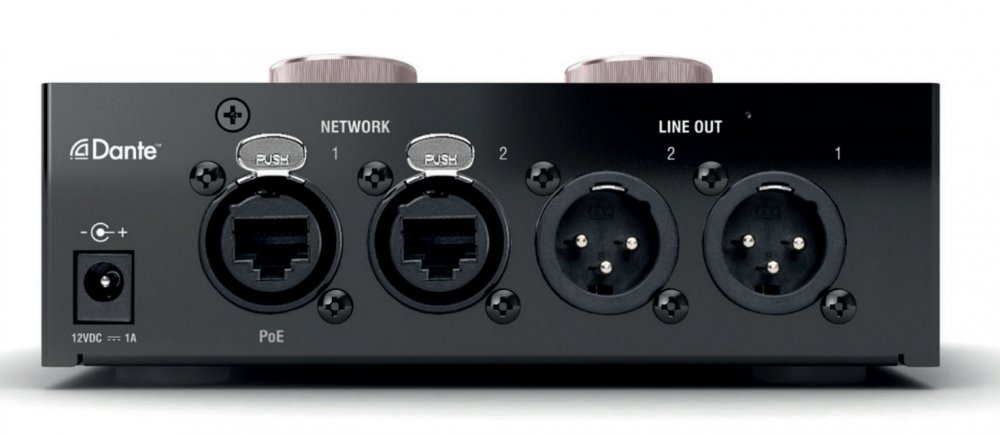

Dual locking etherCON connectors are included to connect the network and to daisy-chain to additional network devices. The unit is powered via Power over Ethernet (PoE) or via the rear-panel barrel connector and included DC power supply.
Cost-effective headphone/loudspeaker stereo monitoring solution for Dante offers lower system deployment costsSuperb digital to analogue conversion provides transparent and accurate audio qualityPowerful headphone amp delivers plenty of level even with high-Z headphones for maximum high-quality audibilityIndependent headphone/line output level controls for maximum controlLine output mute switch instantly kills the signal to external speakers or power ampsIntegrated Gigabit Ethernet switch allows connection of a second device for simpler cablingBuilt-in mic stand mount plus non-slip feet - mount RedNet AM2 to a mic stand or place securely on a surface
LINE LEVEL OUTPUTS
0 DBFS Reference Output Levels: 18 or 24dBu (switchable)Frequency Response Output: 20Hz - 20kHz ±0.05dBTHD N Output: <-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS inputDynamic Range: 120dB A-weighted (typical), 20Hz - 20kHz
Output To Output: <-100dB unweighted, 20Hz - 20kHz; -20dBFS input
0 DBFS Reference Levels Headphones: 19dBmHeadphone Frequency Response: 20Hz - 20kHz ±0.05dBHeadphone THD N: <-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS inputHeadphone Dynamic Range: 118dB A-weighted (typical), 20Hz - 20kHzOutput Impedance: 5OHeadphone Impedance: 32O - 600O
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bitClock Sources: Internal or from Dante Network MasterMinimum Latency: 1ms
FRONT PANEL CONNECTIVITY
Headphone Outputs: 1 x 1/4" stereo jackLine Outputs: 2 x Male XLRPSU (PoE And DC): 1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input ConnectorNetwork: Green LED: Indicates device is network master or network slave, shows valid network lock
TOP PANEL INDICATORS
Power: LED illuminates Green when PoE is connected and Red when DC power is connectedSignal: Signal indicator LED for both network input channelsMute: Red LEDControl Functions: 2 x Pots
Height (Chassis Only): 48mm/ 1.89"Height (Inc. Pots And Feet): 58mm/ 2.28"Width: 140mm/ 5.51"Depth (Chassis Only): 106.5mm/ 4.19"Depth (Inc. Connectors): 116mm/ 4.57"
Power Over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standardDC Power Supply: 1 x 12V 1.2A DC Power SupplyPower Consumption: PoE: 11.0W - DC: 9.8WOperating Temperature: Operates at up to an ambient temperature of 50 degrees Celcius
September 3, 2021
Very useful little Dante box
I am very fond of the AM2 - it's portable, provides plenty of volume to drive speakers or headphones and easily connects via Dante. The PoE makes it even easier to deal with. Stable and consistent.
I sometimes have players in random rooms in my place, Read more
so having a headphone box with great conversion and easy operation is quite helpful.
