UPC/EAN #815301006336     MPN #REDNET-X2P

$1450.00

Save 19.4%, MSRP $1799.00
Financing available
Free shipping in Canada. Conditions

The Rednet X2P is a 2x2 analogue I/O with 2x mic pres, headphone and line output, PoE supplied



RedNet X2P is a compact, portable and robust 2x2 Dante audio interface featuring two Red Evolution mic pres, stereo line out and a stereo headphone amplifier. RedNet X2P allows you to effortless add a high quality Dante audio interface by integrating power, audio, clock and remote control over a single Ethernet cable - simply use a power over Ethernet switch or PoE injector. A local input mixer allows 'more me' monitoring control, while a control lockout mode ensures settings can not be changed when used remotely.

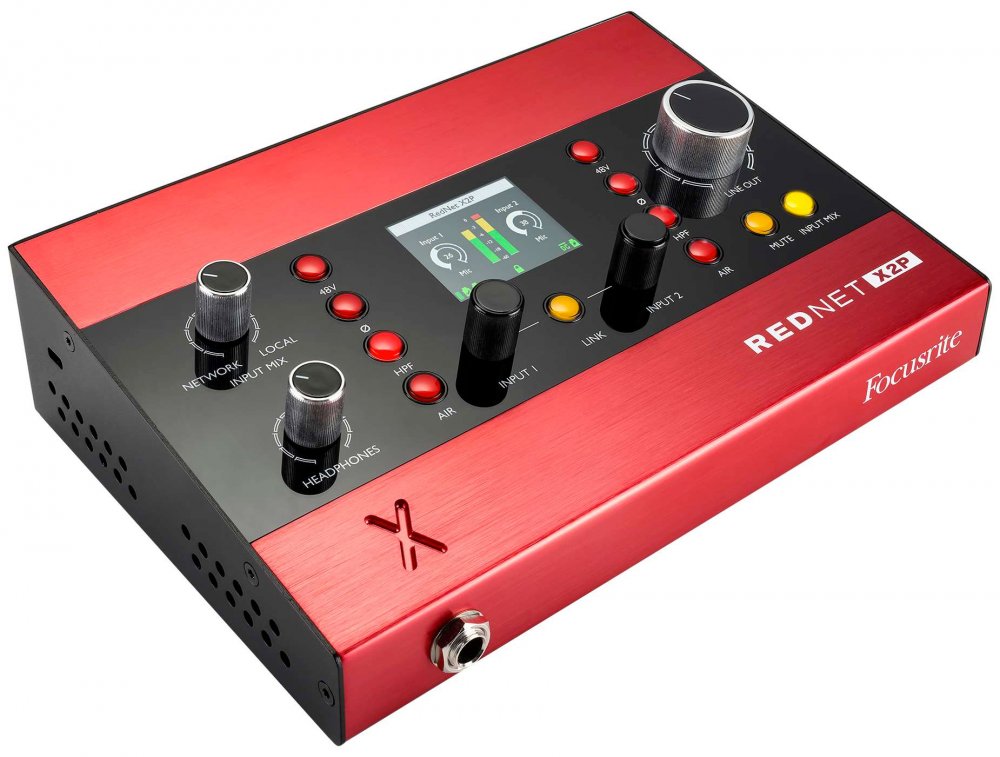

Rear panel XLR outputs offer level-controlled analogue outputs of up to 24dBu, while a front panel 1/4" connector provides a high-powered headphone output capable of driving both high and low impedance headphones. A pair of combination XLR/1/4" inputs allow the connection of mic, line or instrument level signals to the mic pres, which include Focusrite's acclaimed Air mode which emulates the sound of our classic input transformers. The top panel features an array of controls: output level for headphone and line outputs, mic pre controls of gain, high-pass filter, Air, phase invert, phantom power and stereo linking; as well as the crossfader for controlling the balance of mic pre inputs and network receiver channels which to be sent to the headphone or line outputs.
  • Stereo 2x2 audio interface for Dante audio-over-IP networks
  • Two Red Evolution mic preamps for mic, line or instrument level inputs
  • Power-over-Ethernet supplied: IEEE 802.3af compliant
  • Up to 24-bit, 96kHz sampling rates
  • Robust steel and aluminium chassis
  • Local input mix to allow 'more-me' style monitoring for easy foldback control
  • Powerful headphone output even with high-impedance headphones
  • Local control lockout of mic pre settings, output settings or both
  • Up to 24dBu line output levels
  • Independent level control of headphone and line outputs
  • Mute switch for line output
  • Mic stand mount
  • Kensington security slot
  • Integrated network switch allowing daisy-chaining of network devices
  • MICROPHONE/ LINE INPUTS
  • Gain Range: 0dB to 68dB in 1dB steps
  • Type: Electronically Balanced, Zin = 6.2kO
  • Max. Input Level: >+24dBu, min gain
  • Frequency Response: 20Hz - 35kHz ±0.1dB
  • THD + N: -103dB (0.0007%) @ -1dBFS (@ 24dB Gain)
  • EIN: <-130dBu 'A'-Weighted (typical)
  • Signal-To-Noise Ratio: -120dB 'A'-Weighted (typical), min gain
  • Common-Mode Rejection Ratio: 50/60Hz CMRR: -80dB
  • Phantom Power: +48V, independently switchable per channel.
  • HPF: High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel
  • Air Mode: 2dB boost at 10kHz and -2dB at 20Hz (ref 1kHz). Input impedance drop to 2.2kO

  • INSTRUMENT INPUTS
  • Instrument Inputs Gain Range: 0dB to 68dB in 1dB steps
  • Instrument Inputs Type: Electronically Balanced, Zin = 2MO
  • Instrument Inputs Max. Input Level: >+15dBu, min gain
  • Instrument Inputs Frequency Response: 20Hz - 35kHz ±0.1dB
  • Instrument Inputs THD + N: <-100dB (0.001%) @ -1dBFS (@ 16dB Gain)
  • Instrument Inputs Signal-To-Noise Ratio: -118dB 'A'-Weighted (typical), min gain
  • Instrument Inputs HPF: High-Pass Filter (HPF): -3dB @ 80 ± 3Hz, 12dB/Octave, independently switchable per channel

  • LINE LEVEL OUTPUTS
  • Line Level Outputs 0 DBFS Reference Levels: +18 or +24dBu (switchable)
  • Line Level Outputs Frequency Response: 20Hz - 35kHz ±0.1dB
  • Line Level Outputs THD + N: <-104dB (0.0006%) @ -1dBFS
  • Line Level Outputs Dynamic Range: -120dB 'A'-Weighted (typical), 20Hz - 20kHz

  • HEADPHONE OUTPUT
  • Headphone Output 0 DBFS Reference Levels: >+19dBm
  • Headphone Output Frequency Response: 20Hz - 20kHz ±0.2dB
  • Headphone Output THD + N: <-103dB (0.0007%) @ -1dBFS
  • Headphone Output Dynamic Range: 117dB 'A'-weighted (typical), 20Hz - 20kHz
  • Headphone Output Impedance: 5O
  • Headphone Impedance: 32O - 600O

  • MICROPHONE/ LINE CROSSTALK
  • Mic/Line Input To Input: < -72dB; 20Hz - 20kHz (driven channel at -20dBFS)
  • Mic/Line Input To Output: < -126dB; 20Hz - 20kHz (driven channel at -20dBFS)
  • Output To Mic/Line Input: < -159dB; 20Hz - 20kHz (driven channel at -20dBFS)

  • OUTPUT CROSSTALK
  • Output To Output: < -101dB; 20Hz - 20kHz (driven channel at -20dBFS)

  • HEADPHONE CROSSTALK
  • Right To Left: < -85dB; 20Hz - 20kHz (driven channel at -20dBFS)

  • DIGITAL PERFORMANCE
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
  • Clock Sources: Internal or from Dante Network Master.

  • FRONT PANEL CONNECTIVITY
  • Outputs Headphone Outputs: 1 x 1/4" stereo jack

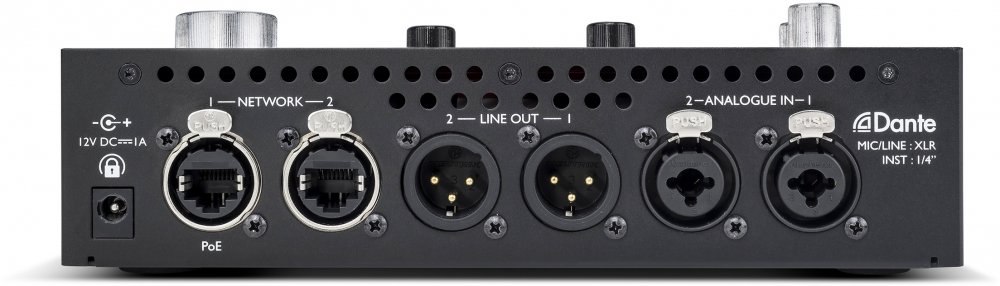

  • REAR PANEL CONNECTIVITY
  • Inputs Mic/Line/Inst Inputs: 2 x Locking Combi XLR
  • Outputs Line Outputs: 2 x Male XLR

  • PSU & NETWORK CONNECTIONS
  • PSU (PoE And DC): 1 x PoE (Port 1) Input and 1 x DC 12V Locking Barrel Input Connector.
  • Network: 2 x etherCON connectors, also compatible with standard RJ45 connectors.

  • TOP PANEL INDICATORS
  • LCD Screen: 1 x Screen (Status & Metering)

  • DIMENSIONS
  • Height (Chassis Only): 47.5mm/ 1.87"
  • Width: 140mm/ 5.51"
  • Depth (Chassis Only): 104mm/ 4.09"

  • WEIGHT
  • Weight: 1.04kg

  • POWER
  • Power Over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
  • DC Power Supply: 1 x 12V 1.2A DC Power Supply.
  • Power Consumption: PoE: 11.0W - DC: 13.32W (When using supplied DC PSU)

  • HEAT PERFORMANCE
  • Operating Temperature: Operates at up to an ambient temperature of 45 degrees Celcius
