Fostex 6301ND

The Tascam 6301NE is simple active monitor featuring a newly designed 4" full range driver in a die cast aluminum enclosure. Digital Version. With AES/EBU digital input.

Model 6301-series have been on the market since 1982 as the standard active monitor speaker in the broadcast and production facilities and now we have re-design the speakers with the latest D-class power amplifier and new driver unit featuring energy saving "auto stand-by" function. The electrically balanced version used to be offered only in North America, but now worldwide.
  • 20W D-class power amplifier for higher output level and less power consumption with no heat sink
  • Dedicated 4-inch full range driver for clear audio reproduction
  • Traditional rugged enclosure of aluminum die-cast with the physically identical height and width to the current B-series
  • Flat panel design to avoid inadvertent power-off or level change
  • Auto Stand-by mode (compliant to ErP directive) for energy saving
  • Detachable IEC type power inlet with multi-voltage power handling
  • Newly designed mounting bracket (EB-6301) for wall mounting with variable angle adjustments
  • Specifications
    Speaker section:
    Enclosure type: : closed
    Unit: : 4" full range
    Frequency response: : 70 Hz - 15k Hz
    Sound Pressure Level: : 85dB / W (1m)
    Maximum SPL: : 98dB

    Amplifier Section:
    All Models: : Connector: : 1/4" TS Phone (unbalanced)
    Input Impedance: : 10k ohm or more
    6301NX : Connector: : XLR-3-31 (transformer balanced)
    Input Impedance: : 10k ohm or more
    6301NE : Connector: : XLR-3-31 (electrically balanced)
    Input Impedance: : 10k ohm or more

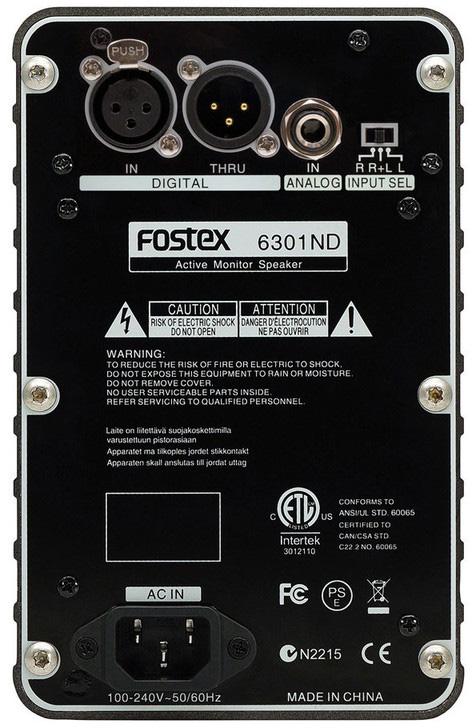

    6301ND : Connector: : XLR-3-31 (IEC 60958 AES/EBU)
    Input Impedance: : 110 ohm or more

    Output (Thru)
    6301ND : Connector: : XLR-3-32 (IEC 60958 AES/EBU)
    Rated Output: : 20W
    Distortion (T.H.D.): : 0.05% (1kHz / 1W output)
    Residual Noise: : -70dBV or less (NB/NE/NX)
    -65dBV or less (ND)
    Input Sensitivity: : 1/4" TS phone: : -14dBV (0.2Vr.m.s.)
    XLR: : +4dBu (1.2Vr.m.s.)
    XLR(Digital): : -12dBFS
    Auto Stand-by: : : active after approx. 25 min. of continuous input lower than the threshold level

    Dimensions: : 120 (W) x 189 (H) x 120 (D) mm
    Weight: NB/NE/ND: 2.2kgs
    NX : 2.3kgs
    Power Requirement: : AC 100 - 240V (50/60Hz)
    Power Consumption: : 10W (less than 0.5W in stand-by mode)
