MPN #CN1800S


Financing available
Free shipping in Canada. Conditions

15A bidirectional sequencer with SmartSequencingTM, SMP, EVS, and LiFT

Designed for Commercial A/V Installers, the CN-1800S combines robust control capabilities via SmartSequencing? Technology, advanced AC protection, and AC noise filtration.

The new CN-1800S is one of the first products to feature Furman?s SmartSequencing? technology, which allows large and complex A/V systems to be safely powered on and off with a simple press of a button or turn of a key, even by nontechnical personnel. SmartSequencing?s bidirectional communications between installed units enables a primary unit to control and sequence multiple secondary units, ensuring multizone electronic systems are powered on and off safely and dependably from a single control point across an entire installation. Units can be connected via current loop at runs of more than 1,000 feet with backwards compatibility with Furman?s legacy sequencers.

In addition, the CN-1800S offers robust control options, equipped with RS-232 ports and command sets for integration with control systems.
  • Surge Protection " Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available.
  • Noise Filtration " Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity.
  • Voltage Protection " Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods.
  • SmartSequencing? " SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key.
  • Diagnostic Lights " Diagnostic lights provide valuable system information including power quality, ?Protectection Ok? indicator, and Extreme Voltage indicator.
  • 15 Amp Output Current " 15 amp maximum current capacity with incorporated 15 amp thermal circuit breaker.
  • Remote Access (RS-232) " RS-232 compatibility & command set provide integration with control systems, open source and control programming.
  • Nine Total Outlets " The CN-1800S contains eight rear panel NEMA 5-15R outlets and one front panel NEMA 5-15R outlet.
  • AC Voltage Input Range 90-139VAC, 50/60Hz
  • Maximum AC Current Rating 15 amps (Thermal breaker)
  • AC Cord 3/14AWG, 10 feet, black, fixed, NEMA 5-15P plug

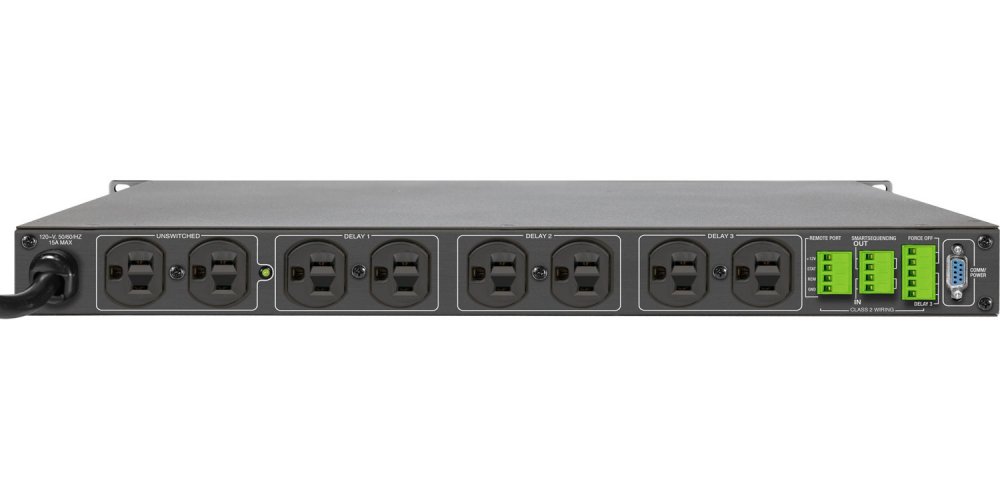

  • AC Receptacles Rear Panel Outlets 2 Unswitched NEMA 5 15R?s (1 duplex), 6 Sequenced NEMA 5-15R?s (3 duplexes each controlled by separate relay)
  • Front Panel One NEMA 5-15R Convenience Outlet, Unswitched
  • AC Surge Protection SMP
  • Spike Protection Mode Line to neutral, zero ground leakage
  • Spike Clamping Voltage 188VAC peak @ 6,000 volts/3,000 amps
  • Response Time 1 nanosecond
  • Maximum Surge Current 6,500 Amps
  • AC Undervoltage Protection EVS, 77VAC+/-3VAC
  • AC Overvoltage Protection EVS, 145VAC+/-5VAC
  • AC Overvoltage Reset Modes Manual and Auto-reset (configurable)
  • AC Filtering LiFT
  • Noise Attenuation Linear, 10dB @10KHz, 40dB@100KHz, 50dB@500KHz
  • Operating Temperature Range 5C (40F) to 40C (105F) degrees
  • Humidity Range <90% rH (Relative Humidity)
  • Key-switch Front panel, 3-position key-switch (On, Off, Remote)
  • Keys Included, 1 pair
  • Push-button Switch Front panel, hidden by security cover
  • Circuit Breaker Front panel, push-button, 15A Thermal Breaker

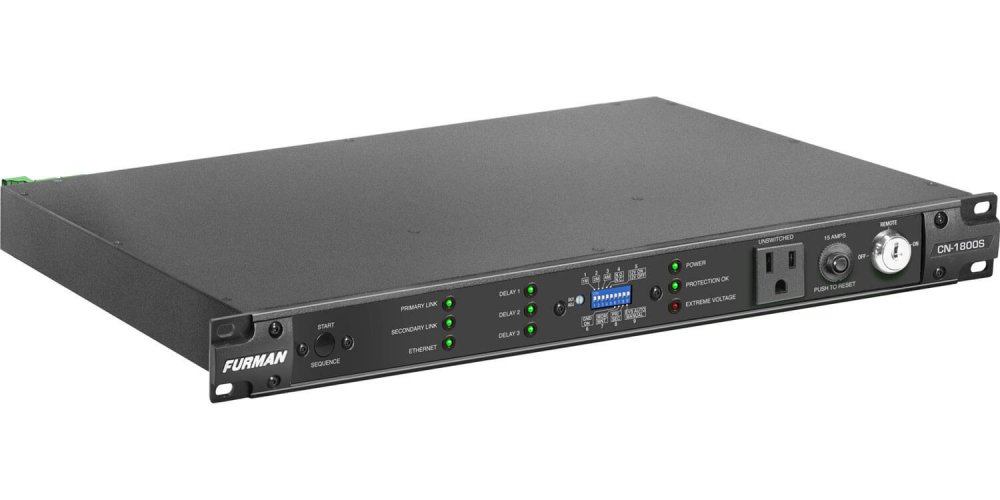

  • Front panel diagnostic indicators Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
  • Front Panel DIP Switches Front panel. Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
  • Potentiometer Front panel, hidden by security cover, fine tune delay adjust
  • Control/Status/Triggering (Rear Panel) Remote Terminal +5-30VDC In, 12VDC (12mA) Out
  • SmartSequencing Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop " 1000? nominal)
  • Remote Terminal Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
  • Force Off/Delay 3 Terminal Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
  • RS-232 Compatible Yes, DB-9 Connector
  • Voltmeter Available with RS-232, ± 2VAC accuracy
  • Ammeter Available with RS-232, ±1A accuracy
  • Power Consumption (No Load) 10 Watts
  • Safety Agency NRTL-C, RoHS Compliant
