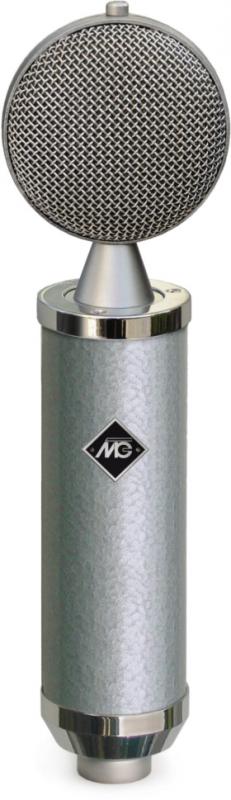

The Gefell CMV 563 / M 7S is a large-diaphragm tube condenser microphone with detachable capsule that includes PSU, elastic suspension cable & wood case



The Gefell CMV 563 / M 7S is a large-diaphragm tube condenser microphone with detachable capsule that includes PSU, elastic suspension cable & wood case

The new CMV 563 M7S is the original reissue of the vintage Gefell CMV 563. It has the typical warm, full-bodied sound of valve microphones that are preferred by vocalists and soloists.

The vacuum tube preamplifier is equipped with the EF 86 pentode working as a triode selected for its sonic characteristics.

The new N 61 power supply provides the operating voltage for the vacuum tube. It can be powered from AC mains with a primary voltage of 115 or 230 volts / 50 or 60 Hz.

The N 61 is equipped with an on/off switch, a 7-pin Tuchel connector that powers the microphone and a 3-pin XLR connector.

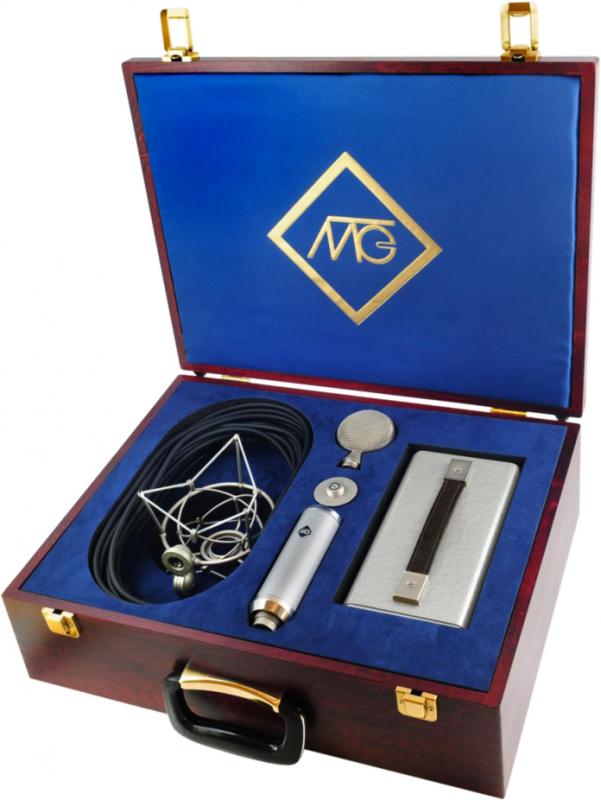

The CMV 563 M 7 S is packed in a mahogany colour wooden box and comes with power supply N 61, connection cable C 563.1, elastic suspension EA 92 and G/B adaptor for the use of vintage bayonet M 7, M 8, M 9 capsules.

Features

  • Original M7S gold plated PVC capsule
  • Modular capsule system
  • Cardioid polar pattern (M7)
  • Backwards compatible to vintage M7, M8, M9, M55K
  • Specifications

    Polar pattern: Cardioid
    Acoustic operating principle: Pressure gradient transducer
    Frequency range: 20 ... 20000 Hz Sensitivity at 1 kHz 17 mV/Pa
    Rated impedance: 200

    Equivalent loudness level
  • CCIR 468-4: 24 dB
  • Due to inherent noise: 16 dB-A
  • Signal-to-noise ratio CCIR: 70 dB
  • (re 1 Pa at 1 kHz ) A-bew.: 78 dB -A

  • Max SPL for THD 0.5 % (RL = 1 k): 115 dB
    Total dynamic range of the microphone preamplifier: 99 dB
    DC power supply: 120 V-
    Anode current: 1 mA-
    Heater voltage: 5,8 V-
    Heater current: 200 mA-
    Vacuum tube: EF 86
    Output connector microphone: 7-pin Tuchel
    Output connector power supply: 3-pin XLR connector
    Weight: 540 g
    Dimensions ( L x ΓΈ ): 216 mm x 42 mm

    Delivery
  • Tube condenser microphone CMV 563 / M 7 S
  • Power supply: N61
  • Connection cable: C 563.1
  • Elastic suspension: EA 92
  • Bayonet adaptor: G/B
  • In wooden briefcase L x W x H: 470 x 390 x 160 mm
  • Manufacturer Part Number : 2111141
