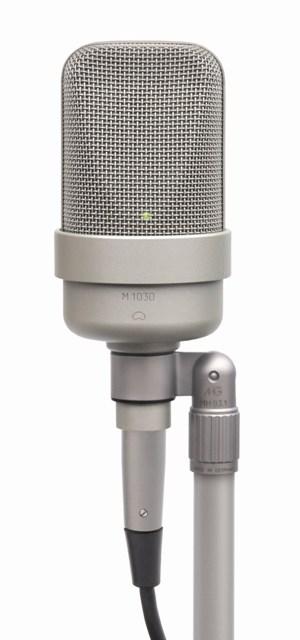

Gefell M1030

The studio condenser microphone M 1030 combines modern large diaphragm capsule technology with the latest in semiconductor circuit topology.

The size of the microphone housing is optimized with regard to the expectations of a large diaphragm microphone for studio applications.

The microphone is specifically designed to meet the needs of professional and semi-professional users whodemand the highest performance. The microphones are ideally suited for universal miking applications in broadcast and sound studios. Applications include vocalists, announcers, dialog pickup and as spot microphones forrecording guitars, keyboard, percussion, wind and string instruments.

The pick-up pattern is perpendicular to the direction of the microphone axis (side addressed). The model number and pick-up pattern symbol mark the front of the microphone. The green lightemittingdiode (LED) inside the protection grid operates as optical ready indicator.

The condenser capsule exhibits a smooth frequency response with a slight presence boost in the 8 to 14 kHz range. The polar response exhibits an exceptionally high degree of rejection for sounds impinging from the rear (cardioid) or sides (super-cardioid) of the microphone. The electronic impedance converter uses a newly perfected circuit topology. This design reduces the noise floor to an extremely low level while also raising the maximum output capability. As a result, this microphone have a clean, distortion free sound over an extremely wide dynamic range. RFI susceptibility is very low.

The microphone capsule and electronics are elastically suspended inside the compact metalhousing. This reduces the sensitivity to mechanical impact and structure born noise.

The microphone stand holder MH 93.1 can be exchanged for an elastic suspension EA 92 with the adaptor A 93 to further attenuate noise in extreme situations. The M 1030 connect to the microphone cable with a standard 3-pin XLR plug. Powering must be provided by an external 48 V phantom supply according to DIN 45596 and IEC 268-15.

The microphone is finished in satin matt.
  • extreme dynamic range
  • noise floor 7 dB-A
  • large diaphragm capsule
  • polar pattern cardioid
  • universal applications
  • advanced circuit design
  • transformerless output
  • internal elastic suspension
  • optical ready indicator
  • Specifications
    Polar pattern :

    Acoustic operating principle :
    Pressure gradient transducer

    Frequency range : 40...20000 Hz

    Sensitivity at 1 kHz : 21 mV/Pa

    Output impedance : 100

    Noise level :
    CCIR 468 - 4 : 13 dB
    DIN EN 60651 : 7 dB

    Signal-to-noise ratio (re 1 Pa at 1 kHz) :
    CCIR - weighted : 81 dB
    A - weighted : 87 dB

    Max. SPL for K < 0,5% :
    142 dB

    Max. output level :
    RL = 1 k : 17 dBu
    RL = 10 k : 18 dBu

    Dynamic range of electronics :
    135 dB

    Current consumption ( P 48, DIN 45596, IEC 268 - 15 )
    3,6 mA

    Output connector :
    3-pin XLR connector,
    goldplated contacs

    Weight without MH 93.1 :
    355 g

    Dimensions ( L x Ø ) :
    145 mm x 66 mm

    Finish :
    satin matt
    Price *
    Free shipping in Canada. Conditions
    1 Day
    3 Days
    5 Days
    12 Days
    28 Days
    Additional information
    For more information about the M1030, please visit the website of Gefell
