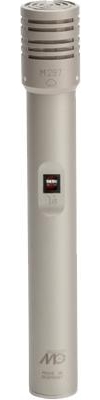

The Gefell M297 is a wide cardioid condenser microphone with a -10 dB attenuation switch, and a sensitivity reduction switch for low frequencies.
Studio Condenser Microphone Wide Cardioid
lt is possible to activate a 10 dB-attenuator pad for handling very high sound pressure levels. A sensitivity reduction for low frequencies can be utilized to suppress the proximity effect. The two switches are into the middle of the preamplifiers.
The microphone is equipped with a standard 3-pin XLR connector fitting to a microphone cable, e.g. C70. The operation voltage is provided by 48 V phantom powering, according to the international standards DIN 45596 and IEC 268-15.
They are available in a satin nickel or a black matt finish.
Modern small-diaphragm capsule
Directional characteristic: Cardioid
Miniature condenser microphone: M 300
Acoustic operation: Pressure gradient
Frequency response: 40 ... 18000 Hz
Field operating factor at 1 kHz: 12 mV / Pa
Rated impedance: 100
CCIR 468-4: 26 dBDIN EN 60651: 16 dB - A
Noise distance (related to 1 Pa at 1 kHz):
CCIR rated: 68 dBA-rated: 78 dB
Boundary sound pressure level for 0.5% harmonic distortion: 147 dB
Dynamic range of the microphone amplifier: 131 dB
Current consumption (P 48, DIN 45596, IEC 268-15): 3.3 mA
End fittings: XLR connector 3-pin, gold-plated contacts
Mass: 126 g
Dimensions (L x ø): 130 x 21 mm
Manufacturer Part Number : 2111122
