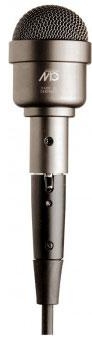

Gefell M960

The M 960 omnidirectional studio condenser microphone combines well-proven large diaphragm capsule technology with the latest in semiconductor circuit topology.

It is specifically designed to meet the needs of professional and semi-professional users who demand the highest performance. The M 960 is ideally suited for miking applications in broadcast and sound studios. Applications include recordings outside the diffuse-field distance during choir or orchestra performances, e.g. in concert halls, churches and theatres.

The pick-up pattern of the microphone is axial.

The condenser capsule is designed for a diffuse-field. It exhibits a presence boost in the 4 to 12 kHz range.

The electronic impedance converter uses a newly perfected circuit topology. This design reduces the noise floor to an extremely low level while also raising the maximum output capability. As a result, this microphone has a clean, distortion-free sound over an extremely wide dynamic range.

The M 960 is either mounted by means of the microphone stand holder MH 93.1, which is included or the optional swivel mount MH 93. If necessary the microphone holder can be exchanged for the elastic suspension EH 93 to further attenuate noise (in extreme situations). The M 960 connects to the microphone cable with a standard 3-pin XLR plug. Powering must be provided by an external 48 V phantom supply according to DIN EN 61938 and IEC 1938.

The microphone is finished in dark bronce.
  • extreme dynamic range
  • low noise floor
  • large membrane capsule
  • advanced circuit design
  • transformerless output
  • high sensitivity
  • compact design
  • Specifications
    Polar pattern:
    Omni-directional for diffuse field

    Acoustic operating principle:
    Pressure transducer

    Frequency range, free-field:
    20 . . . 20000 Hz

    Sensitivity at 1 kHz:
    16 mV/Pa

    Output impedance:

    Noise level:
    CCIR 468 - 4: 19 dB
    DIN EN 60651: 9 dB - A

    Signal-to-noise ratio ( re at 1 Pa at 1 kHz ):
    CCIR - weighted: 75 dB
    A - weighted: 85 dB

    Max. SPL for THD < 0,5%:
    145 dB

    Max. Output level:
    RL = 1 k: 17 dBu
    RL = 10 k: 18 dBu

    Dynamic range of electronics:
    135 dB

    Current consumption ( P 48, DIN 45596, IEC 268-15 ):
    3,6 mA

    Output connector:
    3-pin XLR connector
    gold-plated contacts

    Weight without MH 93.1:
    220 g

    Dimensions ( L x Ø ):
    90 mm x 45 mm

    dark bronce
    Price *
    Free shipping in Canada. Conditions
    Additional information
    For more information about the M960, please visit the website of Gefell
